Specifications
material :
SUS304, SUS316L
voltage :
220V/380V
core components :
Motor
Heating method :
Steam or electricity
Motor Type :
pneumatic motor
warranty :
1 Year
video outgoing-inspection :
Provided
machinery test report :
Provided
Key word 02 :
perfume mixing machine with chiller
material processed :
Chemicals
Capacity :
100 L, 50L-5000L can be customized
Feature :
High Efficiency
product type :
Cosmetic
key selling points :
High Productivity
MOQ :
1
Supply Ability :
10000 set
range of spindle speed(r.p.m) :
0 - 90 r.p.m
Motor :
Explosion-proof Motor
Brand Name :
Cosmati
Function :
Mixing Cooling Perfume Raw Material
additional capabilities :
Milling
Power (kW) :
15 kW
Delivery Time :
7 work days
Product name :
Cosmetics production equipment, perfume production equipment
Payment Terms :
TT
mixer type :
Agitator
Configuration :
Vertical
dimension(l*w*h) :
Customised
Price :
R$23,481.32-31,308.42
weight (kg) :
300
Keyword :
perfume making machine
Place of Origin :
Guangdong,China
Usage :
Chemical Liquid perfume
Material :
Stainless Steel 316L
Packaging Details :
wooden cases
Description
Entry Level Perfume Manufacturing Machine Parfum Filtration Machine Mixer Tank Fragrance Oil Filling and Packing Line

Product Introduction

The Perfume Freezing Filtration Machine is designed for cooling, clarification and filtration of perfume, fragrance and other low-viscosity cosmetic liquids.

During perfume production, low-temperature treatment helps separate waxes, suspended particles and other impurities that may affect product clarity. After chilling, the liquid is transferred through the filtration system by a pneumatic diaphragm pump to obtain a cleaner and clearer finished product.

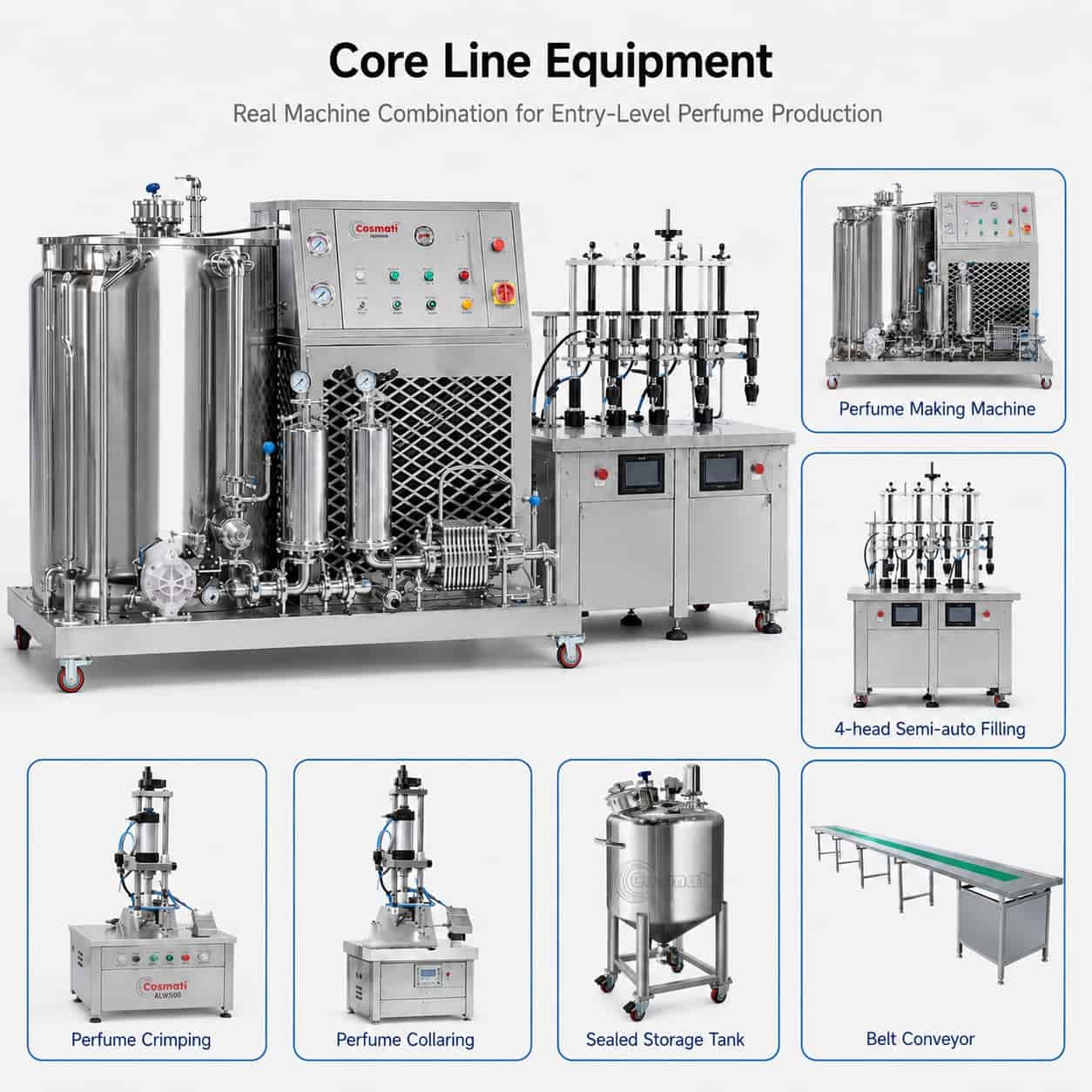

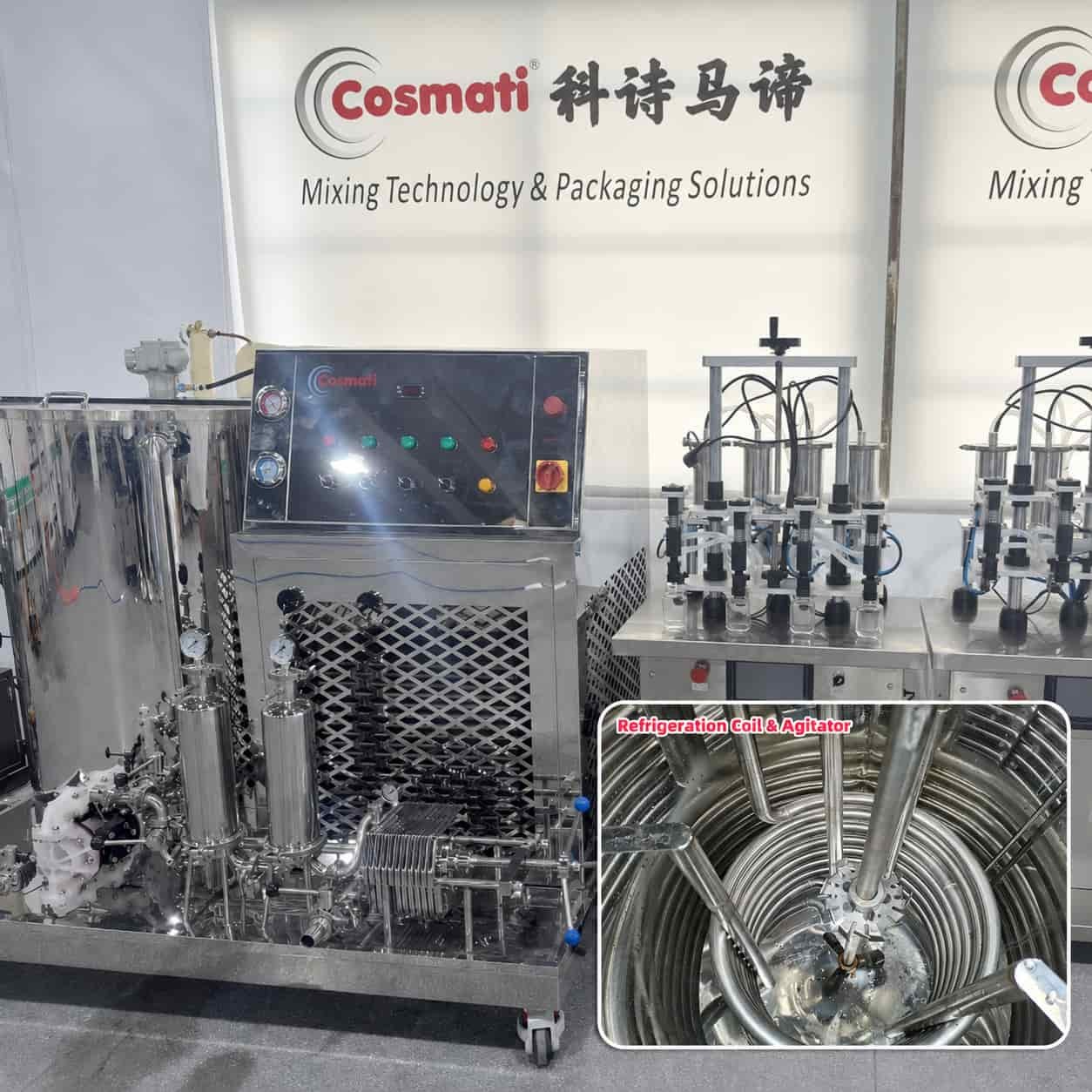

The system integrates a stainless steel cooling tank, refrigeration unit, filtration units, pneumatic diaphragm pump, sanitary piping and electrical controls on a compact mobile frame. It is suitable for perfume factories, fragrance manufacturers and cosmetic production facilities requiring controlled cooling and fine filtration.

Features

  1. Integrated cooling and filtration system designed specifically for perfume clarification.
  2. Stainless steel insulated cooling tank helps maintain stable low-temperature processing conditions.
  3. Refrigeration system provides controlled cooling according to the perfume filtration process.
  4. Pneumatic diaphragm pump provides stable liquid transfer through the filtration system.
  5. Multiple filtration housings support fine filtration of suspended particles and impurities.
  6. Sanitary stainless steel piping and quick-connect fittings provide convenient disassembly and cleaning.
  7. Polypropylene microporous filtration media can be selected according to required filtration accuracy.
  8. Mobile stainless steel frame allows convenient movement and flexible installation inside the production area.
Technical Data
Model
Voltage
Refrigerating Fluid
Filtration Pressure
CM-XSJ
380V/50Hz
R22
0.2Mpa
Freezing Capacity
Freezing Temperature
Air Pressure
Filtration Precision
Standard 100/200/300/500L/1T, customized
-5~-15℃
0.5-0.6Mpa
0.2 um
Application
Perfume Freezing Filtration Machine Fragrance Oil Cooling Clarification System
Company Profile
Perfume Freezing Filtration Machine Fragrance Oil Cooling Clarification System
Perfume Freezing Filtration Machine Fragrance Oil Cooling Clarification System
Perfume Freezing Filtration Machine Fragrance Oil Cooling Clarification System
Perfume Freezing Filtration Machine Fragrance Oil Cooling Clarification System
Perfume Freezing Filtration Machine Fragrance Oil Cooling Clarification System
Perfume Freezing Filtration Machine Fragrance Oil Cooling Clarification System
Perfume Freezing Filtration Machine Fragrance Oil Cooling Clarification System
Perfume Freezing Filtration Machine Fragrance Oil Cooling Clarification System


Trade show participation
Perfume Freezing Filtration Machine Fragrance Oil Cooling Clarification System
Packaging & shipping specifications
Perfume Freezing Filtration Machine Fragrance Oil Cooling Clarification System

FAQ

Q1: What is this perfume filtration machine mainly used for?
A: It is used for cooling, clarification and filtration of perfume and fragrance liquids before the final filling process.

Q2: Why does perfume need low-temperature filtration?
A: Cooling helps certain waxes, suspended particles and impurities separate from the perfume so they can be removed during filtration, improving product clarity.

Q3: Does this machine fill perfume into bottles?
A: No. The standard machine shown is a freezing and filtration system. Perfume filling, crimping and packaging machines are separate equipment.

Q4: What liquids can the machine process?
A: It is mainly suitable for perfume, fragrance, alcohol-based cosmetic liquids and other low-viscosity liquids requiring cooling and fine filtration.

Q5: What type of pump is used?
A: The system uses a pneumatic diaphragm pump to transfer liquid through the filtration process.
