Specifications
Price :
$8,500-9,000
Delivery Time :
7 work days
Supply Ability :
10000 set
weight (kg) :
850
Automatic Grade :
Fully-Automatic
Payment Terms :
TT
Packaging Details :
wooden cases
Machine Type :
Mixing
MOQ :
1
Warranty :
1 Year
Description

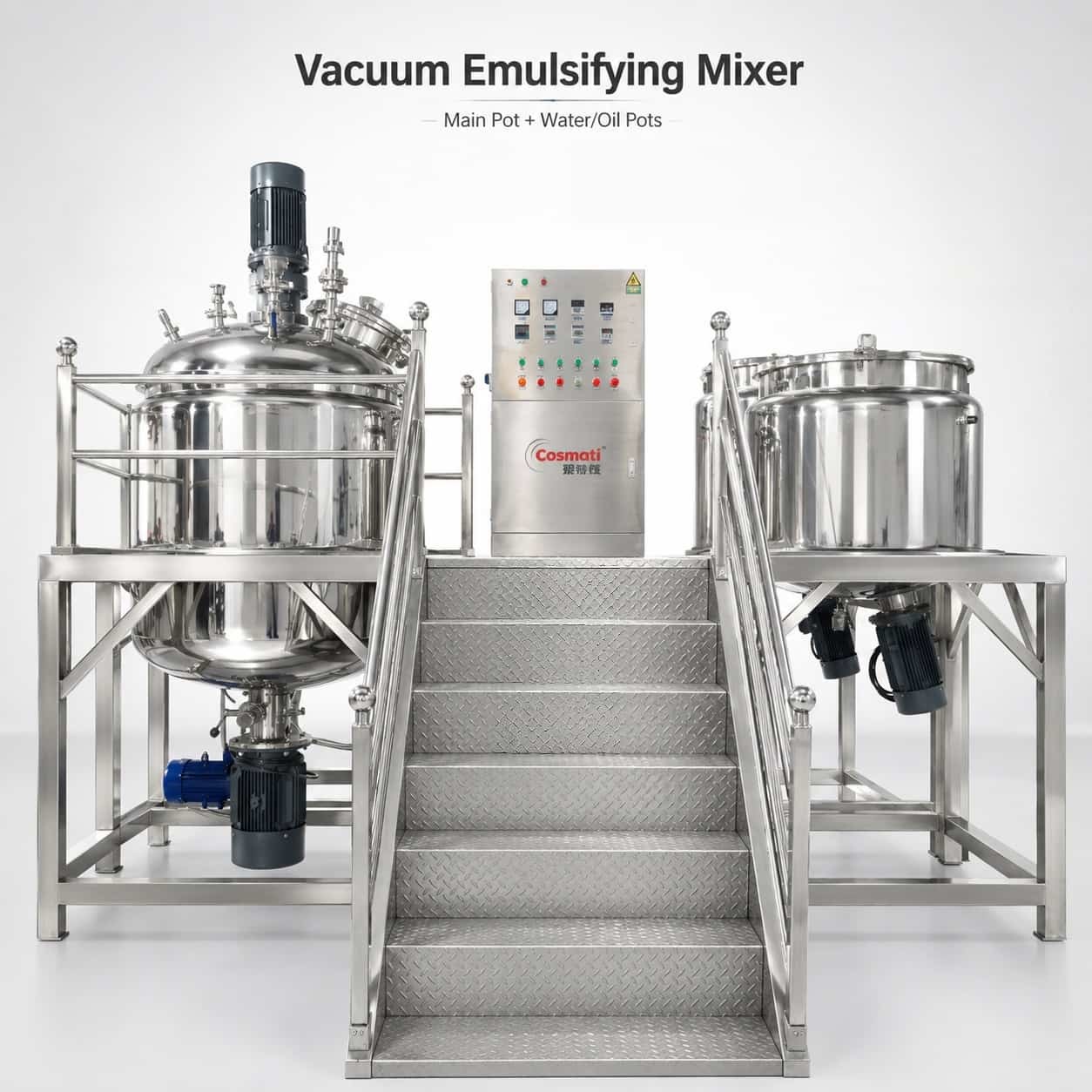

500L Industry High Shear Homogenizer Fixed Type Double Jacket Vacuum Emulsifier Mixer

Introduction
The fixed type vacuum emulsifier can heat or cool the material according to the process requirements. The heating method can be
steam or electric heating according to the customer's requirements. The advanced electronic control system adopts PLC control and is
equipped with a true color touch screen to comprehensively monitor the material temperature and stir. and homogenization speed.

Features

1. Designed and manufactured in accordance with GMP standards (the overall support of the equipment is stainless steel, and the pot body is polished 300U).
2. 316L material is used for material contact parts.
3. The bearing adopts Japanese NSK bearing.
4. Low power consumption, strong mechanical protection function, constant torque work make the mechanical operation more stable.
5. The water circulation mechanical seal has good sealing performance and long service life. The homogenizer can work continuously for 24 hours.
6. The relative movement of the upper wall scraping stirring paddle and the fixed paddle makes the material agitated more fullyand evenly.
7. Many safety protection functions make production safer.

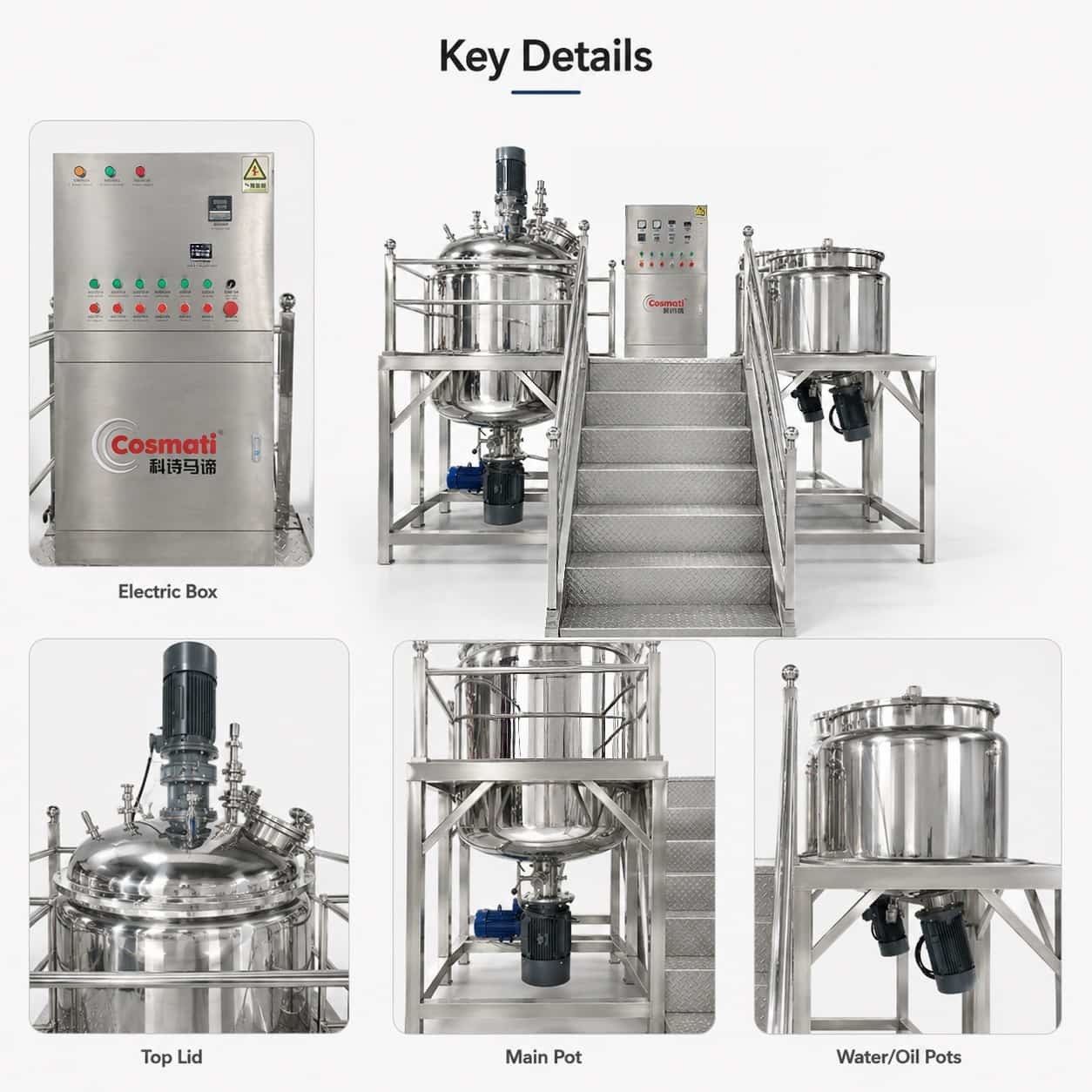

Main pot
Working volume:500L； Full volume:540L

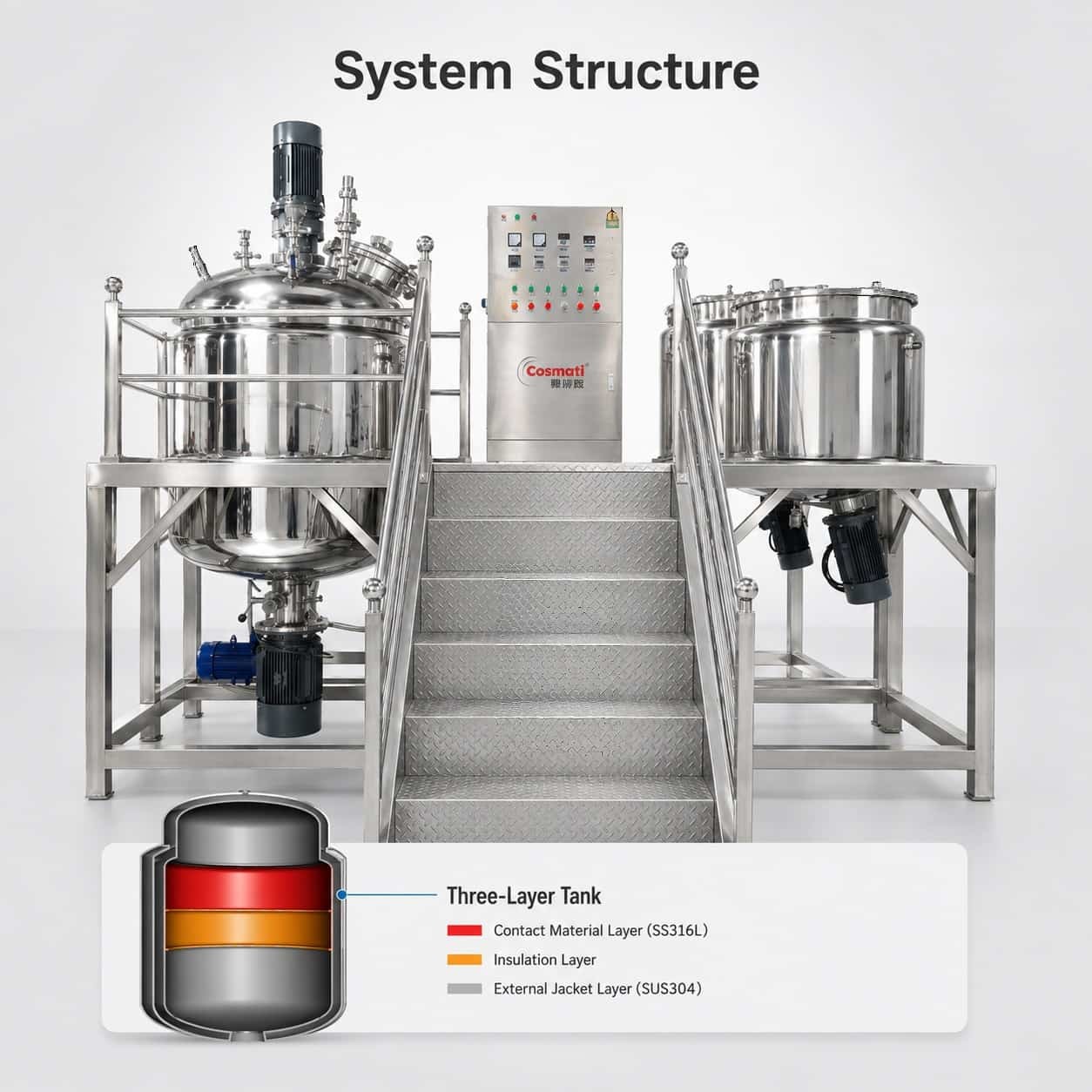

Structure
1. Three-layer stainless steel, tank can be heated and cooled, and it has vacuum functions.
2. Stairs with platform
3. Top one-way mixing with wall scraper, bottom high-speed shearing homogenizer
4. Button control
5.Delta dual frequency conversion
6. Electric heating
Inner layer
Cylinder body: material 316L; wall thickness: 6mm
Jacket layer
Material:304; wall thickness: 5mm
Outer layer
Cylinder: material SUS304; wall thickness: 2mm
Voltage
3P/380V/50Hz

Factory profile
500L Industrial Fixed Vacuum Emulsifier Mixer High Shear Homogenizing Machine

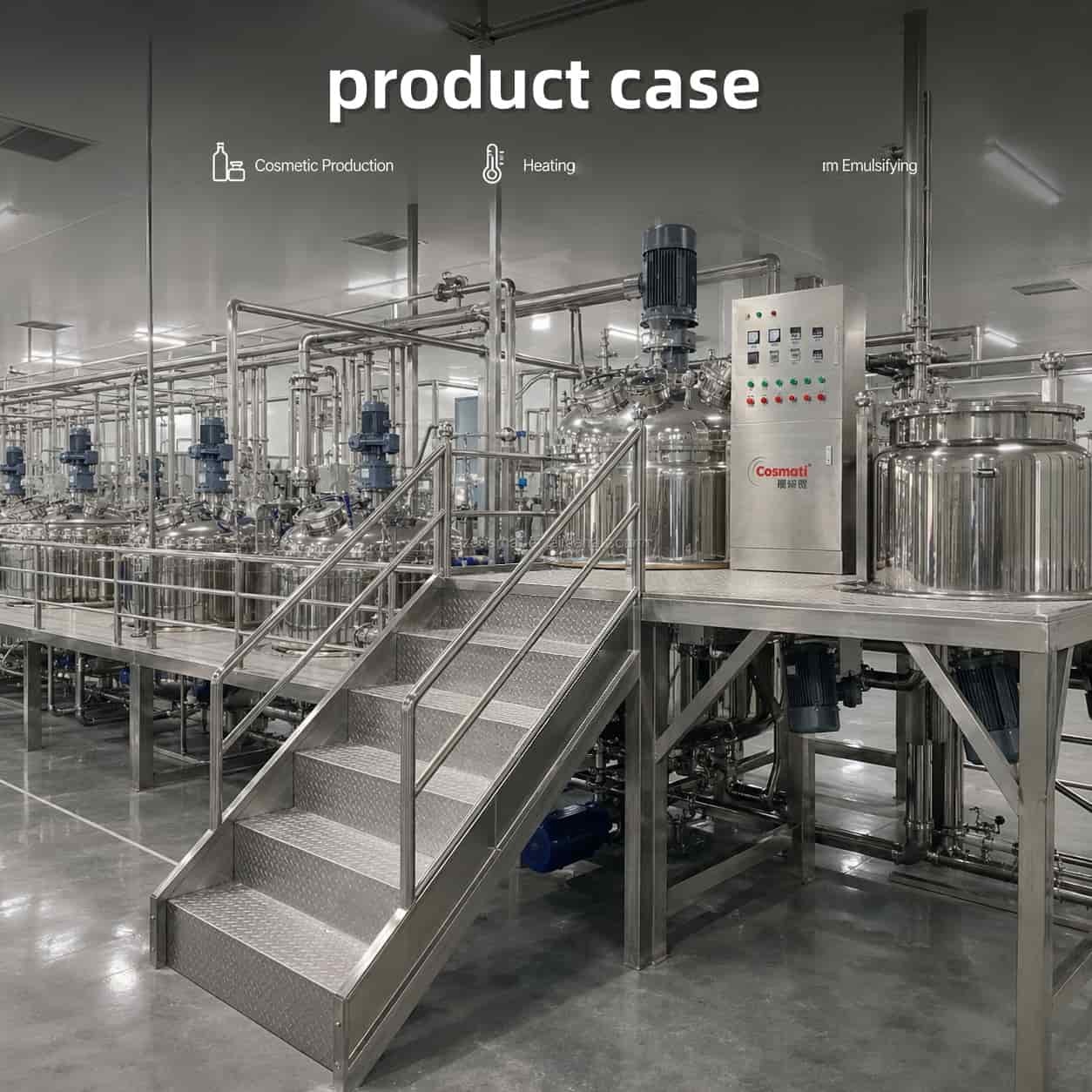

Engineer case
500L Industrial Fixed Vacuum Emulsifier Mixer High Shear Homogenizing Machine
500L Industrial Fixed Vacuum Emulsifier Mixer High Shear Homogenizing Machine
500L Industrial Fixed Vacuum Emulsifier Mixer High Shear Homogenizing Machine

Trade show participation
500L Industrial Fixed Vacuum Emulsifier Mixer High Shear Homogenizing Machine
Packaging & shipping specifications
500L Industrial Fixed Vacuum Emulsifier Mixer High Shear Homogenizing Machine

Application

500L Industrial Fixed Vacuum Emulsifier Mixer High Shear Homogenizing Machine

FAQ

Q1: What products can this vacuum emulsifying mixer process?
A: It is suitable for cream, lotion, ointment, gel, shampoo, conditioner and other cosmetic or daily chemical liquid and paste products.

Q2: What is the function of the water and oil pots?
A: The auxiliary water and oil pots are used for pre-mixing and pre-heating different raw materials before transferring them into the main emulsifying pot.

Q3: What materials are used for the tank?
A: Product-contact parts are made of SS316L stainless steel, while the jacket and external structure use SUS304 stainless steel.

Q4: What heating methods are available?
A: The system can be configured with electric heating or steam heating according to the customer’s production conditions.

Q5: Can the machine mix, homogenize and work under vacuum?
A: Yes. The main pot integrates mixing, homogenizing and vacuum functions to help achieve more uniform emulsification and reduce air bubbles during processing.
