Vacuum Emulsifier Mixer 5-5000L Paste Cream Homogenizer Mixing Tank
Vacuum Emulsifier Mixer 5-5000L Paste Cream Homogenizer Mixing Tank
Vacuum Emulsifier Mixer 5-5000L Paste Cream Homogenizer Mixing Tank
Vacuum Emulsifier Mixer 5-5000L Paste Cream Homogenizer Mixing Tank
Vacuum Emulsifier Mixer 5-5000L Paste Cream Homogenizer Mixing Tank
Vacuum Emulsifier Mixer 5-5000L Paste Cream Homogenizer Mixing Tank
Vacuum Emulsifier Mixer 5-5000L Paste Cream Homogenizer Mixing Tank
Vacuum Emulsifier Mixer 5-5000L Paste Cream Homogenizer Mixing Tank
Specifications
video outgoing-inspection :
Provided
Delivery Time :
7 work days
weight (kg) :
250
Mixer Type :
Double Direction Mixing
machinery test report :
Provided
Supply Ability :
10000 set
Brand Name :
Cosmati
key selling points :
High Productivity
Heating methord :
Steam or electricity
Price :
€3,981.88-4,866.74
Product name :
Stainless steel vacuum homogenizing stirring emulsifying tank
Material :
Stainless Steel 304 / SUS316L
Stirrer type :
Paddle Mixer
Packaging Details :
wooden cases
Capacity :
5L-5000L
core components :
Pressure Vessel, Pump, Gear, Motor, PLC
Keyword :
vacuum homogenizing emulsifying tank
Application :
Cream lotion ointment toothpaste
Payment Terms :
TT
Warranty :
1 Year
MOQ :
1
Function :
High Shear Homogenizer
Description
Hot Sale 50 Kg 100 200 300 500 1000 1500 2000 3000 5000 Litre Paste Mixing Tank Vacuum Emulsifier Mixer Homogenizer

Introduction

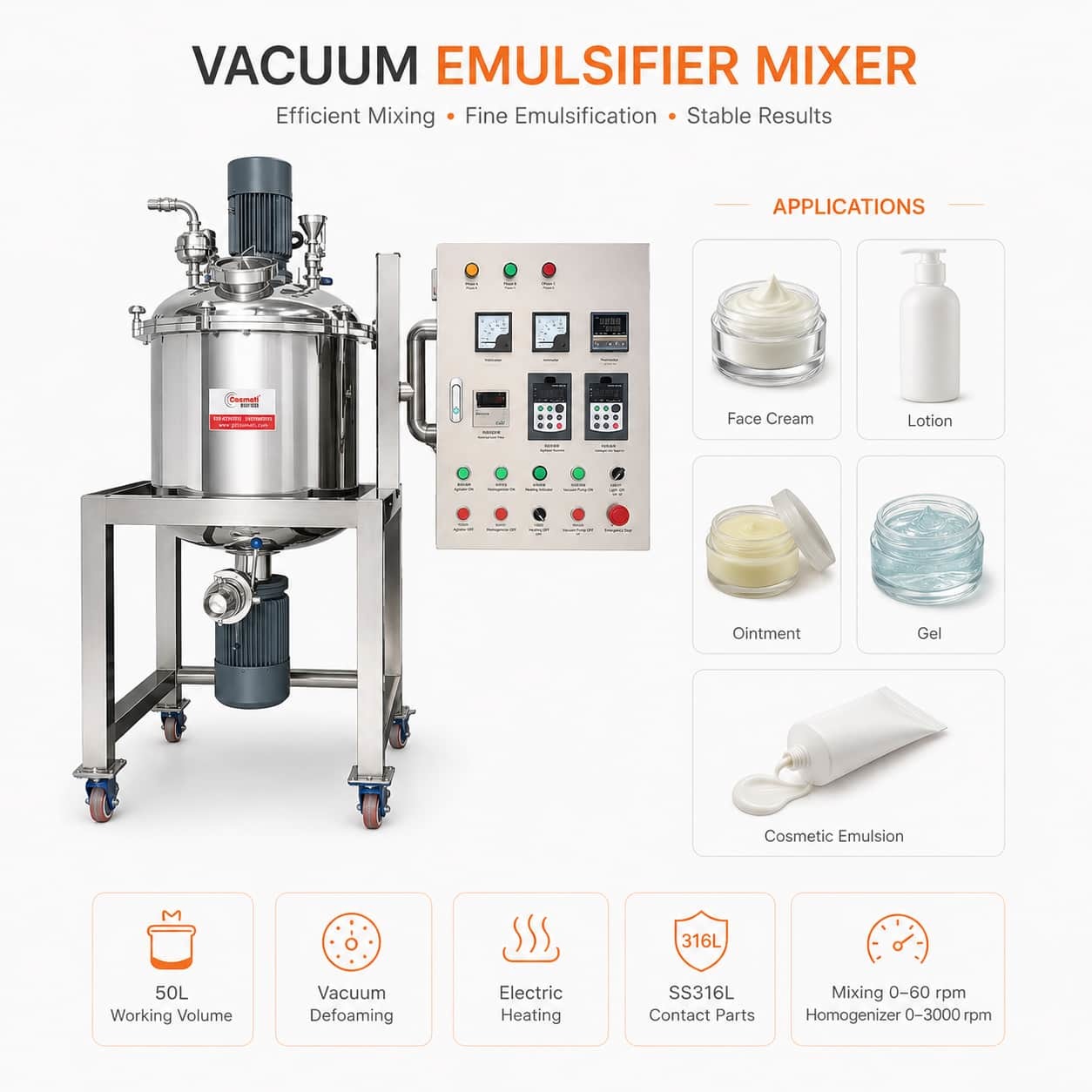

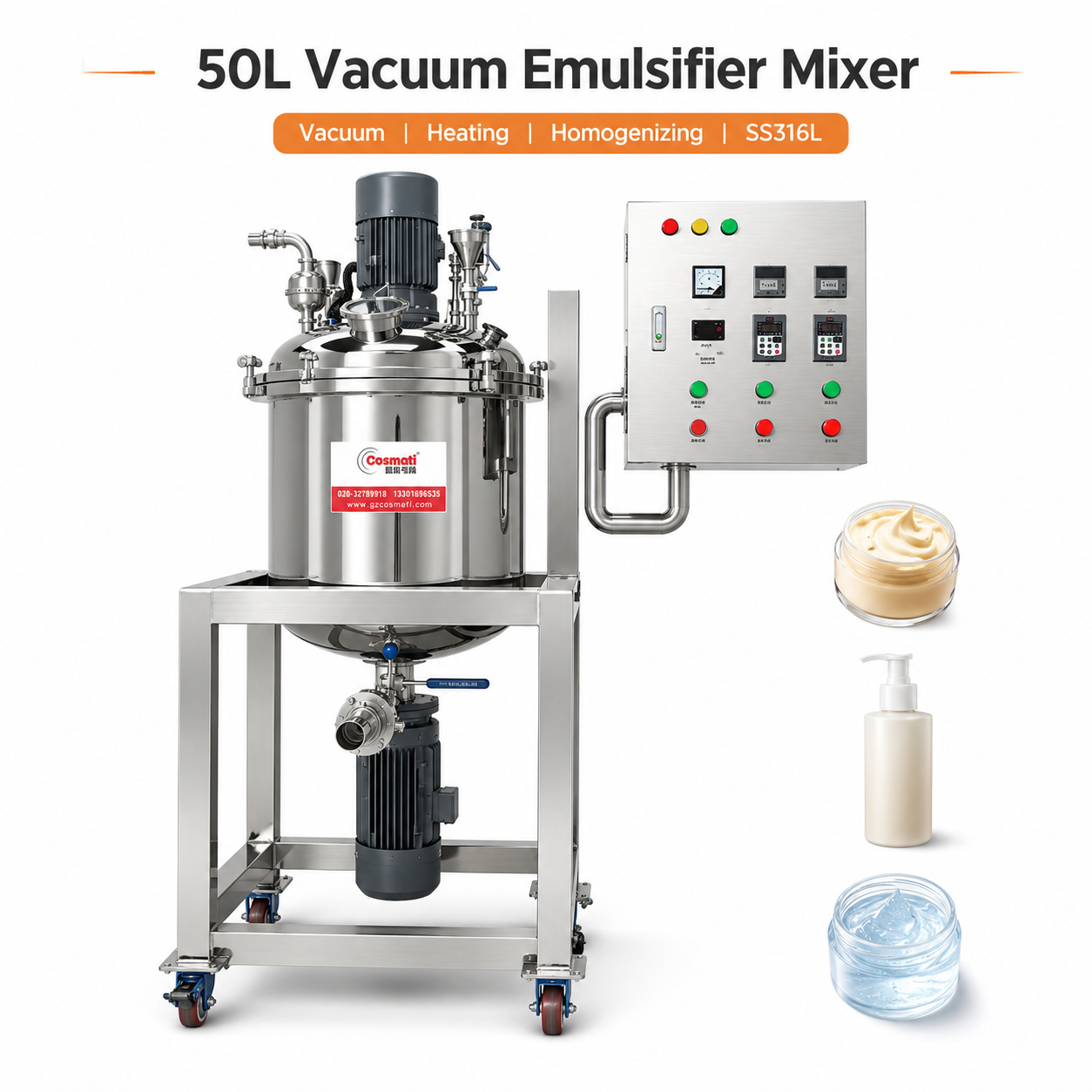

The 50L Vacuum Emulsifying Mixer Homogenizer is designed for mixing, emulsifying, homogenizing, heating, cooling and vacuum deaeration of cosmetic and personal care products. The main tank features a three-layer stainless steel structure with SS316L contact parts, a PTFE wall scraper, low-speed mixing at 0–60 rpm and a high-speed homogenizer up to 3000 rpm, helping achieve uniform texture and fine emulsification while reducing air bubbles during processing. The machine has a 50L working volume and approximately 60L total volume, supports electric heating and cooling, dual frequency control, button operation and convenient bottom discharge. Its compact stainless steel structure is easy to clean and suitable for small and medium batch production. It can be widely used for face cream, lotion, gel, ointment, cosmetic emulsion, hair care products and other medium- to high-viscosity materials. Standard power supply is 3P/380V/50Hz, and voltage, heating method, control system and other configurations can be customized according to production requirements.


Features

1. Vacuum defoaming function can make the materials meet the requirement of being aseptic.
2. The main boiler lid adopts the lifting system, it is easy to clean and the cleaning effect is more obvious, the main boiler
adopts a tilting discharge.
3. The main tank can be heated and cooled with an electric heating function.
4. Adopts imported electric appliances which can meet international standards.
5. Contacted parts are made of SS316L, the wall scraper is made of PTFE.

Main pot
Working volume:50L； Full volume:60L



Structure
1. Three-layer stainless steel, tank can be heated and cooled, and it has vacuum functions.
2. Movable type
3. Top one-way mixing with wall scraper, bottom high-speed shearing homogenizer
4. Button control
5.Delta dual frequency conversion
6. Electric heating
Inner layer
Cylinder body: material 316L; wall thickness: 5mm
Jacket layer
Material:304; wall thickness: 4mm
Outer layer
Cylinder: material SUS304; wall thickness: 2mm
Voltage
3P/380V/50Hz
Factory profile
Vacuum Emulsifier Mixer 5-5000L Paste Cream Homogenizer Mixing Tank


Engineer case
Vacuum Emulsifier Mixer 5-5000L Paste Cream Homogenizer Mixing Tank
Vacuum Emulsifier Mixer 5-5000L Paste Cream Homogenizer Mixing Tank
Vacuum Emulsifier Mixer 5-5000L Paste Cream Homogenizer Mixing Tank

Trade show participation
Vacuum Emulsifier Mixer 5-5000L Paste Cream Homogenizer Mixing Tank
Packaging & shipping specifications
Vacuum Emulsifier Mixer 5-5000L Paste Cream Homogenizer Mixing Tank

Application

Vacuum Emulsifier Mixer 5-5000L Paste Cream Homogenizer Mixing Tank
FAQ
1. Can you customize the volume for the vacuum emulsifier?
Yes, we can do it. But it will take much more time to customize it. The production time for standard machine is about 30 working days.

2. Which parts can you customize?
Such as mixer/homogenizer motor, mixing paddle, layer, heating method, control type(PLC/Button), electric box, volume, etc. It depends on your requirements.

3. What functions does the machine have?
Such as vacuum defoaming, heating, cooling, mixing, emulsifying, high shear homogenizing, lifting, auto discharge, auto
cleaning,etc.

4. What products can this machine produce?
Cosmetics: face cream, lotion, serum, body butter, liquid foundation, sunscreen cream, etc.
Food: mayonnaise, ketchup, source, etc.
Daily chemical: shampoo, conditioner, hair essential oil, toothpaste, liquid soap, detergent, etc.

5. What is the function of oil/water tank?
Good question! Its function is pre-heating/pre-process. The semi-finished products will be transferred to the main tank for
mixing. If you want to buy vacuum emulsifier with small volume, so we don’t recommend you to equip them.
