Liquid Soap Double Jacket Mixing Tank Stainless Steel Shampoo Detergent Mixer
Liquid Soap Double Jacket Mixing Tank Stainless Steel Shampoo Detergent Mixer
Liquid Soap Double Jacket Mixing Tank Stainless Steel Shampoo Detergent Mixer
Liquid Soap Double Jacket Mixing Tank Stainless Steel Shampoo Detergent Mixer
Liquid Soap Double Jacket Mixing Tank Stainless Steel Shampoo Detergent Mixer
Liquid Soap Double Jacket Mixing Tank Stainless Steel Shampoo Detergent Mixer
Liquid Soap Double Jacket Mixing Tank Stainless Steel Shampoo Detergent Mixer
Liquid Soap Double Jacket Mixing Tank Stainless Steel Shampoo Detergent Mixer
Specifications
MOQ :
1
material processed :
Chemicals, Food
Capacity :
500 L, 50-10000L
Mixer Speed :
0-63rpm
Application Area :
Chemical
Packaging Details :
wooden cases
Operating type :
Continuous Operating
Core Components :
Motor, PLC, Engine
product type :
self care/ home care
key selling points :
Automatic
range of spindle speed(r.p.m) :
0 - 63 r.p.m
Type :
Fixed Type
material :
SUS304, SUS304L, SUS316L
voltage :
220V/380V, Customized
core components :
Motor, PLC
Homogenizing Speed :
0-3000 R/Min
Motor Type :
DC Motor
warranty :
1 Year
video outgoing-inspection :
Provided
Delivery Time :
7 work days
Price :
$3,000-8,500
machinery test report :
Provided
Electric Cabinet :
Bottons or Touch Screen (Optional)
Supply Ability :
10000 set
weight (kg) :
850
Mixing Drum Shape :
Drum
Payment Terms :
TT
additional capabilities :
Granulating,Drying,COATING,Mixing
Power (kW) :
6.3 kW
Place of Origin :
Guangzhou
dimension(l*w*h) :
Customized
Layout Type :
Verticle
Brand Name :
COSMATI
mixer type :
Agitator,Homogenizer
Configuration :
Vertical
Description
Stainless Steel Double Jacket Mixing Tank Liquid Soap Making Machine Shampoo Laundry Detergent Industrial Liquid Mixer

Product Introduction

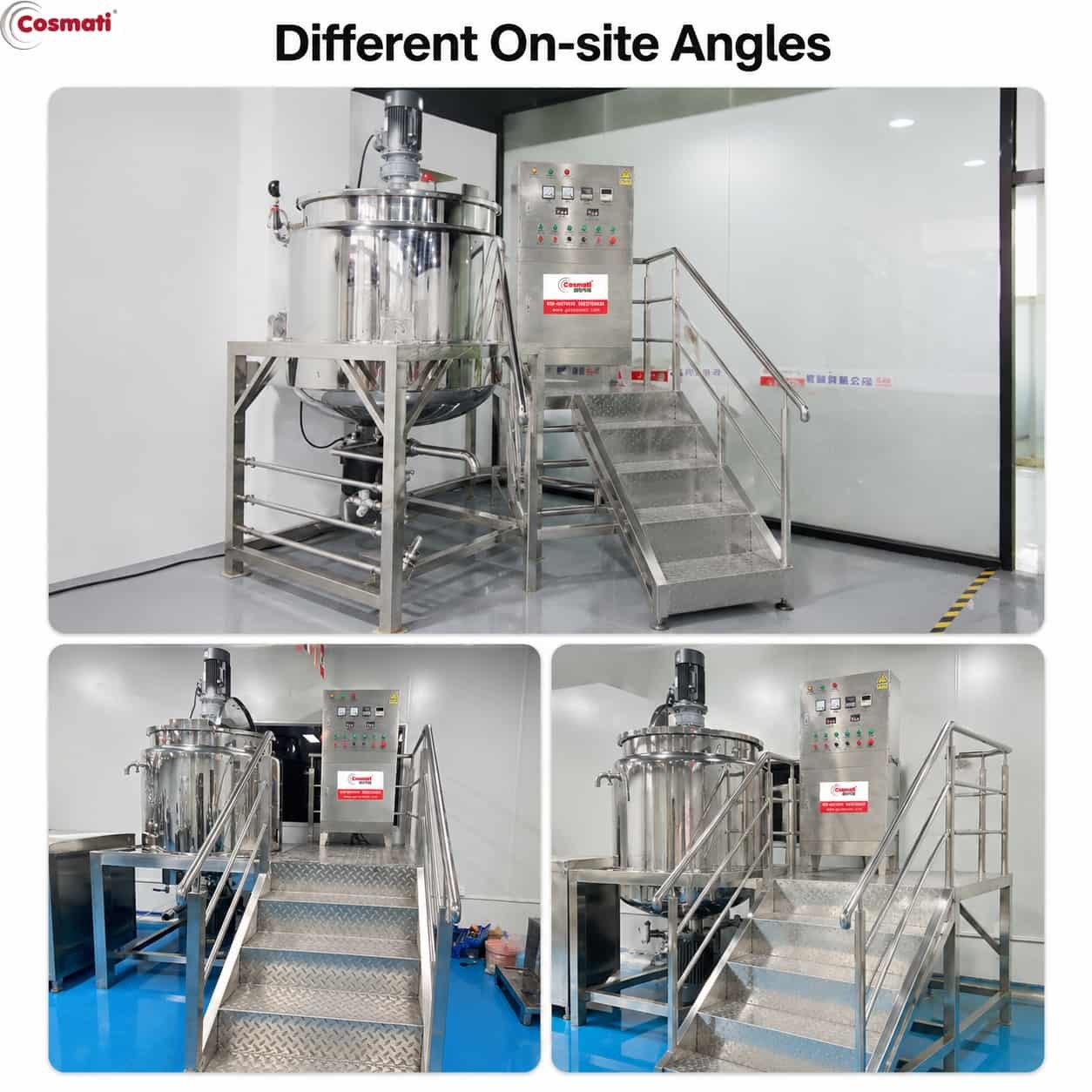

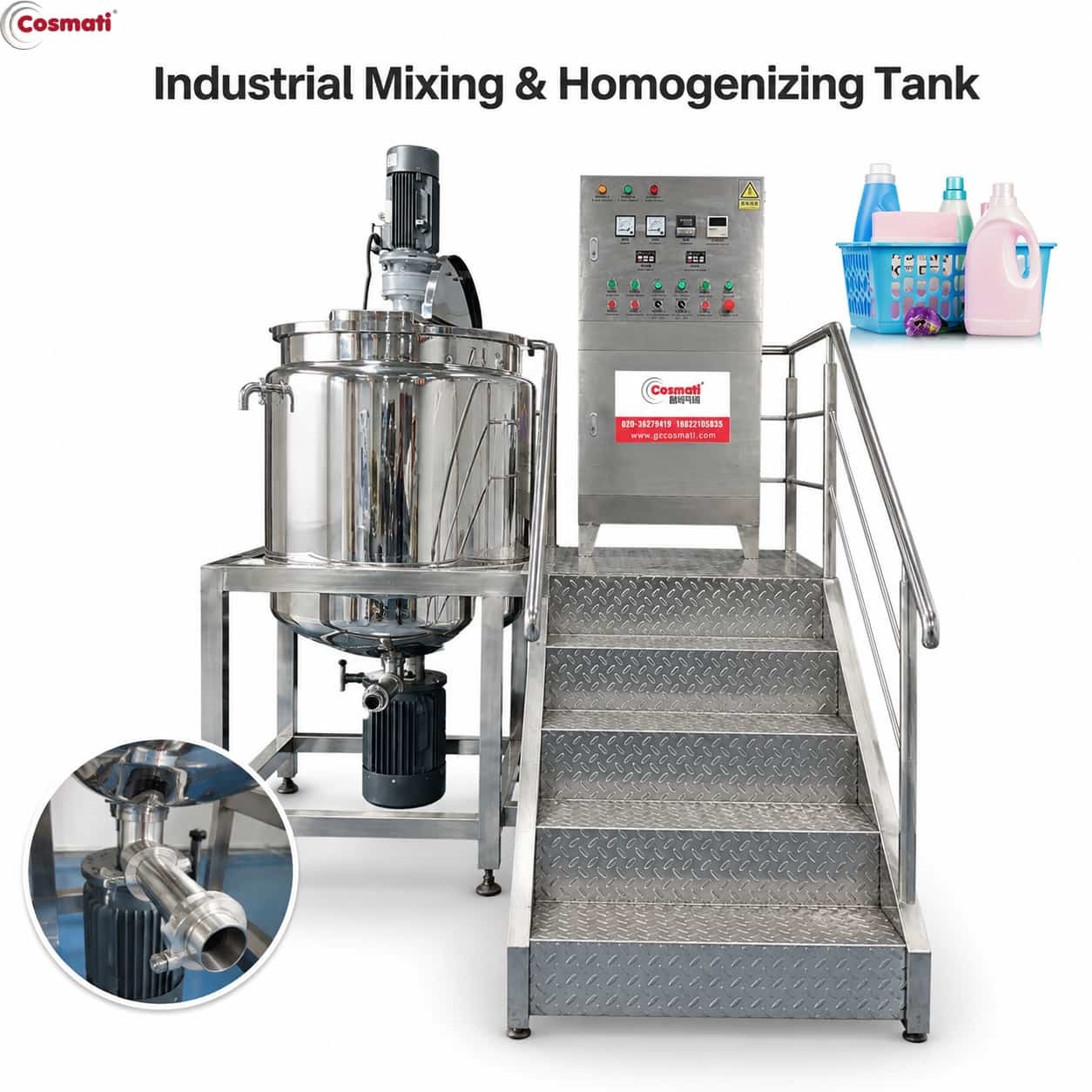

The 500L Double Jacket Mixing Tank is designed for mixing, blending and homogenizing liquid and semi-viscous products used in daily chemical and cosmetic production.

The machine combines a top-mounted agitator with a bottom high-speed homogenizing system. The main agitator provides stable material circulation, while the bottom homogenizer improves dispersion and helps create a more uniform product texture.

The double-jacket tank can be connected to a suitable temperature-control system according to the production process. With an elevated working platform and stainless steel structure, the machine is suitable for commercial batch production of shampoo, liquid soap, laundry detergent, body wash and similar products.

Features

  1. 500L standard capacity suitable for commercial batch production.
  2. Top-mounted agitator provides stable mixing at adjustable speeds from 0–63 rpm.
  3. Bottom homogenizing system operates up to approximately 3000 rpm for stronger dispersion and uniform blending.
  4. Double-jacket tank design supports temperature-controlled processing according to production requirements.
  5. Stainless steel tank construction is suitable for daily chemical and cosmetic manufacturing.
  6. Elevated working platform and stairs provide convenient access for material feeding, inspection and operation.
  7. 6.3 kW reference power for the current configuration.
  8. Button control is available, with touch screen control optional according to machine configuration.

Detail

Capacity(L)
Mixing power(KW)
Mixing speed
Homogenizing power(kw)
Homogenizing speed
500
2.2
0-65rpm
5.5-7.5
0-3000rpm
1000
4
0-65rpm
7.5-11
0-3000rpm
2000
5.5
0-53rpm
11-15
0-3000rpm
3000
7.5
0-53rpm
18
0-3000rpm
5000
11
0-42rpm
22
0-3000rpm
10000
15
0-42rpm
30
0-3000rpm

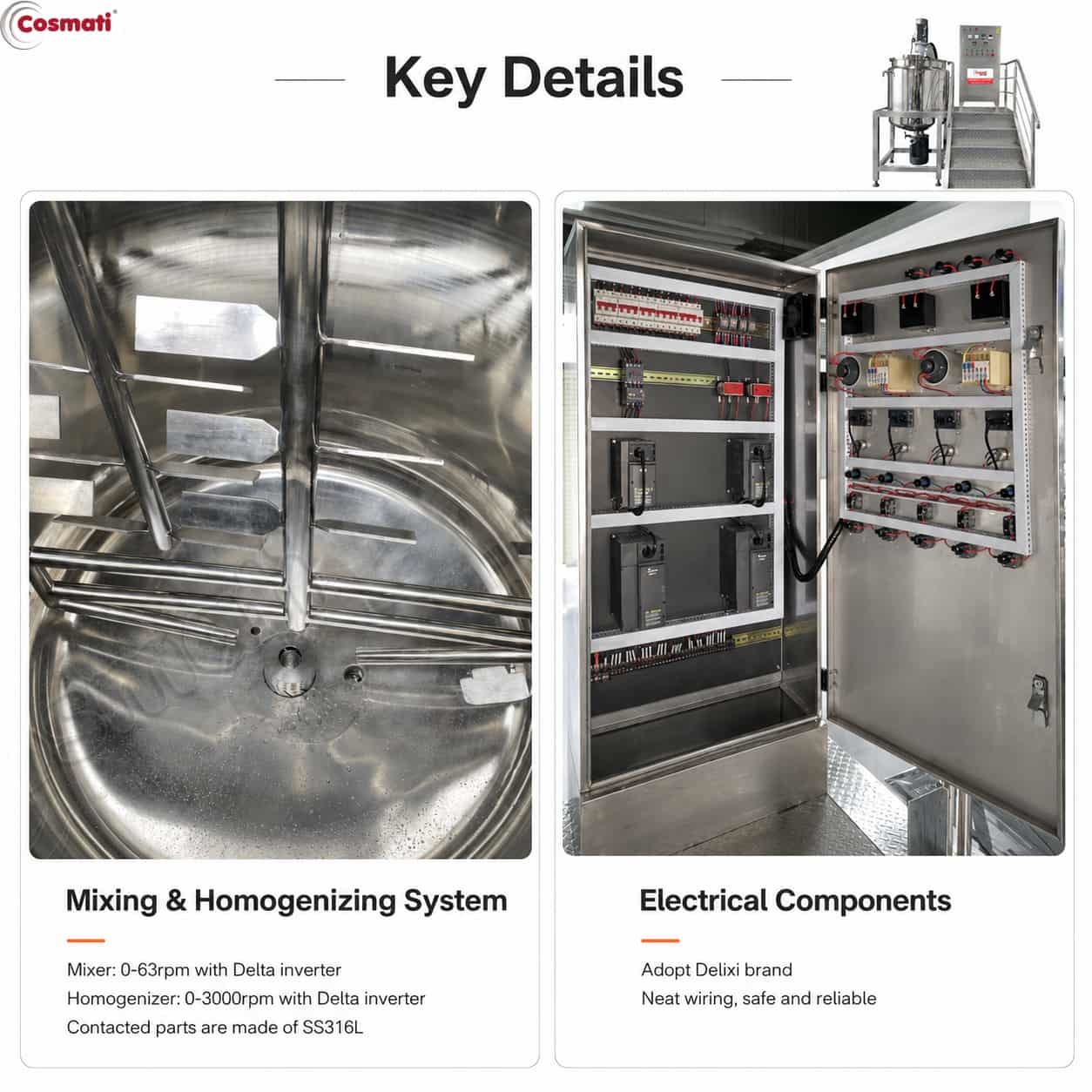

Mixing & Homogenizing system
Mixer: 0-63rpm with Delta inverter, mixing paddle with PTFE scraper
Homogenizer: 0-3000rpm with Delta inverter
Contacted parts are made of SS316L
Motors
Motors adopt Beide or ABB or explosion proof motor, etc.
It Depends on customers' specific requirements.
Heater
Heating wires
Electrical components
Adopt Delixi brand
As a professional cosmetic machinery manufacturer with 17-year experience, we can provide you with excellent production line(from producing to packing):
Raw water tank-Water Treatment-Pure water tank-Liquid detergent mixer-Filling machine-Capping machine-Labeling machine-Inkjet printer
Liquid Soap Double Jacket Mixing Tank Stainless Steel Shampoo Detergent Mixer
Below is a semi-automatic detergent production line, it is suitable for starter in this field.
Liquid Soap Double Jacket Mixing Tank Stainless Steel Shampoo Detergent Mixer
Water Treatment Equipment
Liquid Soap Double Jacket Mixing Tank Stainless Steel Shampoo Detergent Mixer
Mixer
Liquid Soap Double Jacket Mixing Tank Stainless Steel Shampoo Detergent Mixer
Movable Storage Tank
Liquid Soap Double Jacket Mixing Tank Stainless Steel Shampoo Detergent Mixer
Semi-Automatic Filling Machine
Liquid Soap Double Jacket Mixing Tank Stainless Steel Shampoo Detergent Mixer
Table Type Capping Machine
Liquid Soap Double Jacket Mixing Tank Stainless Steel Shampoo Detergent Mixer
Semi-Automatic Labeling Machine
Factory profile
Liquid Soap Double Jacket Mixing Tank Stainless Steel Shampoo Detergent Mixer
Engineer case
Liquid Soap Double Jacket Mixing Tank Stainless Steel Shampoo Detergent Mixer
Liquid Soap Double Jacket Mixing Tank Stainless Steel Shampoo Detergent Mixer
Liquid Soap Double Jacket Mixing Tank Stainless Steel Shampoo Detergent Mixer
Trade show participation
Liquid Soap Double Jacket Mixing Tank Stainless Steel Shampoo Detergent Mixer
Packaging & shipping specifications
Liquid Soap Double Jacket Mixing Tank Stainless Steel Shampoo Detergent Mixer
Application
Liquid Soap Double Jacket Mixing Tank Stainless Steel Shampoo Detergent Mixer
FAQ

Q1: What products can this 500L mixing tank produce?

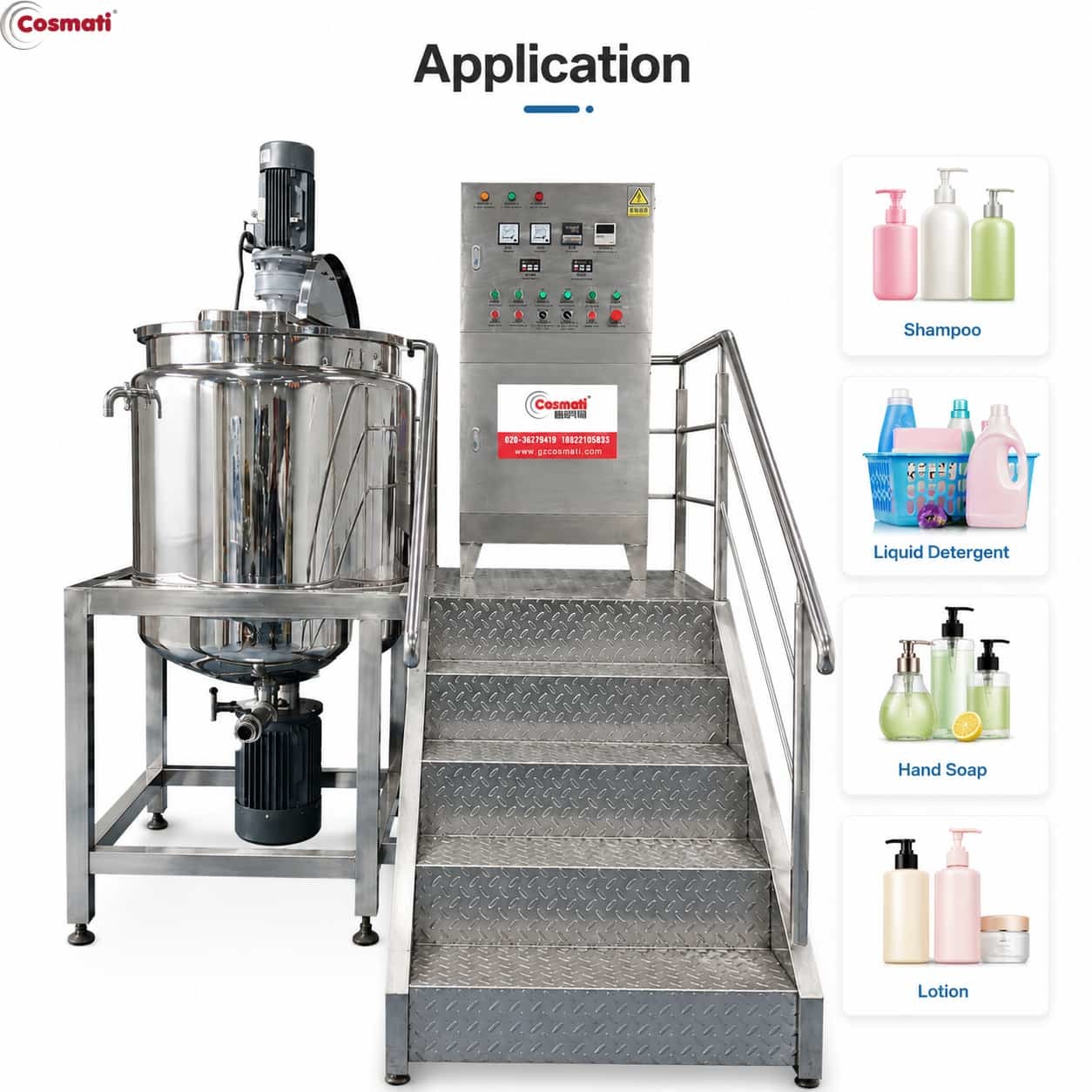

A: It is mainly suitable for shampoo, liquid soap, laundry detergent, body wash, shower gel, hand soap and other liquid or semi-viscous daily chemical products.

Q2: What is the standard capacity?
A: The standard model shown is 500L. Other capacities from approximately 50L to 10,000L can be customized according to production requirements.

Q3: Does the machine have both mixing and homogenizing functions?
A: Yes. The top agitator provides regular mixing, while the bottom homogenizer provides higher-speed dispersion and homogenization.

Q4: What is the main agitator speed?
A: The reference mixing speed is approximately 0–63 rpm.

Q5: What is the homogenizer speed?
A: The bottom homogenizing system can operate up to approximately 3000 rpm depending on the selected configuration.
