500L 2000L Liquid Soap Making Machine Heating Shampoo Agitator Mixing Tank
500L 2000L Liquid Soap Making Machine Heating Shampoo Agitator Mixing Tank
500L 2000L Liquid Soap Making Machine Heating Shampoo Agitator Mixing Tank
500L 2000L Liquid Soap Making Machine Heating Shampoo Agitator Mixing Tank
500L 2000L Liquid Soap Making Machine Heating Shampoo Agitator Mixing Tank
500L 2000L Liquid Soap Making Machine Heating Shampoo Agitator Mixing Tank
500L 2000L Liquid Soap Making Machine Heating Shampoo Agitator Mixing Tank
500L 2000L Liquid Soap Making Machine Heating Shampoo Agitator Mixing Tank
Specifications
Delivery Time :
7 work days
material processed :
Chemicals, Food, cosmetic
Configuration :
bottom-entry
Jacket :
2 Layers
Supply Ability :
10000 set
product type :
Cosmetic
machinery test report :
Provided
Packaging Details :
wooden cases
Payment Terms :
TT
Price :
$7,000-8,500
range of spindle speed(r.p.m) :
0 - 60
material :
SUS316, SUS304
dimension(l*w*h) :
Referring
Capacity :
2000l, 50L-50000L
Function :
Liquid, Toilet Soap, Hand Sanitizer, Shampoo
Brand Name :
Cosmati
additional capabilities :
Milling
key selling points :
High Productivity
core components :
Motor
video outgoing-inspection :
Provided
voltage :
220V/380V
warranty :
1 Year
Power (kW) :
7.5 kW(10.06hp)
Keyword :
liquid soap mixing tank homogenizer
Place of Origin :
Guangdong, China
mixer type :
Agitator
Product name :
500l mixing tank shampoo mixer tank liquid detergent mixing machine
weight (kg) :
850
Heating methord :
Steam or electricity
Application scope :
Liquid, Toilet Soap, Hand Sanitizer, Shampoo
MOQ :
1
Keyword 02 :
dish washing soap making machine
Stirrer type :
Wall Scraper Mixer
Description
500L 2000L Homogenizer Mixing Tank with Heating Shampoo Mixer Tank Liquid Detergent Mixing Machine

Introduction

This 2000L Stainless Steel Mixing Tank is designed for large-batch production of shampoo, liquid detergent, liquid soap, hand sanitizer and other liquid daily chemical products.

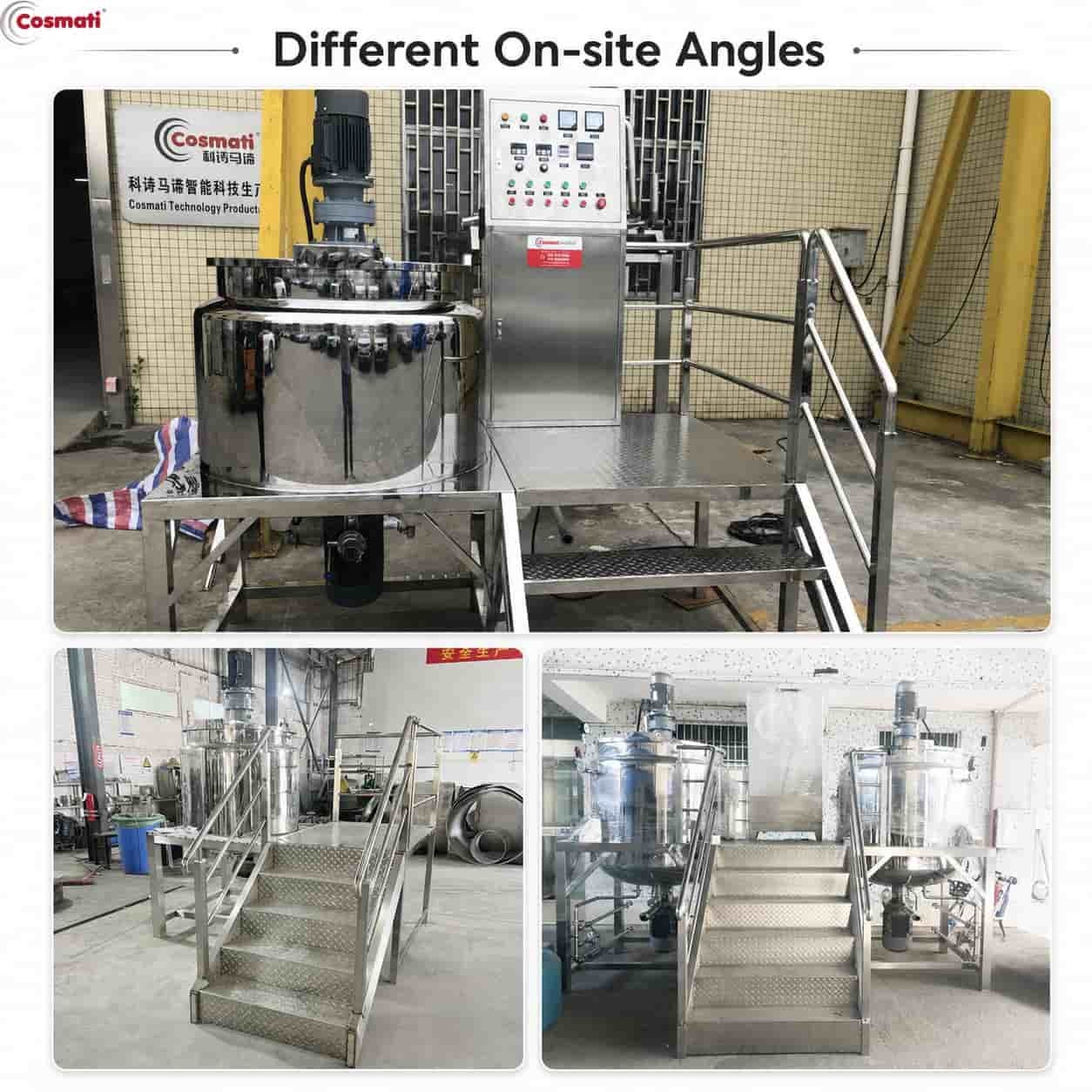

The system uses a top-mounted agitator to provide continuous material circulation and uniform blending during production. Steam heating or electric heating can be configured according to the required process. The large stainless steel tank is installed beside an elevated working platform, allowing operators to access the upper tank area conveniently for inspection, material feeding and routine operation.

With a reference motor power of 7.5 kW, this industrial mixing tank is suitable for commercial batch production where stable mixing, large capacity and flexible process configuration are required.

Features

  1. Large 2000L reference capacity designed for commercial batch production.
  2. Top-mounted agitator provides stable mixing and continuous material circulation.
  3. Steam heating or electric heating can be selected according to production requirements.
  4. Stainless steel tank construction is suitable for shampoo, detergent, liquid soap and other daily chemical liquids.
  5. Elevated stainless steel working platform and stairs provide convenient access to the tank top during operation.
  6. 7.5 kW reference motor provides stable power for the current large-capacity configuration.
  7. Tank capacity, motor power, heating method and electrical configuration can be customized according to the actual production process.
Details
Capacity(L)
Mixing power(KW)
Mixing speed
Homogenizing power(kw)
Homogenizing speed
500
2.2
0-65rpm
5.5-7.5
0-3000rpm
1000
4
0-65rpm
7.5-11
0-3000rpm
2000
5.5
0-53rpm
11-15
0-3000rpm
3000
7.5
0-53rpm
18
0-3000rpm
5000
11
0-42rpm
22
0-3000rpm
10000
15
0-42rpm
30
0-3000rpm

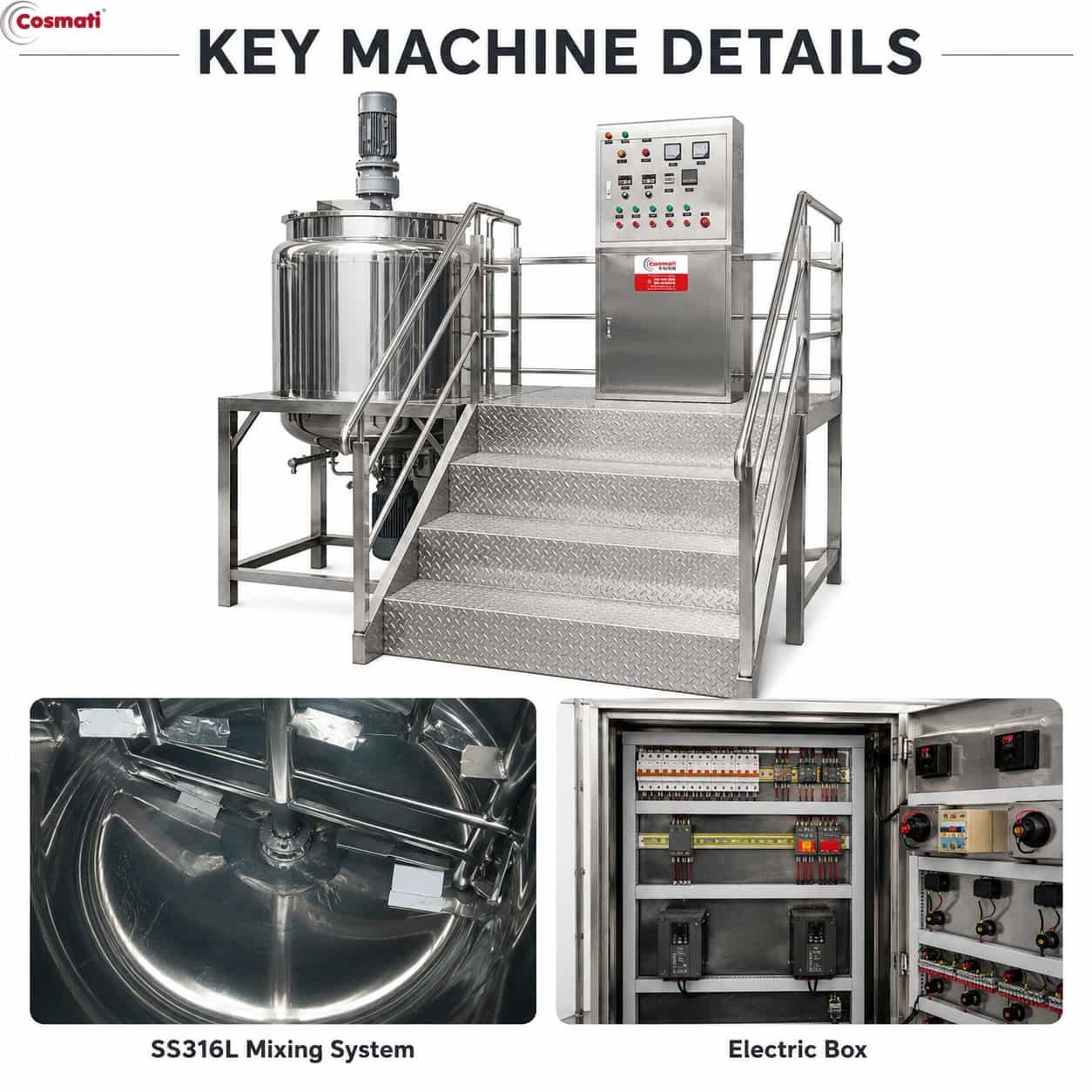

SS316L Mixing systeam
(beide) Motors
Anti-slip platforms and stairs
Homogenizer (Rotor & Stator)
Electric Box
53mm Discharging Valve

Factory profile
500L 2000L Liquid Soap Making Machine Heating Shampoo Agitator Mixing Tank
Engineer case
500L 2000L Liquid Soap Making Machine Heating Shampoo Agitator Mixing Tank
500L 2000L Liquid Soap Making Machine Heating Shampoo Agitator Mixing Tank
500L 2000L Liquid Soap Making Machine Heating Shampoo Agitator Mixing Tank
Trade show participation
500L 2000L Liquid Soap Making Machine Heating Shampoo Agitator Mixing Tank
Packaging & shipping specifications
500L 2000L Liquid Soap Making Machine Heating Shampoo Agitator Mixing Tank
Application
500L 2000L Liquid Soap Making Machine Heating Shampoo Agitator Mixing Tank

FAQ

Q1: What products can this mixing tank produce?
A: It is mainly suitable for shampoo, liquid detergent, liquid soap, hand sanitizer, body wash and other low-to-medium viscosity daily chemical liquids.

Q2: What is the capacity of the machine shown?
A: The current reference configuration is 2000L. Other capacities can be customized according to the customer's required batch size.

Q3: Is this a homogenizer or high-shear mixer?
A: The machine shown is primarily a large-capacity agitator mixing tank. A high-shear homogenizer should only be added if required by the customer's formulation and machine configuration.

Q4: Where is the agitator installed?
A: The machine shown uses a top-mounted agitator driven by the motor installed above the tank.

Q5: Can the machine heat the material?
A: Yes. Steam heating or electric heating can be configured according to the required production process.
