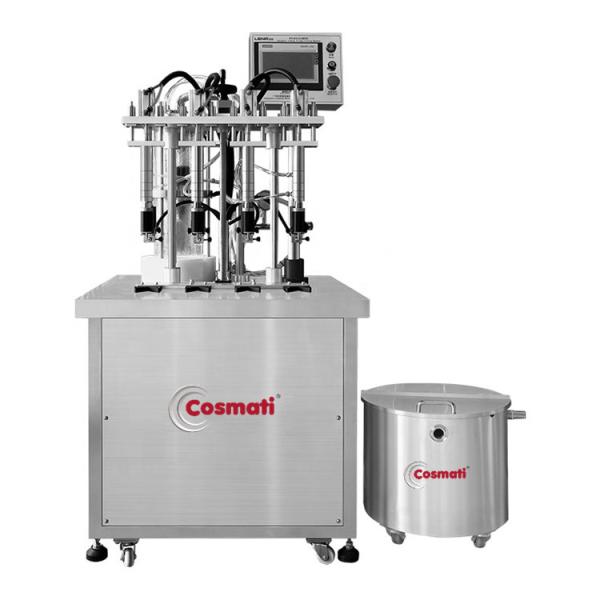

4 Heads Magnetic Pump Quantitative Perfume Bottle Filler Semi Auto
4 Heads Magnetic Pump Quantitative Perfume Bottle Filler Semi Auto
4 Heads Magnetic Pump Quantitative Perfume Bottle Filler Semi Auto
4 Heads Magnetic Pump Quantitative Perfume Bottle Filler Semi Auto
4 Heads Magnetic Pump Quantitative Perfume Bottle Filler Semi Auto
4 Heads Magnetic Pump Quantitative Perfume Bottle Filler Semi Auto
4 Heads Magnetic Pump Quantitative Perfume Bottle Filler Semi Auto
4 Heads Magnetic Pump Quantitative Perfume Bottle Filler Semi Auto
4 Heads Magnetic Pump Quantitative Perfume Bottle Filler Semi Auto
4 Heads Magnetic Pump Quantitative Perfume Bottle Filler Semi Auto
Specifications
Filling Accuracy :
±1%
Control :
Pneumatic Control System
Model Number :
CM-PFM
Packaging Details :
wooden cases
Noise :
70dB(A)
Price :
1000-100000 USD
Payment Terms :
TT
Keywords :
perfume filling machine
MOQ :
1 SET
Delivery Time :
7 work days
Application :
Chemical, Commodity, Food, Cosmetic
Certification :
CE
Place of Origin :
GUANGZHOU,CHINA
Dimension :
L900xW500XH1300mm
Material :
Stainless Steel 304/316
Filling volume :
5-1000ml
Product name :
Semi-automatic bottle perfume filling machine
Supply Ability :
10000 set
Filling Nozzels :
4pcs
Usage :
Filling perfume
Brand Name :
COSMATI
Description

4 Heads magnetic pump semi-automatic quantitative perfume filling machine

4 Heads Magnetic Pump Quantitative Perfume Bottle Filler Semi Auto

Introduction

Designed for flexible perfume and fragrance production, this 4-head semi-automatic filling machine allows four bottles to be processed during each filling cycle, providing a practical balance between production efficiency and easy operation.

The machine is mainly suitable for perfume, fragrance, cologne, floral water, toner and other free-flowing liquids. According to the supplied specifications, it supports an adjustable 5–1000ml filling range with filling accuracy of approximately ±1%.

A pneumatic control system provides stable operation, while four filling nozzles help improve batch output compared with single-head and double-head fillers. The stainless steel structure is available in SUS304/SUS316, making the machine suitable for cosmetic, fragrance and compatible liquid processing applications.

Its compact design is especially suitable for manufacturers producing multiple perfume bottle sizes, small-to-medium batches or frequently changing fragrance formulas.


Technical Parameter:

Production Capacity 20-40 bottles/min
Filling Volume 5-1000ml
Suitable bottle height ≤250mm
Suitable bottle diameter ≤90mm
Application of Bottle Diameter ≥5mm
Supply Voltage 3/N AC 380V/220V


Power Consumption

0.55KW 0.75KW

( explosion proof Noise 70dB(A)


Company Profile:

We are a cosmetic machinery manufacturer which professional in researching and developing, producing cosmetic machines. Through the agency of South Korea, Japan, Italy,equipment brand, we have deposited leading technology and applied it to our products.We focus on color cosmetic fields and cosmetic fields and provide the complete set of solutions for your company.

Our main products including Vacuum mixer homogenizer,mixer machine,cosmetic filling machine,perfume filling machine,lip gloss filling machine ,mascara filling machine,lipstick filling machine and so on. We provide fair price with competitive products. Excellent,Professional,Competitive products and good service are provided. Dedicate QC team is responsible for quality control from start producing to delivery to customers' side. Every product is carefully verified before delivery to customer, as well as detailed inspection record to provide accurate after-sales service.

Factory profile
4 Heads Magnetic Pump Quantitative Perfume Bottle Filler Semi Auto
Engineer case
4 Heads Magnetic Pump Quantitative Perfume Bottle Filler Semi Auto
4 Heads Magnetic Pump Quantitative Perfume Bottle Filler Semi Auto
4 Heads Magnetic Pump Quantitative Perfume Bottle Filler Semi Auto
Trade show participation
4 Heads Magnetic Pump Quantitative Perfume Bottle Filler Semi Auto
Packaging & shipping specifications
4 Heads Magnetic Pump Quantitative Perfume Bottle Filler Semi Auto


FAQ

1. Why choose a 4-head perfume filling machine instead of a single-head model?

The four-head configuration allows several bottles to be filled during one working cycle, helping improve production efficiency while maintaining a relatively compact machine footprint.

2. What liquids can this machine fill?

It is mainly suitable for perfume, fragrance, cologne, floral water, toner, facial mist and other low-viscosity liquids.

3. What is the filling volume range?

The supplied specification lists an adjustable range of approximately 5–1000ml.

4. What filling accuracy can it achieve?

The listed filling accuracy is approximately ±1%, depending on filling volume, liquid characteristics and machine adjustment.

5. Does the machine really have four filling nozzles?

Yes. The supplied configuration specifies 4 filling nozzles, which is also consistent with the machine shown.
