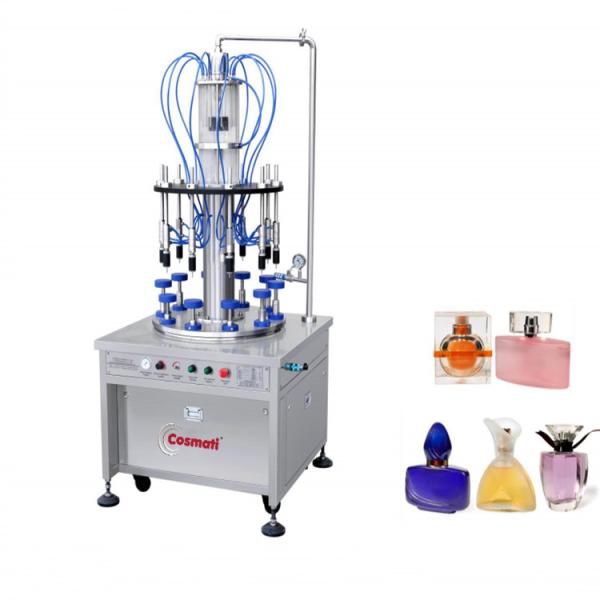

10 Heads Filling Machine for Perfume Liquid Negative Pressure Stainless Steel 316L
10 Heads Filling Machine for Perfume Liquid Negative Pressure Stainless Steel 316L
10 Heads Filling Machine for Perfume Liquid Negative Pressure Stainless Steel 316L
10 Heads Filling Machine for Perfume Liquid Negative Pressure Stainless Steel 316L
10 Heads Filling Machine for Perfume Liquid Negative Pressure Stainless Steel 316L
10 Heads Filling Machine for Perfume Liquid Negative Pressure Stainless Steel 316L
10 Heads Filling Machine for Perfume Liquid Negative Pressure Stainless Steel 316L
10 Heads Filling Machine for Perfume Liquid Negative Pressure Stainless Steel 316L
10 Heads Filling Machine for Perfume Liquid Negative Pressure Stainless Steel 316L
10 Heads Filling Machine for Perfume Liquid Negative Pressure Stainless Steel 316L
Specifications
Model Number :
CM-PFM
Keywords :
perfume filling machine
Brand Name :
COSMATI
Price :
1000-100000 USD
Production Capacity :
10-30 bottles/min
Certification :
CE
Dimension :
L900xW500XH1300mm
Filling Accuracy :
±1%
Key Selling Points :
High-accuracy
Supply Ability :
10000 set
Noise :
70dB(A)
Usage :
Filling perfume
Delivery Time :
7 work days
Material :
Stainless Steel 304/316
Filling volume :
5-1000ml
Payment Terms :
TT
Filling Nozzels :
10pcs
Place of Origin :
GUANGZHOU,CHINA
MOQ :
1 SET
Product name :
10 heads top quality filling machine for perfume/liquid
Packaging Details :
wooden cases
Machinery Capacity :
4000BPH, 20000BPH, Other
Description

10 heads top quality filling machine for perfume/liquid

10 Heads Filling Machine for Perfume Liquid Negative Pressure Stainless Steel 316L

Introduction:

*Negative pressure suction liquid filling, the product filling volume is measured by the height of the liquid level
* Equipped with casters, easy to move
*Stainless steel 316L is used in contact with materials, and stainless steel 304 is used for the tabletop
*Suitable for glass bottles, or plastic bottles whose body is not easily deformed after being evacuated, convenient for adjustment, operation and maintenance
*Ideal equipment for liquid level filling such as toilet water, perfume, toner and other liquid materials


Technical Parameter:

Production Capacity20-40 bottles/min
Filling Volume5-1000ml
Suitable bottle height≤250mm
Suitable bottle diameter≤90mm
Application of Bottle Diameter≥5mm
Supply Voltage3/N AC 380V/220V


Power Consumption

0.55KW 0.75KW

( explosion proof Noise 70dB(A)


Factory profile
10 Heads Filling Machine for Perfume Liquid Negative Pressure Stainless Steel 316L
Engineer case
10 Heads Filling Machine for Perfume Liquid Negative Pressure Stainless Steel 316L
10 Heads Filling Machine for Perfume Liquid Negative Pressure Stainless Steel 316L
10 Heads Filling Machine for Perfume Liquid Negative Pressure Stainless Steel 316L
Trade show participation
10 Heads Filling Machine for Perfume Liquid Negative Pressure Stainless Steel 316L
Packaging & shipping specifications
10 Heads Filling Machine for Perfume Liquid Negative Pressure Stainless Steel 316L

FAQ

1. What products can this 10-head filling machine handle?
This machine is mainly designed for perfume, fragrance, cologne, toner, facial mist and other low-viscosity liquid products.

2. How many filling nozzles does the machine have?
The supplied configuration uses 10 filling nozzles, allowing multiple bottles to be filled during each production cycle.

3. What is the filling volume range?
According to the supplied specification, the filling range is approximately 5–1000 ml, depending on the bottle size and machine setup.

4. What is the production speed?
The listed production capacity is approximately 10–30 bottles per minute, depending on filling volume, bottle size and operating conditions.

5. What is the filling accuracy?
The supplied specification lists approximately ±1% filling accuracy, depending on liquid characteristics and filling volume.
