6 Cylinders 2500mm Hydraulic Mill Roll Stand Machine For Corrugated Production Line
6 Cylinders 2500mm Hydraulic Mill Roll Stand Machine For Corrugated Production Line
6 Cylinders 2500mm Hydraulic Mill Roll Stand Machine For Corrugated Production Line
6 Cylinders 2500mm Hydraulic Mill Roll Stand Machine For Corrugated Production Line
6 Cylinders 2500mm Hydraulic Mill Roll Stand Machine For Corrugated Production Line
6 Cylinders 2500mm Hydraulic Mill Roll Stand Machine For Corrugated Production Line
6 Cylinders 2500mm Hydraulic Mill Roll Stand Machine For Corrugated Production Line
6 Cylinders 2500mm Hydraulic Mill Roll Stand Machine For Corrugated Production Line
6 Cylinders 2500mm Hydraulic Mill Roll Stand Machine For Corrugated Production Line
6 Cylinders 2500mm Hydraulic Mill Roll Stand Machine For Corrugated Production Line
Specifications
Brand Name :
SOOME
Model Number :
SM-2500
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Contact
Payment Terms :
L/C, T/T
Supply Ability :
20 Sets/Month
Delivery Time :
45 Days
Packaging Details :
Wooden case or plastic film;1*20'Container
Wide size :
2500mm
Speed :
Can follow your machine speed
Operation model :
Hydraulic type
Voltage :
380V 50HZ
Paper roll diameter :
1500mm
Working pneumatic press :
0.6-0.9Mpa
Warranty :
1 year
Usage :
Corrugated production line raw paper
Description

2500MM Hydraulic mill roll stand machine for corrugated production line

1 . Machine Description:

This machine is used for supporting the paper roll, supply the paper to the production line.

2 . Machine Function:

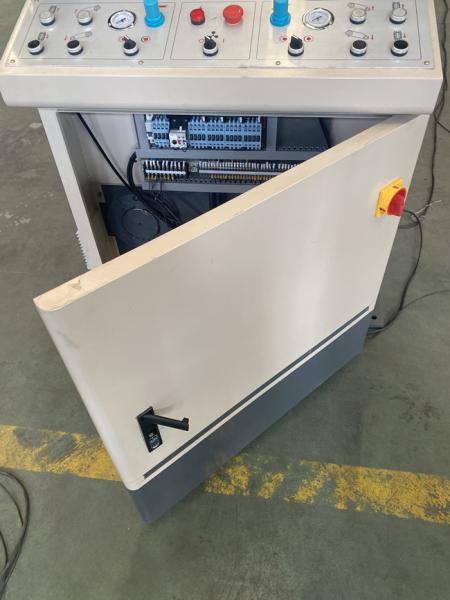

1 ) Each arm setup four directions button, it is easy to operate

2 ) It can be loading two paper rolls at the same time, without stopping the machine for changing paper roll

3 ) The whole machine use 6 cylinders fully hydraulic controlled, hydraulic control arm lift and down, clamping and open, left and right moving

4 ) Tension control: multi point pneumatic brakes,brakes good performance, loses heat fast

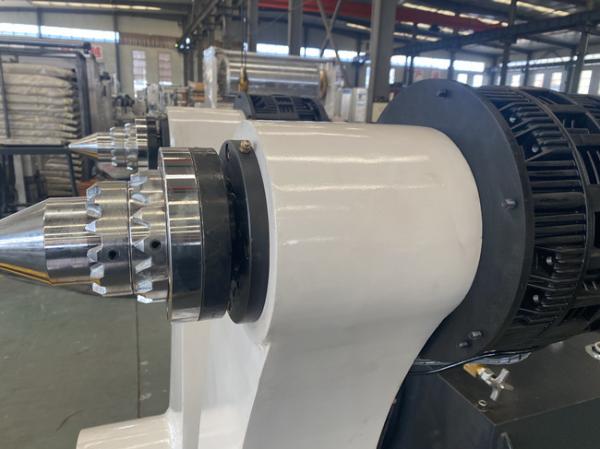

5 ) The chuck adopt inner expansion type or teeth type, reduce the destruction of the paper core. saving paper

3 . Machine Technical Parameter:

Max. Working Width 2500mm
Min. Working Width 900mm
Max. Paper Mill Dia 1500mm
Main Shaft Dia Φ242mm
Max. Working Pneumatic Pressure 0.6-0.9Mpa
Max. Supporting Weight (One side) 3T
Pneumatic Source Pressure(Mpa) 0.4---0.8Mpa

4 . Main Components Brand:

Components Name Brand
Muti-Point Brake China
Chuck China 3/4 Inch
Hydraulic Station Shandong
Main Electrical Schneider
