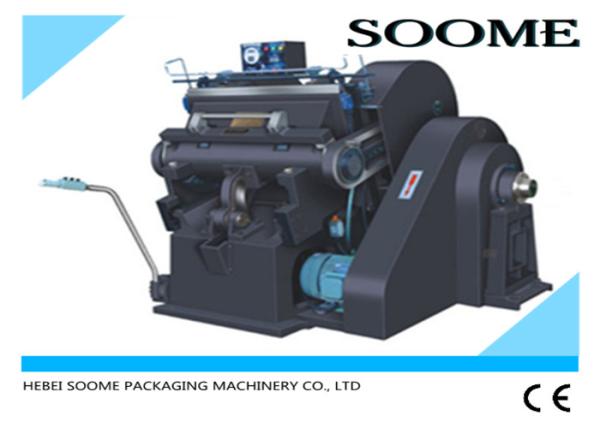

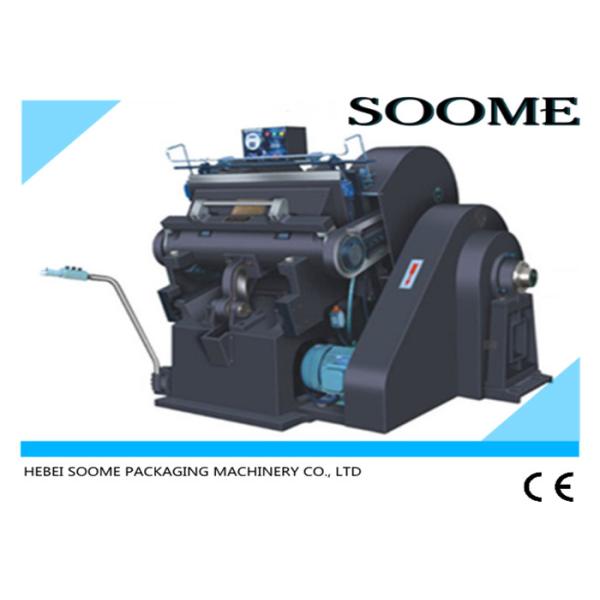

2.2KW Manual Die Cutting Press Machine , Industrial Die Cutting Machine
2.2KW Manual Die Cutting Press Machine , Industrial Die Cutting Machine
2.2KW Manual Die Cutting Press Machine , Industrial Die Cutting Machine
2.2KW Manual Die Cutting Press Machine , Industrial Die Cutting Machine
Specifications
Brand Name :
SOOME
Model Number :
SMMQ-ML-750
Certification :
CE
Place of Origin :
Made In China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 Sets/Month
Delivery Time :
30 Days
Packaging Details :
Wrapped With Film
Condition :
New
Type :
Die-Cutting Machine
Uasge :
Die Cutting Corrugated Paper
Power :
2.2KW
Weight :
3.8T
Warranty :
1 Year
Description

2.2KW Manual Die Cutting Press Machine , Industrial Die Cutting Machine

Summarize

1. Equip with four insurance parts and four functions. The insurance part including gantry insurance, triangle insurance, hand shank insurance and automatic light-operated insurance to makes the machine safety and reliable.

2. The brake clutch adopts electric suction plate brake clutch to keep the braking sensitive and reliable.

3. Adjustable template makes the plate loading, unloading more easily. Disposition: Centralized oil supplying,.

4. Three functions including single piece pressing cutting, continuous pressing cutting and time-delay when start machine, the delay time can be adjusted.

Components and place of origin

Item Place of Origin
Copper bush Tin bronze
Steel plate Stainless steel
Motor Hengshui
Appliance Chnt
Bearing Hrb, Wafangdian
Travel switch(Insurance)

Schneider

Model

Model

Max,Rule Area

Workingspeed

Power

Weight

 Overall Dimensions(L×W×H)
PYQ401C 750×520mm 28±2(strokes/min) 2.2kw 2000kg 1260×1350×1280mm
PYQ203D 930×670mm 23±2(strokes/min) 4.0kw 3000kg 1670×1670×1630mm
ML1100 1100×800mm 20±2(strokes/min) 5.5kw 4500kg 1900×1800×1700mm
ML1200 1200×830mm 20±2(strokes/min) 5.5kw 4800kg 1900×2000×1700mm
ML1300 1300×920mm 18±2(strokes/min) 5.5kw 6000kg 2000×2400×1800mm
ML1400 1400×1000mm 18±2(strokes/min) 5.5kw 6500kg 2000×2450×1900mm
ML1500 1500×1050mm 18±2(strokes/min) 5.5kw 7000kg 2000×2500×1930mm
ML1600 1600×1250mm 16±2(strokes/min) 11kw 11000kg 2170×2560×2230mm
ML1800 1800×1300mm 16±2(strokes/min) 15kw 13500kg 2240×2800×2130mm

2.2KW Manual Die Cutting Press Machine , Industrial Die Cutting Machine
