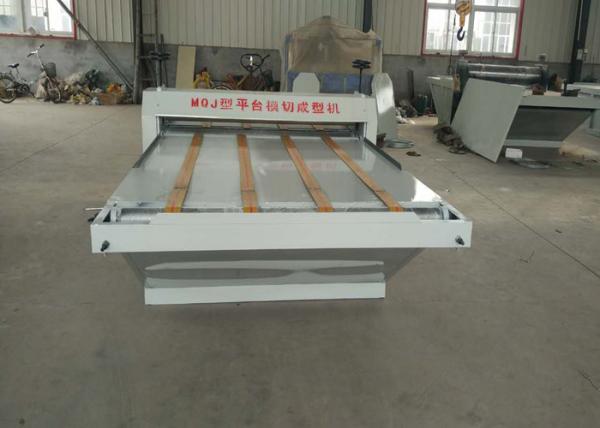

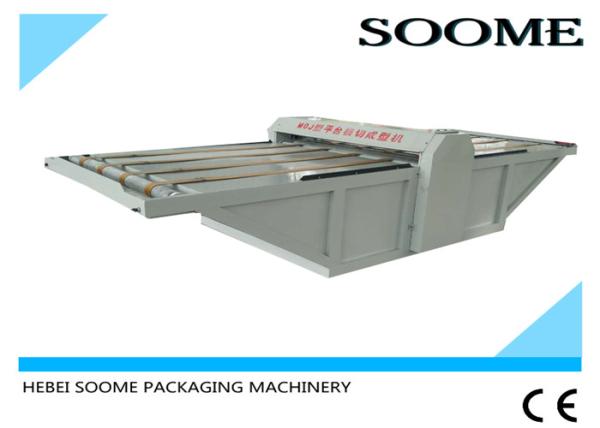

High Speed Corrugated Die Cutting Machine Platform Mould Slicing Operated Safe
High Speed Corrugated Die Cutting Machine Platform Mould Slicing Operated Safe
High Speed Corrugated Die Cutting Machine Platform Mould Slicing Operated Safe
High Speed Corrugated Die Cutting Machine Platform Mould Slicing Operated Safe
High Speed Corrugated Die Cutting Machine Platform Mould Slicing Operated Safe
High Speed Corrugated Die Cutting Machine Platform Mould Slicing Operated Safe
High Speed Corrugated Die Cutting Machine Platform Mould Slicing Operated Safe
High Speed Corrugated Die Cutting Machine Platform Mould Slicing Operated Safe
Specifications
Brand Name :
SOOME
Model Number :
SMYY-MQJ-1400
Certification :
CE
Place of Origin :
Made In China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 Sets/Month
Delivery Time :
One Month
Packaging Details :
Wrapped With Film
Condition :
New
Type :
Die-Cutting Machine
Material :
Steel
Color :
Customized
Weight :
1.5T
Warranty :
1 Year
Driven Type :
Electric
Usage :
For Corrugated Cardboard Cutting
Description

High Speed Corrugated Die Cutting Machine Platform Mould Slicing Operated Safe

I. Specifications:

Corrugated platform die cutting machine

- Cardboard Type: low-medium-and high-grade cardboard boxes
- make the special upscale unusual carton
- mould is stable

II. Features:

1.The platform mould slicing machine is the renew equipment to make the special upscale carton which can slice the side, slice the corner, hurtle the bore, open the slot, press the trace and other processes.

2. It can make all the above mentioned processes into one integral whole process and merge once mould cutting into the type.

3. The quality of slicing the mould stable, the size is accurate, the side is hairless.

4. It is clean and tidy and can be operated safely and conveniently.

III. Parameters:

1. Platform mould slicing machines
2. Work speed: 15pcs/min

3. Max size of paper: 1500*1800(mm)

4. Min size of paper: 100*100(mm)

5. Die cutting size (width + height): 1600*2000(mm)

Model Work speed Electric power Exterior size(mm) The weight (kg)
MQJ-1200 0-15 pieces of paper 2.2KW 3000×1500×1250mm 1000
MQJ-1400 0-15 pieces of paper 2.2KW 4500×1700×1250mm 1200
MQJ-1600 0-15 pieces of paper 2.2KW 4500×1900×1250mm 1500
MQJ-1800 0-15 pieces of paper 2.2KW 5000×2100×1250mm 1800

High Speed Corrugated Die Cutting Machine Platform Mould Slicing Operated Safe
