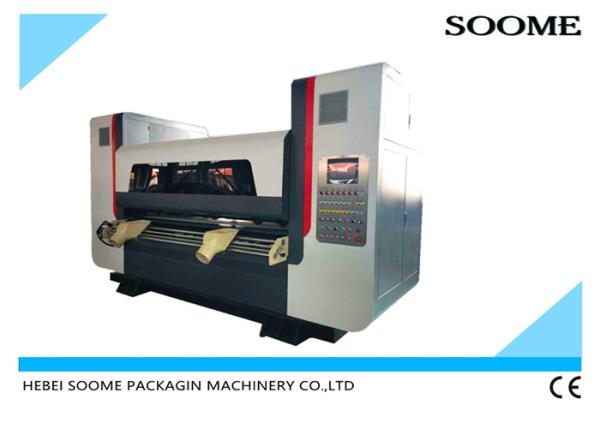

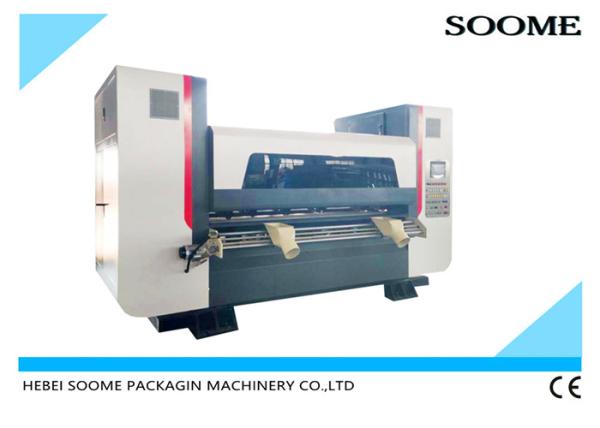

Computerized Thin Blade Slitter Scorer Machine Corrugated Paper Slitting Creasing
Computerized Thin Blade Slitter Scorer Machine Corrugated Paper Slitting Creasing
Computerized Thin Blade Slitter Scorer Machine Corrugated Paper Slitting Creasing
Computerized Thin Blade Slitter Scorer Machine Corrugated Paper Slitting Creasing
Specifications
Brand Name :
SOOME
Model Number :
SMBD-BNC
Certification :
CE
Place of Origin :
Hebei Province China
MOQ :
1 set
Price :
negotiation
Payment Terms :
Western Union, MoneyGram, T/T, L/C
Supply Ability :
50 per mounth
Delivery Time :
25 after depoist
Packaging Details :
wooden case with plastic film
Type :
new condition slitter creasing machine
Usage :
Making Carton
Design speed :
150/200/250m/min
Voltage :
220V/380V/420
Application :
Machinery & Hardware,Food,Chemical
Driven type :
Electric
Warranty :
1 Year
Changing order time :
1-3s
Automatic grade :
Semi-Automatic
Machine type :
Corrugated Paperboard Making Machine
Description

Computerized Thin Blade Slitter Scorer Machine Corrugated Paper Slitting Creasing

Function and Features :

1. High quality industry computer and high performance PLC make up the NC system.

2. Adopt high precision linear guide way, grinding ball screw driving, can assure the slitting and creasing precision within ±0.5mm.

3. Has the memory of 999 orders, realize non-stop automatic or manual order changing, time within 3~8s.

4.Alloyed tungsten steel thin-blades,sharp and long life of over 8 million meters ,auto sharpening

5. Design speed 200m/min. Can track the line speed automatically and keep the same speed with line. Easy to connect with management system.

6. The knife sharpening is controlled by computer, automatic or manual sharpening, edge trimming knife, easy to maintain.

7. There are three types of scorers: convex to concave (3layers cardboard), convex to concave (5layers cardboard), convex to flat, the 3types can change electrically fast.

8. Two rows of scorers in front and back,realizes minimum scorer spacing is 0mm.

Mechanical:

1. Linder Guiderway: HIWIN Taiwan
2. Ball Screw: HIWIN Taiwan
3. Synchronous Belt: SUBAK Japan
4. Blade: Tungsten Steel Chengdu
5. Bearing:HRB/MERCK Harbin/German
6. Triangular Belt: Nestal Henan

Technical index:

Model 1800 2200 2500
Efficient width 1850mm 2250mm 2550
Min. slitting width 135mm
Min. creasing width 0mm
Blade model Φ260*158*1.3mm
Creasing roller model 上(up)φ238mm下(down)φ130mm
Changing order time (servo type) 1-3s
Changing order time (frequency converter type) 3-8s
Correction range ±100mm
Precision ±0.5mm
QTY of blade/scorer 5/8 6/10 7/12
Power(pre-creasing) 20kw 24kw 25kw

Computerized Thin Blade Slitter Scorer Machine Corrugated Paper Slitting Creasing

Computerized Thin Blade Slitter Scorer Machine Corrugated Paper Slitting Creasing
