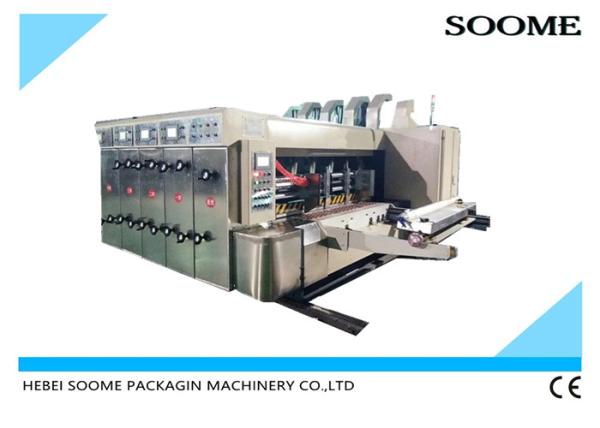

Automatic Digital 3 Color Flexo Printing Machine For Corrugated Carton Box
Automatic Digital 3 Color Flexo Printing Machine For Corrugated Carton Box
Automatic Digital 3 Color Flexo Printing Machine For Corrugated Carton Box
Automatic Digital 3 Color Flexo Printing Machine For Corrugated Carton Box
Automatic Digital 3 Color Flexo Printing Machine For Corrugated Carton Box
Automatic Digital 3 Color Flexo Printing Machine For Corrugated Carton Box
Specifications
Brand Name :
SOOME
Model Number :
SMYS-GZ
Certification :
CE
Place of Origin :
Made in China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, MoneyGram
Supply Ability :
20 sets/month
Delivery Time :
15 days after deposit
Packaging Details :
Wooden case or film
Type :
Flexographic Printer
Condition :
New
Color & Page :
Customize
Automatic Grade :
Automatic
Usage :
Paper Printer, Card Printer
Voltage :
380V
Application :
Carton Box Printing
color :
Optional
Description

Automatic corrugated carton box digital 3 color flexo printing machine

1. Summarize

This is a kind of flexo printing machine for corrugated cardborad printing slotting diecutting and stacking. These are the front procedures of colorful cartons forming.

The words and images to be printed are first made into a printing plate, mounted on a printing machine, and then the ink is coated manually or by a printing machine on the plate where there are words and images, and then directly or indirectly transferred to the paper or other substrate, so as to reproduce the same printing plate.

2. Fetures and Characteristics

1) Multiple function control with touch screen and PLC, reliable system, low failure rate, simple operation. 2) This machine with the function of automatic zero, auto version adjustment, memory recovery, paper skip feeding, auto lifting falling edition, etc. 3) Machine clutch controlled by electric, set with alarm bell. 4) Pneumatic interlocking device. 5) Leading edge paper feeder mechanism can reduce the blocking phenomenon greatly in the process of cardboard feeding. 6) With surface grinding on the steel pipe,pressing checkered, chrome plating. 7) Dynamic balancing correction, stable operation. 8) Cooperated with pneumatic lifting device.

3. Technical Parameters

SPECIFICATIONS
Parameter Unit Model
Inner width mm 2600
Max. Paper size mm 1300*2300
Max. Printing size mm 1250*2200
Interval feeding size mm 1400*2300
Max. speed pcs/min 150
Economic speed pcs/min 0~120
Standard plate thickness mm 7.2
Cardboard thickness mm 2~11
Min. Slotting interval mm 165*165*165*165
Max. Slotting depth mm 320
Voltage mm 380V

Automatic Digital 3 Color Flexo Printing Machine For Corrugated Carton Box
