Specifications
Brand Name :
SOOME
Model Number :
SMBD-JZ
Certification :
CE
Place of Origin :
Made in China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, MoneyGram
Supply Ability :
40 sets per month
Delivery Time :
14 days after deposit
Packaging Details :
wooden case or film
Application :
Machinery & Hardware, Device
Condition :
New
Warranty :
1 YEAR
Automatic Grade :
Automatic
Packaging Type :
Film, Case
Driven Type :
Electric
Voltage :
220V/380V/440V
Power :
9.5kw/13.5kw
Description

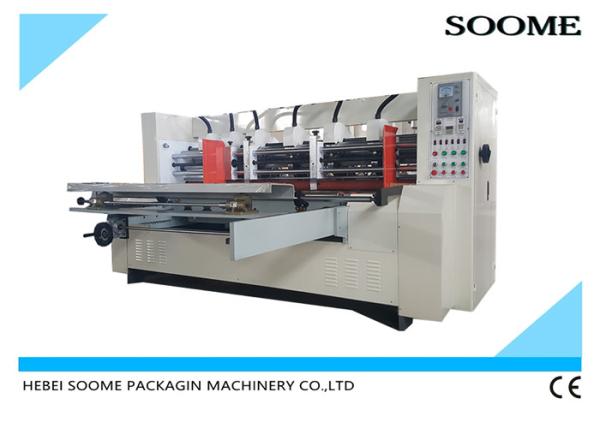

Automatic Lead Edge Feeding Thin Blade Slitter Scorer Machine With Slitting Creasing

1. Summarize

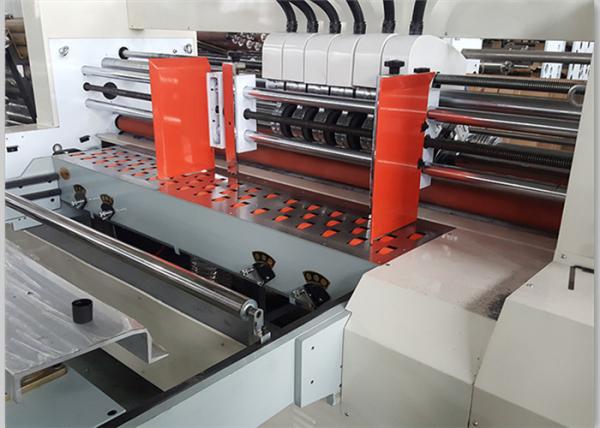

Adjust the baffle size by lead screw, easy to operate. It can set processing paper quantity, automatic stop the feeding after finishing. Automatic

lead edge feeder with adsorption feeding, improve the operation security, reduce the labor intensity. Electrical adjustment of the slitting blade

work width, automatic locking, dual guide shafts, dual locking air cylinder, steady running, easy to adjust. Has the inlay o-ring seal, dust proof,

reduce the failure rate.

2. Features and Functions

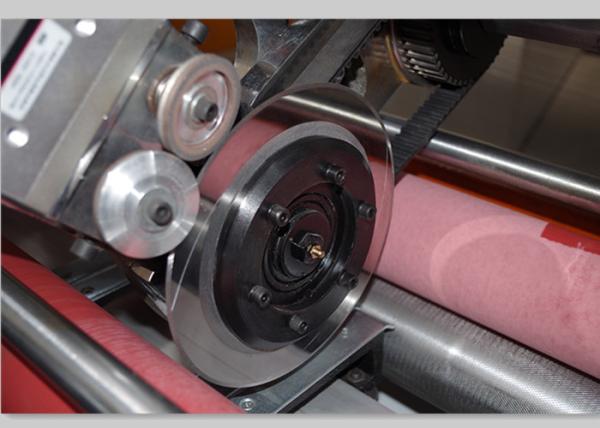

1. Slitting part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr.

2. Adopt 8 shafts design, two shafts in front and back of the slitter, can minimize the length of paperboard machining to 260mm.

3. 8 shafts with front-scoring feeding,back double rubber rollers for paper leading, running more steady.

4. Scoring part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet.

5. Grinding part: adopt automatic and manual two kinds pneumatic grinding type, it could be grinding when working, improve work efficiency.

3. Technical Parameters

Type SMBD-JZ-1800 SMBD-JZ-2000 SMBD-JZ-2500 SMBD-JZ-2700 SMBD-JZ-3000
Effective width 1600mm 1800mm 2300mm 2500mm 2800mm
Speed 140m/min 140m/min 140m/min 140m/min 140m/min
Total power 3kw 4kw 5kw 5kw 5kw
Min.Slitter spacing 120mm 120mm 120kw 120kw 120mm
Min.Scorer-spacing 30mm 30mm 30mm 30mm 30mm
Min.Paper length 260mm 260mm 260mm 260mm 260mm

Dimensions

L*W*H (mm)

 2440*770*1350 2640*770*1350 3140*770*1350 3340*770*1350 3640*770*1350
