Offline Corrugated Thin Blade Slitter Scorer Machine Packaging Making Machine
Offline Corrugated Thin Blade Slitter Scorer Machine Packaging Making Machine
Offline Corrugated Thin Blade Slitter Scorer Machine Packaging Making Machine
Offline Corrugated Thin Blade Slitter Scorer Machine Packaging Making Machine
Offline Corrugated Thin Blade Slitter Scorer Machine Packaging Making Machine
Offline Corrugated Thin Blade Slitter Scorer Machine Packaging Making Machine
Offline Corrugated Thin Blade Slitter Scorer Machine Packaging Making Machine
Offline Corrugated Thin Blade Slitter Scorer Machine Packaging Making Machine
Specifications
Brand Name :
SOOME
Model Number :
SMBD-JZ-2500
Certification :
CE Certificate
Place of Origin :
Made In China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 Sets/Month
Delivery Time :
2 Months After Deposit
Packaging Details :
Wapped With Film
Condition :
New
Color :
Customized
Speed :
Manual Control
Warranty :
1 Year
Application :
Cardboard Slitting
Bearing Brand :
HRB
Blade QTY :
3-10
Creasing QTY :
4-18
Description

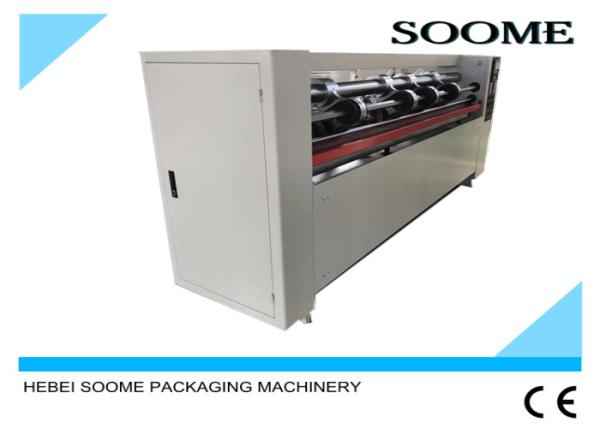

Offline Corrugated Thin Blade Slitter Scorer Machine Packaging Making Machine

Summarize

Thin blade slitter scorer used for cutting corrugated cardboard,adopt high quality tungsten steel blade,sharp and long work-life,slice tidy.5 points scoring,scoring distance in-phase adjust,blazonry and easy to bend carton sheet.Min.the length of paperboard is 260mm.

Feature

1. Adjust the baffle size by lead screw, easy to operate.

2. Can set processing paper qty, automatic stop the feeding after finishing.

3. Automatic adsorption feeding, improve the operation security, reduce the labor intensity.

4. Suitable to the long paper slitting creasing.

5. Electrical adjustment of the slitting blade work width, automatic locking, dual guide shafts, dual locking air cyliner, steady running, easy to adjust. Has the inlay o-ring seal, dust-proof, reduce the failure rate.

6. Slitting part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr.

7. Adopt two rubber rollers in front and back of blades, make sure the paper will not run inclined.

8. Customers Can choose automatic or manual sharpening of blade.

9. Stacker : electrical adjustment of the back guard size as per paper height; Automatic lifting up and down as per settled paper piling height.

10. Use high quality paper pressing strip, make sure to pile up tidy.

Technical parameters

Type

SMBD-JZ-2000

SMBD-JZ-2500

SMBD-JZ-3000

Effective width

1800mm

2300mm

2800mm

Min.slitter-spacing

120mm

120mm

120mm

Min.scorer-spacing

30mm

30mm

30mm

Min.paper length

260mm

260mm

260mm

Total power

3KW

4KW

4KW

Dimensions L*W*G

2600*750*1400mm

3100*750*1400mm

2600*750*1400mm

Offline Corrugated Thin Blade Slitter Scorer Machine Packaging Making Machine
