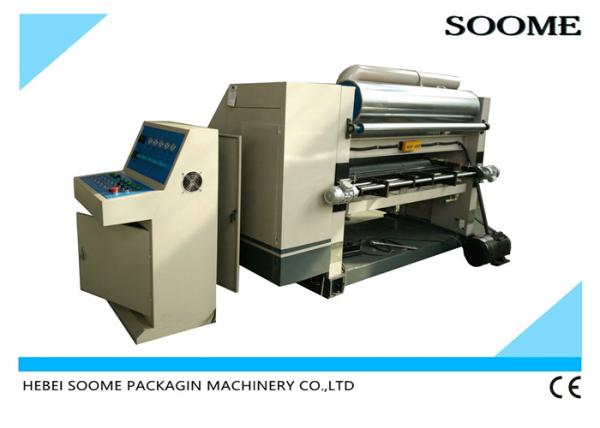

Single Face Automatic Corrugation Machine With Oil And Steam Controlling
Single Face Automatic Corrugation Machine With Oil And Steam Controlling
Single Face Automatic Corrugation Machine With Oil And Steam Controlling
Single Face Automatic Corrugation Machine With Oil And Steam Controlling
Single Face Automatic Corrugation Machine With Oil And Steam Controlling
Single Face Automatic Corrugation Machine With Oil And Steam Controlling
Specifications
Brand Name :
SOOME
Certification :
CE
Place of Origin :
Made in China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, MoneyGram
Supply Ability :
30 sets per month
Delivery Time :
14 days after deposit
Packaging Details :
wooden case or film
Condition :
New
Machine Type :
corrugated paper making
Heating source :
steam/oil
Max.Design speed :
100-200m/min
Work Width :
1600mm/1800mm/2000mm/2200mm
Description

Single Face Automatic Corrugated Machinery With Oil And Steam Controlling

1. Summarize

Corrugated cardboard production line is the professional equipment for producing corrugated cardboard. The production line
consists of the mill roll stand, liner( medium paper ) pre-heater, single facer machine, conveyor bridge , gluing machine, double facer machine, slitter scorer, cut-off, conveyer and stacker, heating system, air compression system and glue making system and so on.

2. Features and Characteristics

1) Design speed :120-180m/min
Effective width:1400-2500mm

2) Corrugated roller diameter:

Vacuum suction type pulling cardboard with wind control device.

3) Glue roller and fixed roller are designed to groups guide way slippage load-unload, convenient and swift.
Used gimbal drive with independent gear box, transmission more stable, close style gear transmission oilness lubricated, prolong
the use life of gear.

4) The upper corrugating roller, pressure roller and glue roller adopt pneumatic control.

3. Technical Parameters

Type G-150/C-150/A-150/O-220
Dia.of flute roller 280mm/320mm/360mm/380mm
Work width 1600mm/1800mm/2000mm/2200mm
Heating source oil/steam/electricity
Voltage 380
Speed customized

Single Face Automatic Corrugation Machine With Oil And Steam Controlling
