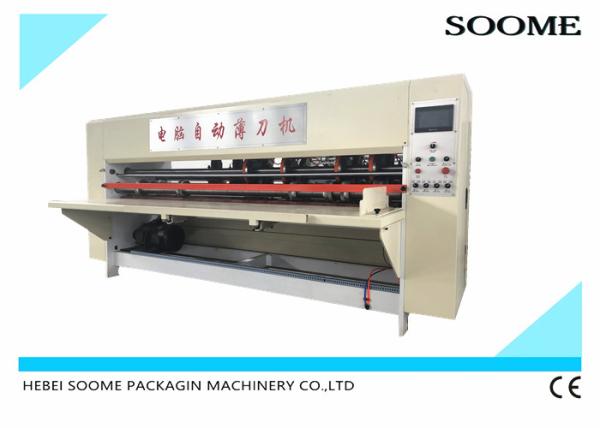

Corrugated Box Making Machine Thin Blade Corrugated Cardboard NC Type

1. General introduction:

This machine apply to the corrugated cardboard slitting and scoring in the production line. The cardboard can be cut into the required width and the crease line can be pressed out at the same time .The perfect slitting crease of the cardboard come out .

2. Function and Features :

1. Change order fast, 1-3 seconds for changing order

2. The indentation depth can be adjusted electrically, perfect easy to bend
3. By the high-quality imports of industrial computers and high-performance programmable controller configuration, lower computer control system.
4. Three kinds of pressure line forms: convex on concave (three lines), convex on the concave (five lines), convex on the flat, all three pressure lines can form an electric conversion. Creasing wheel depth by computer control, linear, easy to bend.
5. Using a thin tungsten steel alloy blade, blade sharp, long life of more than 8 million meters.
6. Brothers of computer control, automatic or manual knife sharpener, you can trim the edge of the Brothers, improve production efficiency.
7. Imported synchronous drive unit, semi-precision, long life, low noise operation.

8. Front and rear pressure lines,realizes minimum scorer spacing is 0mm.

9 The whole machine is motorized moving left-right .

10. Ball bearing more , higher precision, higher speed.

11. Option: Two electrically adjusted waste suction mouth.

12. Design speed 200m/min. Can automatically track the line speed and maintain production line speed, facility to connect with management system.

3. Main function :

a) Electromagnetic adjustable-speed motor. After the deceleration of a belt, chain drive to the host work. The operation is reliable and stable.

b) This machine has automatic sharpening system. Each blade has independent control of the sharpening switch. In order to extend the blade life effectively, you can according to the production quantity adjust the sharpening interval time.

c) This machine blade adopt tungsten steel material. It has high quality and long life

d) The slitting blade has culet and rolling bearing design, and adjust very flexible and convenient.

e) The feeding part has pre-pressed wheel design. Creasing part is 3mm width design. That can ensure the paper board without crack and the poly-lines as a straight angle when the creasing.

4. Technical paramete:

5. Details:
