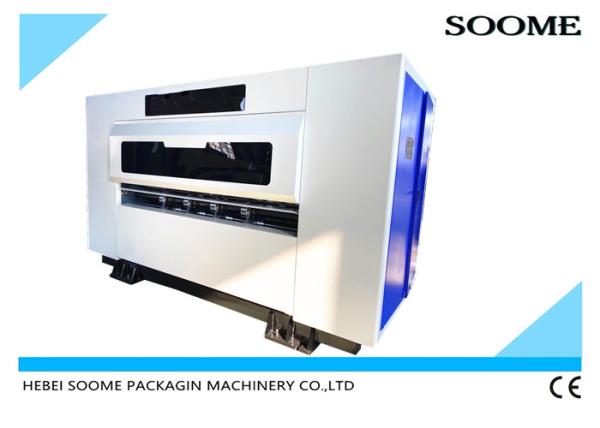

Thin Rotating Blade Slitter Scorer Corrugated Paperboard Machine CE Certification

Thin Rotating Blade Slitter Scorer Corrugated Paperboard Making Machine

The machine as an important part of the production line of corrugated cardboard, is used to complete the corrugated board cutting and indentation.

Slitting Details:

Thin knife pressure group adopts a novel thin blade high speed cutting board, flat cut, smooth, not cracked, collapsed; pneumatic knife; Blade adopt HT200 Casting material, solid and strong. The realization of the production process in Full automatic, Automatic grinding in two ways, grinding time and the interval time can be set to ensure that the blade sharp edge

Computer control system:

New Human Machine Interface, Computer-controlled sharpening system, a knife can be set individually for any length of time grinding. Orders can be entered, modified, eliminating, The screen displays all kinds of production information.Remote control can be achieved to help solve the problem

Main board system:

Using button to double control knife moving, grinding, cutting. Convenient and efficient. The whole machine is equipped with an electric axial displacement device, which can effectively cope with the offset of the paper web. Never stop under the high speed operating production line when you change roll paper, adjusting in the main computer control system

Operating in Line:

Corrugated slitter scorer machine to make cardboard boxes in production line design speed can reach to 180m/min, with servo motor driving to keep cardboard slitting complete and stable straight. system with automatic detection function can prevent abnormal use and operation of the equipment caused by negligence. With newest metal net design to prevent destruction and easy to maintain

Machine characteristic

1. Knives suitable diameter:200~240mm

2. Fall knives type:independent fall knives

3. Lower knives roller:replace the knives seat(national patent)

4. Upper Creasing wheel outer diameter 180mm

5. Lower Creasing wheel outer diameter 180mm

6. Fall line type:whole fall line

Computer control system:

Human-computer interface

Large order capacity store

It can be order entering,revise,cancel

Computer control Grinding system, Time and frequency of grinding blade of any can be setted independently

The cutting and Creasing dimensional discrepanc can be corrected by the computer;

The computer can adjust the working performance of the machine each system

Technical index:
