Specifications
Brand Name :
SOOME
Model Number :
SMZX-BZD-2800
Certification :
CE
Place of Origin :
Cangzhou, China
MOQ :
1set
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
30sets per month
Delivery Time :
30-35days after deposit
Packaging Details :
Wrapped with film or in wooden case
Application :
Corrugated cardboard folding gluing into cartons
Feeding pile height :
1000mm
Max. sheet length :
2650mm
Min. sheet length :
900mm
Max. sheet width :
1400mm
Min. sheet width :
280mm
Voltage :
220 / 380 / 440V as per different countries
Power :
2.2kw
Machine speed :
60m/min.
Machine color :
Customized
Description

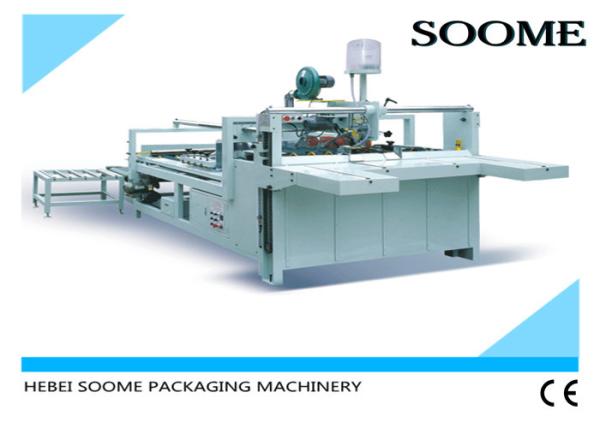

Corrugated Box Making Machine Automatic Folder Gluer Stitcher For Cartons Pasting

I. General introduction

Semi automatic folder gluer is a kind of folder gluer machine. It is manually feeding of sheets one by one, before feeding, need to fold it by manual, then machine offer glue and press to paste well, stacking into piles and conveying out for packing.

This machine can save labor cost and time for gluing than manual glue box. But much lower speed than automatic folder gluer. It is economical type machine for customer choosing.

II. Usage and Features

This machine is suitable to various kinds of corrugated cartons folding gluing. Easy to operate and learn, no need experienced workers. Order changing fast within one minute.

The min. width and height of finished box can reach to 260mm which is a good choice for carton manufacturer.

III. Main structure

Composed of main machine frame, 2 small conveyor frames.

Main machine frame

Machine frame, ascend and descend worktable, front part convey equipment, front part correction equipment, middle part convey equipment, middle part press together equipment, finished product side output equipment, electrical controlling device.

Electric elements and material

Adopted imported electrics, Simens electric appliance, Omron optoelectronic switch, TOKY counter, Taiwan MEANWELL switch power supply.

Alloy gluer head is acid and alkali resistant, long working life. The motors all adopted Taiwan Shengbang motor except air blower and lifting motor.

IV. Technical parameters

Model SMZX-BZD-2600 SMZX-BZD-2800
Max. sheet length 2460mm 2650mm
Min. sheet length 900mm 900mm
Max. sheet width 1400mm 1400mm
Min. sheet width 280mm 280mm
Motor power 2.2kw 2.2kw
Machine speed 60m/min 60m/min
Machine weight 2T 2.3T
