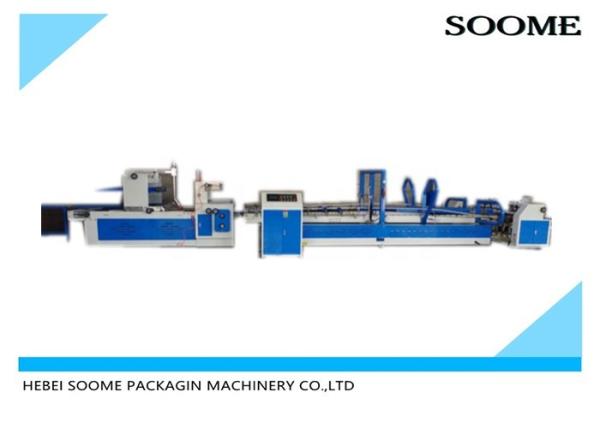

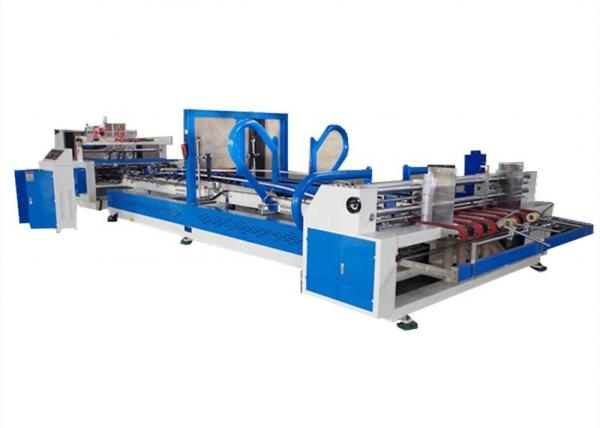

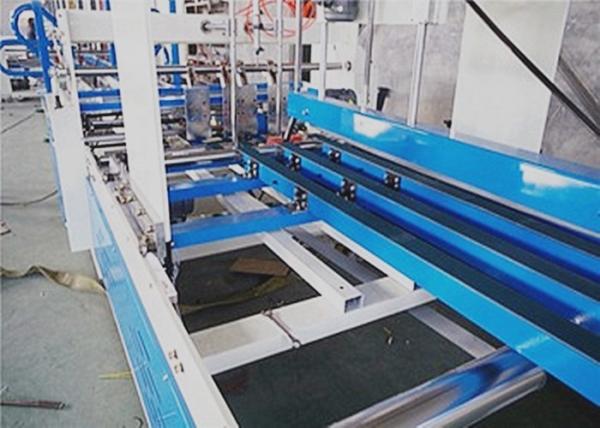

120m/Min Corrugated Paperboard Folder Gluer Machine
120m/Min Corrugated Paperboard Folder Gluer Machine
120m/Min Corrugated Paperboard Folder Gluer Machine
120m/Min Corrugated Paperboard Folder Gluer Machine
120m/Min Corrugated Paperboard Folder Gluer Machine
120m/Min Corrugated Paperboard Folder Gluer Machine
Specifications
Brand Name :
SOOME
Model Number :
SMZXJ-2200
Certification :
CE
Place of Origin :
Hebei, China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, MoneyGram
Supply Ability :
25 sets/month
Delivery Time :
14 days after deposit
Packaging Details :
Wooden case or film
Type :
Automatic Folding Gluing Machine
Condition :
New
Color :
Customized
Driven Type :
Electric and pneumatic
Description

ZXJ Full-auto Corrugated Paperboard Folder Gluer Bunding Machine

1. Summarize

The box gluer is generally composed of a paper feeding part, a correction part, a mark line shaping part, a gluing part, a folding part, and a counting discharge part. The box gluer in the general sense refers to the equipment in which the entire box forming process of the corrugated cardboard is completed by machinery, excluding simple gluing devices that are folded and corrected by manpower.

2. Features and Functions

1)Adopt imported paper conveying belt with suction fan, and the automatic stacker assured the smoothly paper feeding.

2)The glue box can be moved left and right as per the shape of cartons.

3)Indentation wheel, indentation blade, side wheel, flap plate can adjust the cartons right and tidy.

4)The flap plate can adjust the cartons right and tidy.

5)The corresponding piling qty can be settled on the display screen.

6)Put the cartons into the automatic strapping unit manually.

7)Second strapping procedure, use pneumatic to make the “+” or “=” type, have the tidying up and pressing function (optional).

3. Technical Parameters

Model SMZXJ-2200
Max. Paper size (mm) 900*2200
Min. Paper size (mm) 250*700
Speed (m/min) 0~120
Power (kw) 7.5
Dimensions (mm) 13500*2600*1800
Weight (T) 5.2

120m/Min Corrugated Paperboard Folder Gluer Machine
