Specifications
Brand Name :
SOOME
Model Number :
SMPL
Certification :
CE
Place of Origin :
Made in China Hebei
MOQ :
1 Set
Price :
Contact
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50 Sets/year
Delivery Time :
90 Days
Packaging Details :
Wooden case or plastic film, 5*40' container
Warranty :
One year
Packaging Material :
Plastic And Wood
Driven Type :
Electric
Key Selling Points :
Energy Saving
Color :
Depending On The Client
Condition :
New
Automatic Grade :
Automatic
Voltage :
Customer's Demand
After-Sales Service :
Online Support, 24 Hours Online Service
Usage :
Making corrugated Cardboard
Description

Fully Automatic Corrugated Box Production Line 5 Ply Corrugation Machine

Model

Name

QTY

Feature

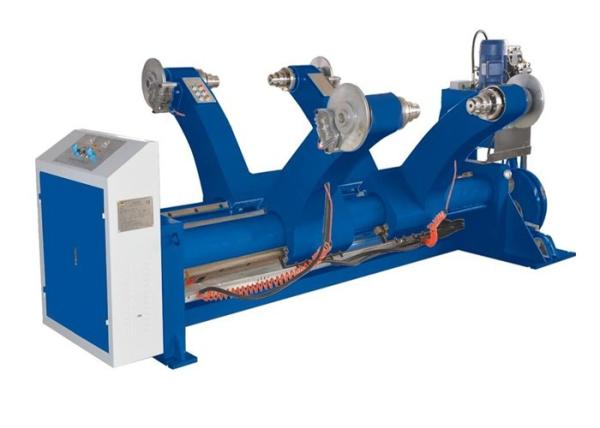

HB-I

Hydraulic Mill Roll Stand

( with trolly and track)

5SET

Main shaft diameter is 242mm,doublecurve heavy rocker arm, tooth clip,mulitpoint brake, hydraulic lift, left and right translation.
Guide rail length is 6000 mm, the car uses 10 mm plate welding
SP-1- 600

Pre-heater

4SET

The roller ￠600 mm, including the pressure vessel certificate; electric adjustment angle; angle can be adjusted within the range of 360 °

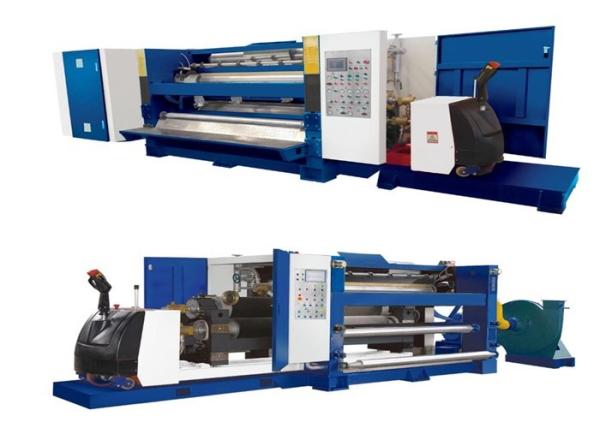

320CR

Single Facer

2SET

Corrugated diameter is 320mm, 48CrMo high quality alloy steel; Adopt independent gearbox, universal joint drive structure; Airbag ballast structure, PLC automatic control glue; Steam heating
SP-3-600

Triplex Pre-heater

1SET

The roller ￠600 mm, including the pressure vessel certificate; electric adjustment angle; angle can be adjusted within the range of 360 °
CGM-F

Duplex Gluer

1SET

Glue roller dia. Is 269mm,carved 25 line pit type checker；Each layer of the independent variable frequency motor drive, glue clearance controlled by PLC and man-machine interface; Glue quantity of digital display.
OHB

Duplex Conveying Bridge

1SET

Main girer is 200mm box iron,independent frequency conversion motor drive paper transport, adsorption tension. Electric correction.
HPM

Double Facer

1SET

Hot plate 600 mm * 16 pcs; press rollers lift by pneumatic,compressed press rollers structure

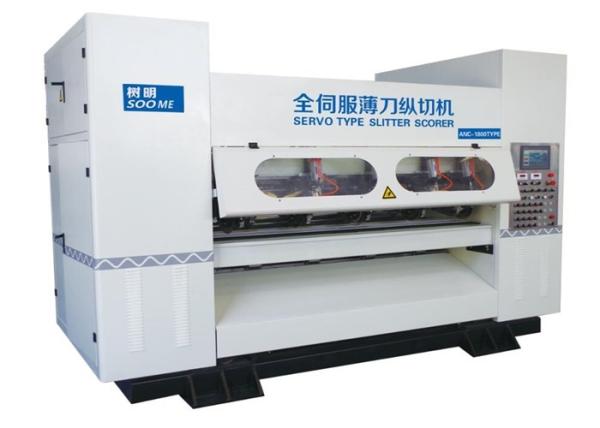

NTKM

NC Thin Blade Machine

1SET

Sharping by computer, PLC control; Automatic follow the plant speed; Adopt tungsten carbide knive
NC-120

Duplex NC Cut-Off

1SET

Full AC servo control, braking is energy storage type, suplex spiral cutter structure, oil-immersed gear transmission, a 10.4 -inch touch screen display.

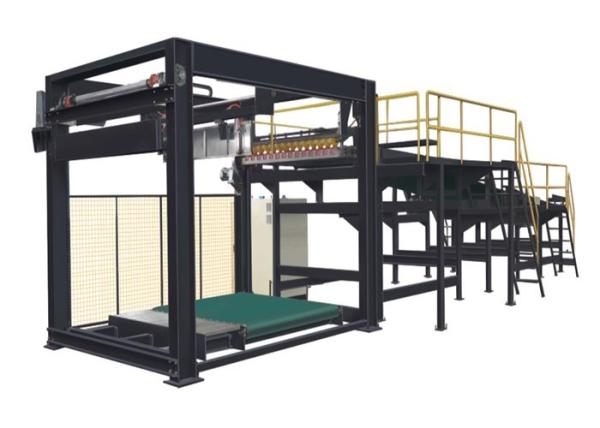

SMA

Duplex Automatic stacker

(Gantry type)

1SET

Duplex belt type stacking platform, AC servo control movements；Automatic paperboard side delivery when reach the setting quantity.
ZJZ

Glue Making System

1SET

Customer supply
ZA

Internal Steam System

1SET

Steam system components adopt GB valva; Contains rotary joint, up and down distributor , drain valve,steam trap and pressure gauge, etc.; Boiler and piping supply by customer

MAIN SPECIFICATION

MODEL: SM150-1800-5 LAYER CORRUGATOR LINE

1. Manufacture width: 1800mm

2. Design speed: 150m/min Working speed:120m/min

3. Note: The roll paper which is used to test the production speed should meet following requirements:

* Grade: Min. B * Moisture content: 11% ± 2%

* Face paper: 100~250g/m2 * Liner paper: 100~150g/m2

* Corrugated paper: 100- 200g/m2

4. Flute profiles: B,C ,E flute(as per clients request)

5. Steam requirements

Steam consumption:2500kg/h Air compressor pressure:0.8~1.1Mpa

6. Electricity: 380V, 50Hz,three-phase four wire type

7. Equipment Direction:Left or Right transmission will be according to client’s requirements.

8. Factory request size:specific length as to the foundation of drawing
