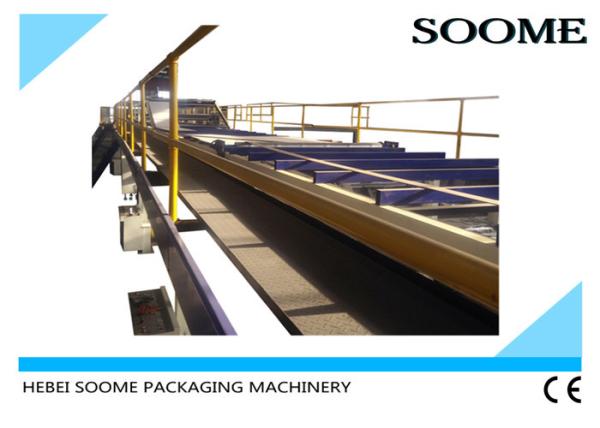

7 Ply Corrugated Cardboard Production Line , Micro Sheet Making Machine
7 Ply Corrugated Cardboard Production Line , Micro Sheet Making Machine
7 Ply Corrugated Cardboard Production Line , Micro Sheet Making Machine
7 Ply Corrugated Cardboard Production Line , Micro Sheet Making Machine
7 Ply Corrugated Cardboard Production Line , Micro Sheet Making Machine
7 Ply Corrugated Cardboard Production Line , Micro Sheet Making Machine
Specifications
Brand Name :
SOOME
Model Number :
SMPL
Certification :
CE
Place of Origin :
Cangzhou, China
MOQ :
1set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
20sets per year
Delivery Time :
2.5-3months after deposit
Packaging Details :
Wrapped with film
Usage :
Corrugation machine for producing cardboard sheet
Working width :
1400-2500mm
Flute type :
A / C / B / E flute as your need
Design speed :
180m/min.
Economic speed :
120-150m/min.
Automation :
Automatic
Engineer service :
Engineer can install and train overseas
Voltage :
220 / 380 / 415 / 400 V
Warranty :
One year
Electrics :
Schneider / CHINT / DELTA, etc
Description

7 Ply Corrugated Cardboard Production Line , Micro Sheet Making Machine

I. General introduction

This line is the special equipment for corrugated board production.It mainly includes paper holder,single facer,conveyor bridge,glue machine,double facer,slitter,cut-off,stacker,and steam(or oil)heating system and glue preparing and supplying system.We offer corrugated lines of advanced,medium and simple level,for single wall,double wall and triple wall board production,with speeds varying from40 m/min to 200 m/min.,widths available from 1400mm to 2500mm.

II. Line composition

Design speed: 180m/min. Economic speed: 150m/min. for 3-layer sheet

120m/min. for 5-layer sheet
No. Name Size Configuration Qty.

1

 Hydraulic Mill Roll Stand Φ1600mm Welding model, with expansion clip and pneumatic brake 5
Rails & Trolley Standard 10
2 Single Facer Φ320mm With alloy steel flute rollers, variable-frequency motor, with gluing width electrically adjusted 2
3 TO-B Dual-layer Overbridge Adsorbed type and deviation electrically corrected 1
4 PH-C Single-roller Pre-heater Φ1000mm With wrap angles electrically adjusted 4
5 PH-B Three-roller Pre-heater Φ1000mm With wrap angles electrically adjusted 1
6 PM-C Dual-roller Pasting Machine Φ210mm With shaft loading 1

7

 DF-C Double Facer 30″standard channel and hot plate 600mm×16pcs With intensive pressure roller, pressure shaft hydraulic lifting, 2 piece of cotton belts, universal joint drive, cooling part: 4m 1
8

Computerized online slitter

 1800mm model

4blades 6scorers, electrical blades, manual scorers

 1
9 SC-B Helical-knife NC Cut Off Φ188mm Standard 1
10 Basket type stacker Standard 1
11 Glue Making System Standard 1

12

 Air Source System

Steam Tank 0.6m³

 Standard 1
Air Storage System With pressure meter and air-water separator

III. FAQ

1. Q: Are you the trader or manufacturer?

A: We are the manufacturer with export qualification.

2. Q: Do you make OEM?

A: Yes, we can do.

3. Q: Where are your factory located in ?

A: We are in Dongguang town, Cangzhou city, Hebei ,China.

4. Q: Where is the nearest airport of factory ?

A: The nearest airport is in Tianjin,Jinan and Beijing. It take 4 hours from Beijing to Dongguang by car.

5. Q: Where is the nearest high-speed train station? How long from high speed train to factory ?

A: Cangzhou West station is the nearest one,from Beijing to Cangzhou ,take 1 hour.

6. Q: What is your business process?

A: Talking about clients requirements, confirm machines,make sales contract,pay for deposit, supplier arrange production, finish producing machines,buyer test machines, buyer pay for the balance payment,supplier load and ship machine.

7. Q: How to control machine quality ?

A: 1. Our company have strict quality control system from production to delivery since we already established for 23 years.

2. All material are environmental protection,non-pollution.

3. We have professional technician for supervising to production.

4. Have professional department to examine about every production process.

8. Q: Engineer can go abroad for debugging machine?

A: Our engineers can go abroad for debugging machine,buy need buyer to bear the engineers round trip ticket,room and board, 100usd/day for salary.

IV. Detailed photos

7 Ply Corrugated Cardboard Production Line , Micro Sheet Making Machine7 Ply Corrugated Cardboard Production Line , Micro Sheet Making Machine
