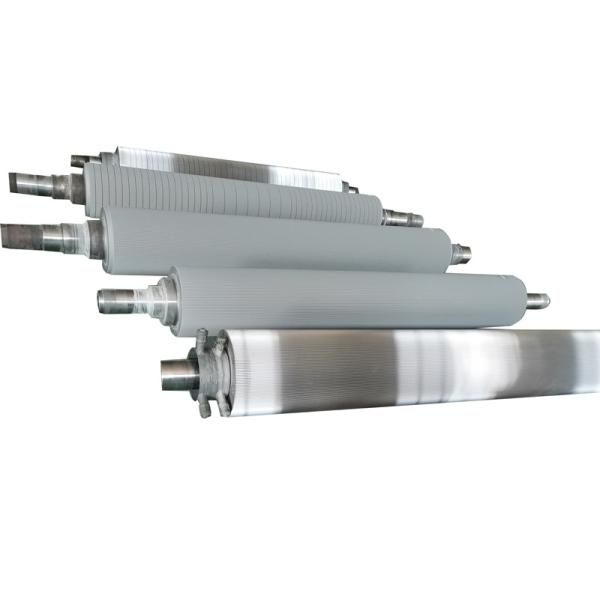

50CrMo B Flute HRC59 Hard Chrome Plated Corrugating Roll
50CrMo B Flute HRC59 Hard Chrome Plated Corrugating Roll
Specifications
Brand Name :
YH
Place of Origin :
Made in China
MOQ :
1set
Payment Terms :
T/T
Supply Ability :
1500 sets per year
Delivery Time :
60-90 days
Packaging Details :
Wooden Boxes
Certification :
ISO9001
Material :
50CrMo precision forged alloy steel
Coating :
Hard Chrome 60-80μm
Steel wall thickness :
≥70mm
Heating treatment :
Intermediate frequency quenching
Hardness :
HRC59-62 after hardening
Flute type :
B Flute
Warranty :
8 million linear meters
Refurbish :
3-4 times
Description

B Flute Hard Chrome Plating Traditional Corrugating Roll Wear Resistant Roll


Hard chrome corrugated roll:

♦ 50CrMo alloy steel refined forging, barrel wall thickness ≥70mm

♦ Adopt advanced heat treatment technology, quenching hardness ≥HRC58

♦ Precision machine to do multi-layer process

♦ Hard chrome thickness 0.06-0.08mm,

♦ Lifetime more than 8 million meters

♦ A,C, B, E,F G, N flute

Appliation:

Corrugating roll is one of the most important components in corrugated carton production. Usually, it is an essential part of single facer. Corrugating rolls consist of two parts: upper roll and lower roll. The lower corrugating roll is the driving roll, which is generally fixed while the upper one is the driven roll.

Precision Index of Hard Chrome Corrugated Roller

Item Index
Gear teeth height limits of deviation ≤ 0.01mm
Addendum circle run out tolerance ≤ 0.02mm
Gear teeth width limits of deviations ≤ 0.015mm
Tooth profile limits of deviations ≤ 0.01mm
Gear lateral face counter shaft parallelism ≤ 0.01mm
Tip cylinder element linear ≤ 0.01mm
Gear teeth division limits of deviations ±10"

50CrMo B Flute HRC59 Hard Chrome Plated Corrugating Roll
