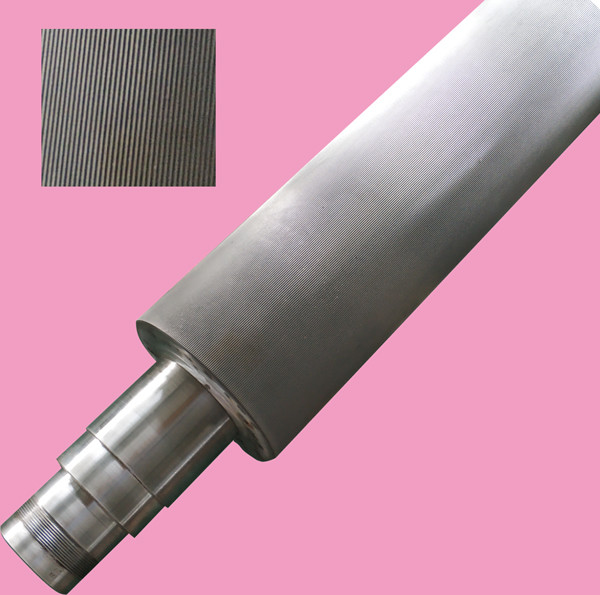

G Flute 0.6 mm Alloy Steel Hard Chrome Plated Corrugated Roller
G Flute 0.6 mm Alloy Steel Hard Chrome Plated Corrugated Roller
G Flute 0.6 mm Alloy Steel Hard Chrome Plated Corrugated Roller
G Flute 0.6 mm Alloy Steel Hard Chrome Plated Corrugated Roller
G Flute 0.6 mm Alloy Steel Hard Chrome Plated Corrugated Roller
G Flute 0.6 mm Alloy Steel Hard Chrome Plated Corrugated Roller
Specifications
Brand Name :
YH
Model Number :
1200-230
Place of Origin :
Made in China
MOQ :
1set
Price :
$4000-$20000/set
Payment Terms :
T/T
Supply Ability :
1500 sets per year
Delivery Time :
60-90 days
Packaging Details :
Wooden Boxes
Certification :
ISO9001
Material :
50CrMo precision forged alloy steel
Coating :
60-80μm Hard Chrome
Size :
1200mm*230mm
Heating treatment :
Intermediate frequency quenching
Hardness :
>HRC58 after hardening
Harden layer depth :
8-12mm
Flute type :
G flute 0.6 mm
Warranty :
3 million meters
Description

G Flute Corrugated Hard Chrome Plated Roller for Indian Single Facer

Introduction:

--The largest professional corrugated roller manufacturer in northern of China
--50CrMo refined forging steel supplied by the best manufacturer in China.
--A, C, B, E, F, G, N flute corrugated rolls
--High Speed can reach to 200m/min
--Hard Chrome 0.06-0.08mm
--Medium frequency quenching heating treatment machine makes --the hardness of base steel more than HRC58 and harden layer 8-12mm.
--High precision and high performance CNC grinding machine equipped with Germany Siemens control system.
--We design the flute profile according to customer’s medium paper GSM, speed, FCT requirement. The flute profile is more reasonable, suitable to customer’s machine
--Our corrugated rollers has been exported to many countries such as Korea, Russia, Egypt, India, Thailand, Myanmar, etc.
--Supply corrugated rollers for all kinds of corrugator line such as Fosber, BHS, BW Paper System, K&H, HSIEH HSU,Fuli, Wanlian, TCY, Champion, West River, Mingwei and so on.
G Flute 0.6 mm Alloy Steel Hard Chrome Plated Corrugated Roller

High Hardness from Vertical Quenching Process
Intermediate frequency quenching can guarantee both the hardness and harden depth we need. Our harden layer depth can reach to 8-12mm. With harder base material as foundation, the lifetime of our corrugating rolls are greatly extended.

Intermediate frequency quenching machine.

Flute Profile
Almost every set of hard chrome plated rollers are needed to be designed and customized separately according to the width, diameter, flute height, corrugated paper GSM, speed and cardboard physical index requirement.

FluteProfileHeight(mm)Pitch(mm)Flutes/300mmT.U.R
AUV4.5-5.08.0-9.534±31.45-1.52
CUV3.5-4.06.8-7.941±31.37-1.47
BUV2.5-3.05.5-6.550±41.33-1.41
EUV1.1-2.03.0-3.593±61.24-1.36
FUV0.8-1.02.2-3.2115±201.19-1.25
GUV0.6-0.81.8-2.8136±201.15-1.20
NUV0.4-0.61.2-2.2193±551.10-1.15
OthersUVCustomizedDesignDesignDesign


Precision Index of Hard Chrome Corrugated Roller

ItemIndex
Gear teeth height limits of deviation≤ 0.01mm
Addendum circle run out tolerance≤ 0.02mm
Gear teeth width limits of deviations≤ 0.015mm
Tooth profile limits of deviations≤ 0.01mm
Gear lateral face counter shaft parallelism≤ 0.01mm
Tip cylinder element linear≤ 0.01mm
Gear teeth division limits of deviations±10"
Smooth finishRa<0.6µm


Contact me:
Bonnie Li

Mobile&whatsapp&Wechat: +86-18661680180
E-mail: bonnenul@yahoo.com
