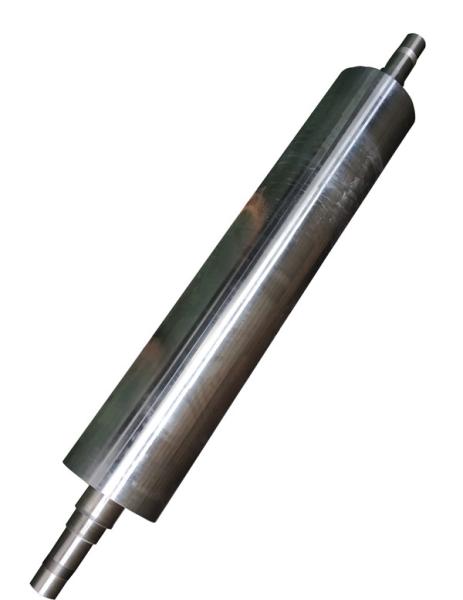

Hard Chrome Pressure Roll for K&H Corrugated Cardboard Making Machine SF-300Q

Precision Welding Can Be Inseparable

Both ends of the roller body should be heated to release the size of the inner bored hole. After the spindle heads are put in, the roller body and the spindle heads should be held tightly after natural cooling. When everything is ready, a driving fit interface has been formed between the roller body and the spindle heads by means of preheating, welding or bolting. Special care should be taken when welding, because finished pressure roller body’s temperature will rise constantly when the roller is running, and the roller body also bears pressure of the steam from the inside of the roller body, which will form the so-called “pressure vessel”. In view of this, the roller body and the spindle heads joint must pass the pressure test. When the welding process finished, the work piece shall be put into the furnace for high temperature tempering to reduce stress.

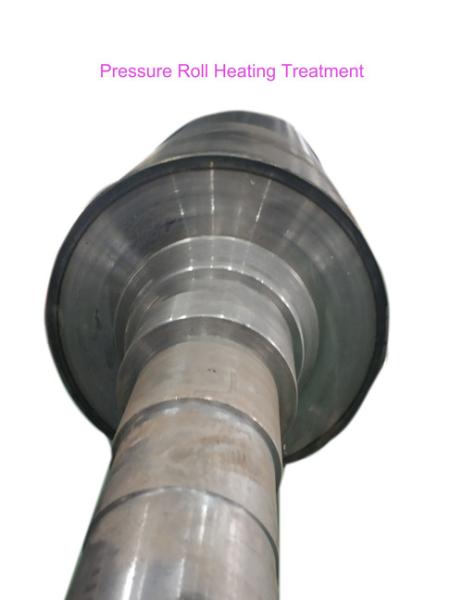

High Hardness from Vertical Quenching Process

Intermediate frequency quenching can guarantee both the hardness and harden depth we need. Our harden layer depth can reach to 8-10mm. With harder base material as foundation, the lifetime of our pressure rolls are greatly extended.


Intermediate frequency quenching machine.

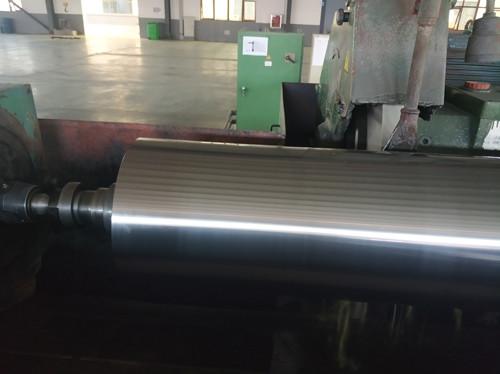

High precison grinding machine.

Package

Main products:Tungsten Carbide corrugating rolls, hard chrome corrugating rolls, pressure roller, glue roll and doctor rolls. The products are mainly sold in China, India, South Korea, Russia ,Thailand, Myanmar, Iran, Egypt and other countries.Therefore, our products are widely recognized by the global customers, which make us gaining sound reputation all over the world.
