45# Steel Corrugator Pressure Roll
45# Steel Corrugator Pressure Roll
Specifications
Brand Name :
YH
Model Number :
2400-495
Place of Origin :
Made in China
MOQ :
1 pcs
Price :
500-10000
Payment Terms :
T/T
Supply Ability :
3000 pcs
Delivery Time :
30-45 days
Packaging Details :
Wooden Boxes
Certification :
ISO9001
Material :
45# steel
Coating :
Hard Chrome
Coating thickness :
50-80μm
Width :
2400mm
Diameter :
495mm
Steel wall thickness :
≥50mm
Heating treatment :
Intermediate frequency quenching
Hardness :
>HRC55 after hardening
Description

Hard Chrome Corrugating Pressure Roll Chinese JS DWB Type Corrugator Machine

Product name Pressure roll
Application Single facer, corrugator machine
Raw material 45# Steel
Heating treatment Intermediate frequency quenching
Hardness ≥HRC 55
Harden Layer ≥7mm
Coating Hard chrome 0.05-0.08mm
Diameter 50-500mm
The roller surface length 100-4000mm
Cylinder run-out accuracy ≤0.02mm
Cylindricity accuracy ≤0.015mm
Dynamic balancing accuracy grade G2.5 G2.5

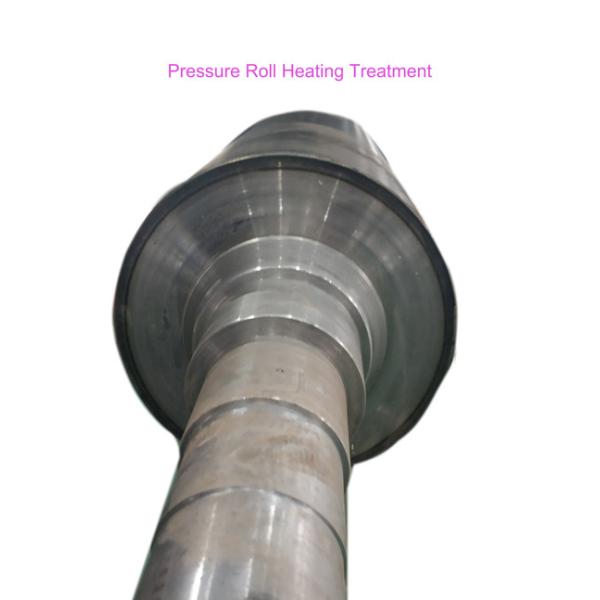

High Hardness from Vertical Quenching Process

Intermediate frequency quenching can guarantee both the hardness and harden depth we need. Our harden layer depth can reach to 8-10mm. With harder base material as foundation, the lifetime of our pressure rolls are greatly extended.

45# Steel Corrugator Pressure Roll

45# Steel Corrugator Pressure Roll

High precison grinding machine.


Package

45# Steel Corrugator Pressure Roll
