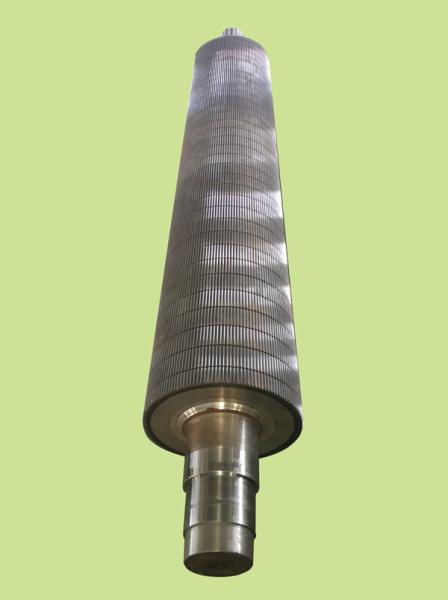

50CrMo Polished Oil Heating B Flute Corrugated Roll
50CrMo Polished Oil Heating B Flute Corrugated Roll
Specifications
Brand Name :
YH
Model Number :
1450-260
Place of Origin :
Made in China
MOQ :
1set
Price :
$4000-$20000/set
Payment Terms :
T/T
Supply Ability :
1500 sets per year
Delivery Time :
60-90 days
Packaging Details :
Wooden Boxes
Material :
50CrMo precision forged alloy steel
Coating :
Hard Chrome 60-80μm
Size :
1450mm*260mm
Heating treatment :
Intermediate frequency quenching
Hardness :
>HRC58 after hardening
Harden layer depth :
8-12mm
Flute type :
Bflute 2.2mm
Warranty :
8 million meters
Certification :
ISO9001
Description

For Dinghao Oil heating Hard Chrome B Flute Corrugated Roller 1400mm Width

Product name Corrugating rolls, corrugated roller
Material 50CrMo
Application Single facer, corrugator machine
Diameter 200-600mm
Width 1000-2800mm
Flute Profile A, C, B, E, F, G, N, O
Heating Treatment Intermediate frequency quenching treatment
Hardness ≥HRC58 after heating treatment, harden layer 8-12mm
Coating Tungsten carbide, hard chrome 0.06-0.08mm
Corrugator line BHS, Fosber, BW Paper System, Hsieh Hsu, K&H, JS, Fuli, Wanlian, Taiwan Mingwei, Chinese Mingwei, Meiguang, Dongguang, Dpack, Xinguang, Xieyang, Shengli, Indian machine, etc.

Strict Selection High Quality Material

Good raw material is an important factor in high quality of corrugating roll. We select the best raw material manufacturer in China. With high strength and toughness, good hardenability, no obvious temper brittleness, 50CrMo alloy steel is specialized material for manufacturing corrugating rolls. Our raw material shell thickness is more than 70mm, the thicker shell can reduce deformation and keep stability during production.

50CrMo Polished Oil Heating B Flute Corrugated Roll

Clean well

1. Don’t wash the corrugating rolls directly when the rolls are hot.

2. After the corrugating rolls cool down, wash the rolls by water or gas.

3. Clean the glue and paper scraps on corrugating rolls after production to avoid scratches of coatings.

4. After cleaning, apply silicon oil on corrugating rolls.

50CrMo Polished Oil Heating B Flute Corrugated Roll

A unique processing with scrupulous attitude:

The shortest quality guarantee of running length can reach 3500mym,with tungsten carbide corrugating roll produced by Meijia.

Multiple repair is available,and the initial designing parameter can be attained after repair. The shortest quality guarantee of running length can reach 3500 mym above.

50CrMo Polished Oil Heating B Flute Corrugated Roll
