E Flute Steam Heating Chrome Plated Corrugated Roller
E Flute Steam Heating Chrome Plated Corrugated Roller
E Flute Steam Heating Chrome Plated Corrugated Roller
E Flute Steam Heating Chrome Plated Corrugated Roller
E Flute Steam Heating Chrome Plated Corrugated Roller
E Flute Steam Heating Chrome Plated Corrugated Roller
Specifications
Hardness :
>HRC58 after hardening
Heating treatment :
Intermediate frequency quenching
Coating :
60-80μm Hard Chrome
Warranty :
6 million linear meters
Flute type :
E Flute 1.7mm
Refurbish :
3-4 times
Size :
1700mm×280mm
Material :
50CrMo precision forged alloy steel
Brand Name :
YH
Model Number :
1700mm×280mm
Place of Origin :
Made in China
MOQ :
1set
Price :
$5000-$15000/set
Payment Terms :
T/T
Supply Ability :
1500 sets per year
Delivery Time :
60-90 days
Packaging Details :

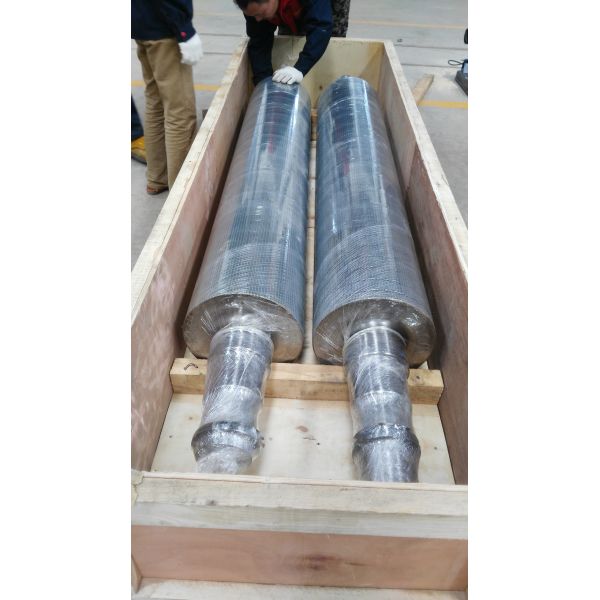

Wooden Boxes
Certification :
ISO9001
Description

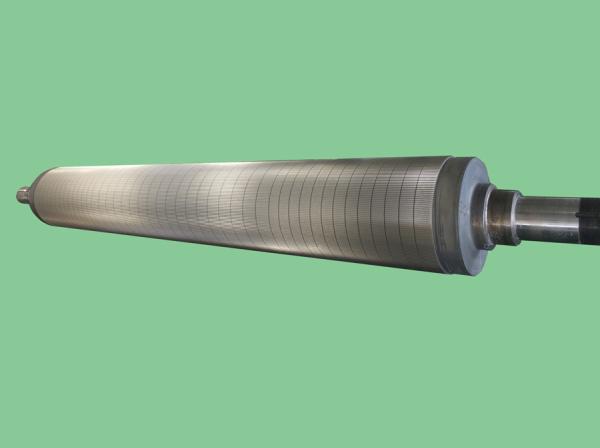

E Flute Steam Heating Hard Chrome Plated Corrugated Roller for Single Facer

Product name Corrugating rolls, corrugated roller
Material 50CrMo
Application Single facer, corrugator machine
Diameter 200-600mm
Width 1000-2800mm
Flute Profile A, C, B, E, F, G, N, O

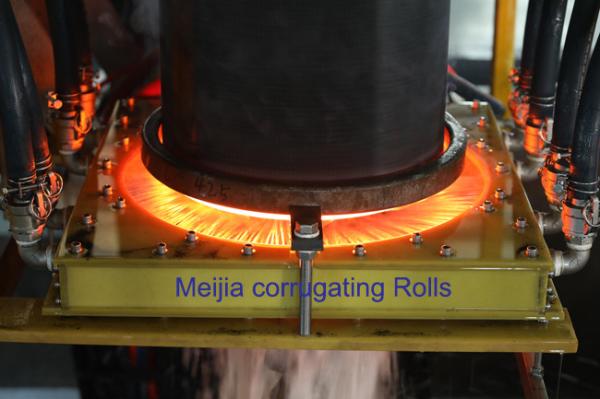

Heating Treatment Intermediate frequency quenching treatment
Hardness ≥HRC58 after heating treatment, harden layer 8-12mm
Coating Tungsten carbide, hard chrome 0.06-0.08mm
Corrugator line BHS, Fosber, BW Paper System, Hsieh Hsu, K&H, JS, Fuli, Wanlian, Taiwan Mingwei, Chinese Mingwei, Meiguang, Dongguang, Dpack, Xinguang, Xieyang, Shengli, Indian machine, etc.


Applications:

Corrugating rolls are the core element of each corrugator and are essentially responsible for the quality of the corrugated board and the productivity of the corrugator.

E Flute Steam Heating Chrome Plated Corrugated Roller

Heat the hard chrome plated corrugated roller well.

A. Start the corrugating rolls before filling in steam to avoid abnormal deformation.

B. Check the temperature of corrugating roll and pressure roll regularly to avoid temperature decrease caused by accumulation of condensate water.

C. If the temperature is abnormal, please check and keep the correct position of siphon to let condensate water out successfully.

E Flute Steam Heating Chrome Plated Corrugated Roller

About us

Main products:Tungsten Carbide corrugating rolls, hard chrome corrugating rolls, pressure roller, glue roll and doctor rolls. The products are mainly sold in China, India, South Korea, Russia ,Thailand, Myanmar, Iran, Egypt and other countries.Therefore, our products are widely recognized by the global customers, which make us gaining sound reputation all over the world.
