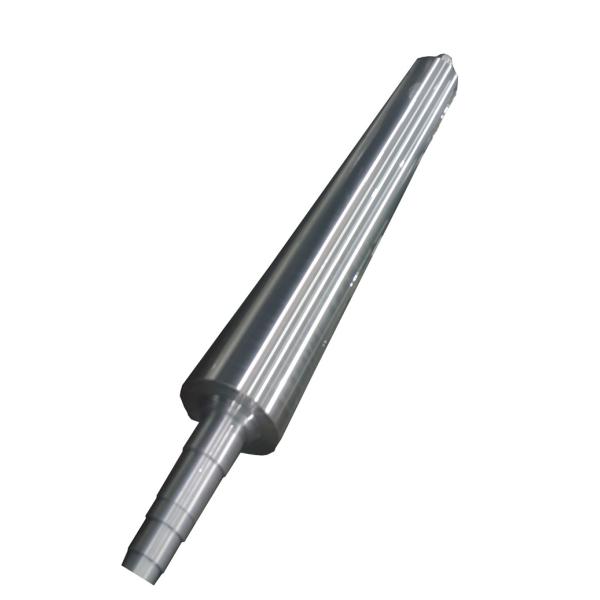

Glue Machine Diameter 150mm Hard Chrome Doctor Roll
Glue Machine Diameter 150mm Hard Chrome Doctor Roll
Specifications
Coating :
Hard Chrome
Refurbish :
2-3 times
Coating thickness :
30-40μm
Material :
45# round steel
Diameter :
150mm
Width :
1900mm
Brand Name :
YH
Model Number :
1900-150
Place of Origin :
Made in China
MOQ :
1 pcs
Price :
500-10000
Payment Terms :
T/T
Supply Ability :
3000 pcs
Delivery Time :
30-45 days
Packaging Details :
Wooden Boxes
Certification :
ISO9001
Description

For Glue Machine Double Facer Hard Chrome Doctor Roll with 150mm Diameter

Features of Doctor Roll

Product name Doctor roll
Application Single facer, glue machine, double facer
Coating Hard chrome 0.03-0.05mm
Diameter 50-500mm
The roller surface length 100-4000mm
Cylinder run-out accuracy ≤0.02mm
Cylindricity accuracy ≤0.015mm
Dynamic balancing accuracy grade G2.5 G2.5

Doctor roll is used to control and adjust the glue volume on the surface of glue roll. Therefore, it is essential to regulate the gap between doctor roll and glue roll. The scrapers on the doctor roll are used to get rid of the glue on the surface of glue roll so that the glue roll can be used for next circulation.

Glue Machine Diameter 150mm Hard Chrome Doctor Roll

Advanced Cylindrical Grinding Machine

Use the cylindrical grinder to perform external grinding.

The last step is to coat hard chrome. Chrome coating thickness is 0.03-0.05mm.
