Steel Coating 0.05mm Dia 160mm Hard Chrome Doctor Roll
Steel Coating 0.05mm Dia 160mm Hard Chrome Doctor Roll
Specifications
Brand Name :
YH
Certification :
ISO9001
Place of Origin :
Made in China
MOQ :
1 pcs
Price :
500-10000
Payment Terms :
T/T
Supply Ability :
3000 pcs
Delivery Time :
30-45 days
Packaging Details :
Wooden Boxes
Material :
45# round steel
Coating :
Hard Chrome
Coating thickness :
30-50μm
Width :
2200mm
Diameter :
160mm
Refurbish :
2-3 times
Description

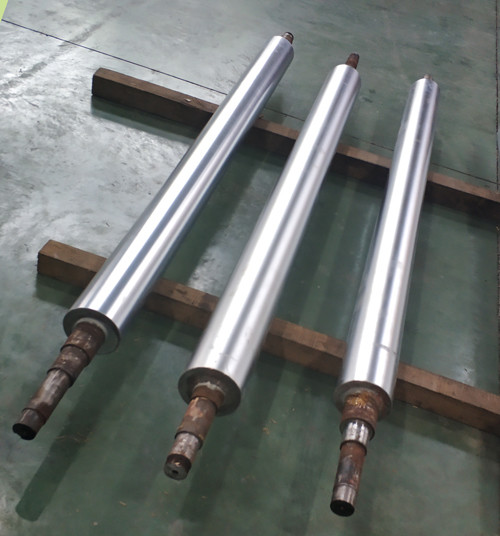

Hard Chrome Doctor Roll Match with Glue Roll for Single Facer

Product name Doctor roll
Application Single facer, glue machine, double facer
Coating Hard chrome 0.03-0.05mm
Diameter 50-500mm
The roller surface length 100-4000mm
Cylinder run-out accuracy ≤0.02mm
Cylindricity accuracy ≤0.015mm
Dynamic balancing accuracy grade G2.5 G2.5

Steel Coating 0.05mm Dia 160mm Hard Chrome Doctor Roll

Their function is to control and fine-tune the adhesive layer working with glue rolls, helping achieve consistent bonding strength and smooth board surfaces, even at high production speeds.

· Roll diameter: 100-300mm

· Roll width: 1000-3600mm

· Coating layer: 0.03-0.05mm (chrome plated)

· Circular runout tolerance: ≤0.02mm

About us

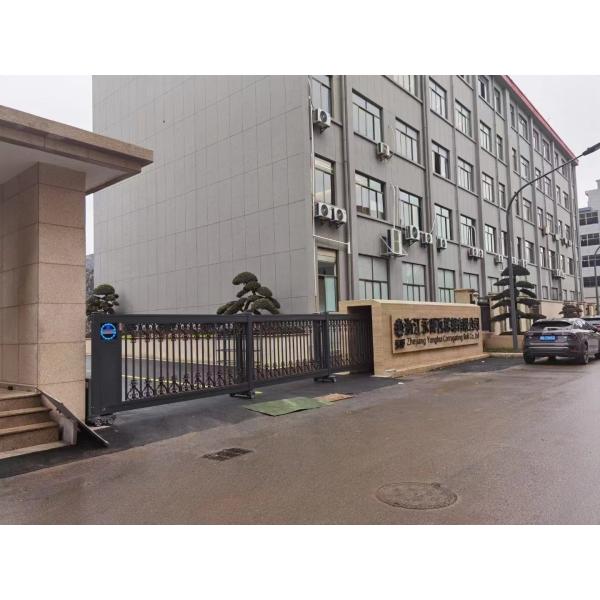

Since its establishment in 2004, Zhejiang Yonghui Corrugated Roller Co., Ltd. has always focused on the R&D and manufacturing of high-quality corrugated rollers, the "heart" component of the corrugated cardboard production line.

Steel Coating 0.05mm Dia 160mm Hard Chrome Doctor Roll
