High Speed Folder Gluer Machine Dimensions 1000×3000×1600mm 150 Pcs/Min With Strapping
High Speed Folder Gluer Machine Dimensions 1000×3000×1600mm 150 Pcs/Min With Strapping
Specifications
Brand Name :
QH
Model Number :
1200
Certification :
CE ISO
Place of Origin :
hebei
MOQ :
1 set
Price :
USD+18000-35000+1 SET
Payment Terms :
L/C, T/T
Supply Ability :
5 sets per month
Delivery Time :
45 days
Packaging Details :
standard
speed :
150 pcs / min
power :
11.5 KW
weight :
5100KG
warranty :
1 year
application :
corrugated cardboard
name :
corrugated cardboard folder gluer machine
Description

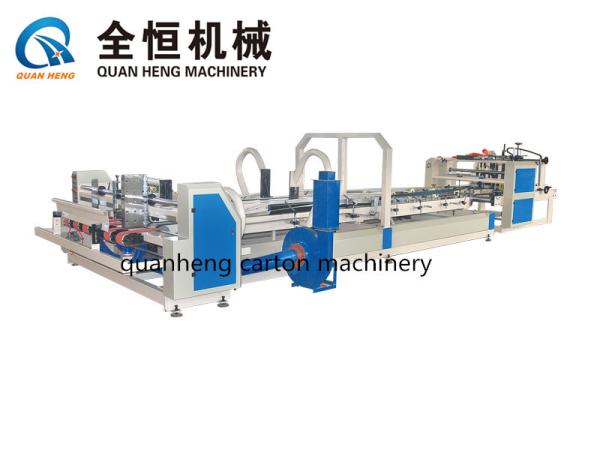

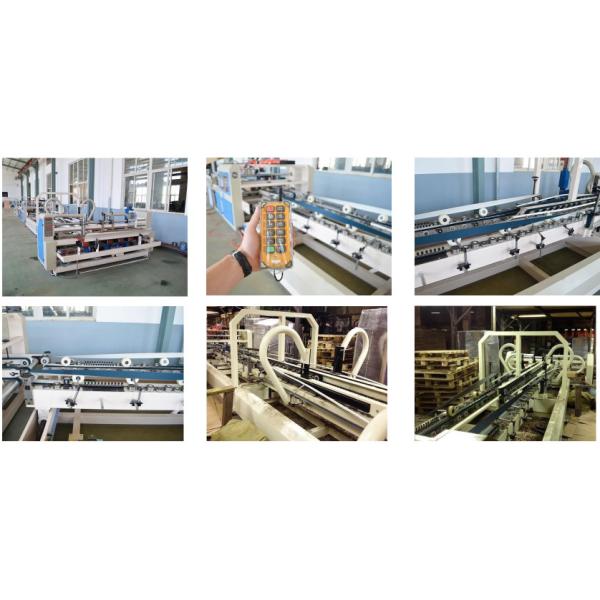

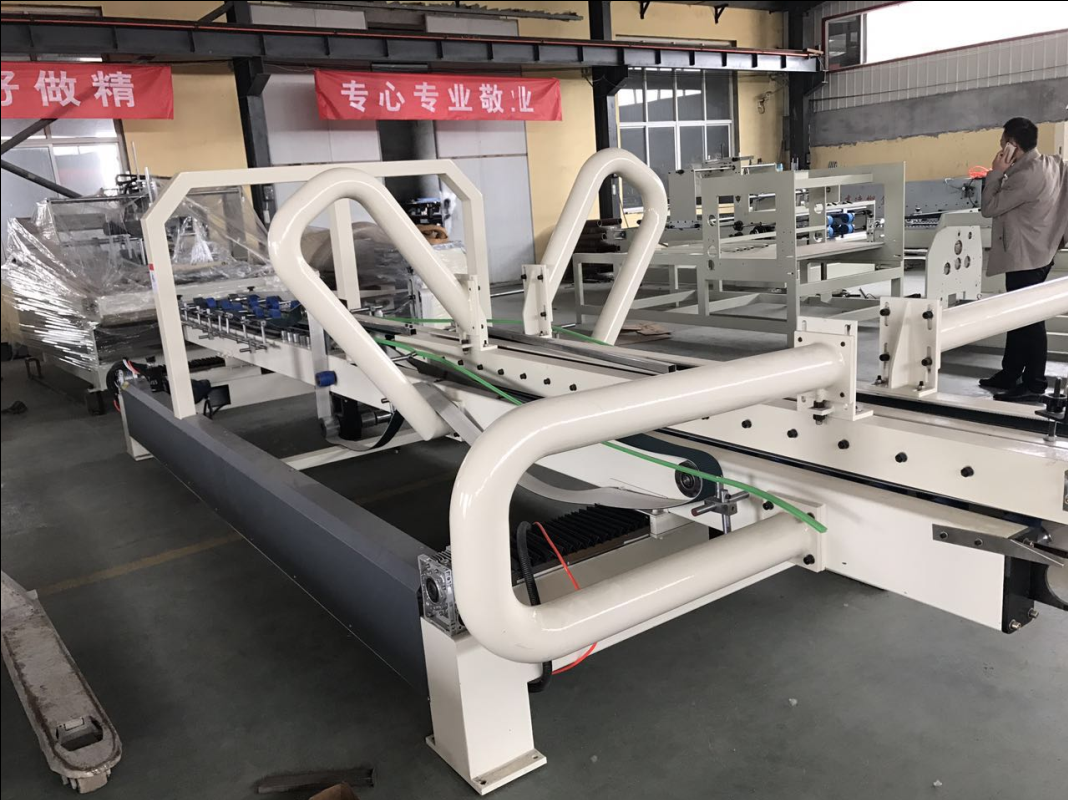

QH - High Speed Automatic Folder Gluer With Strapping Machine

Folder gluer machine introduction:

Full-automatic sticky box washer, by feeding department, gelatinize folding department and count accumulation of three parts, digital display speed, microcomputer attenuation is simple and convenient, quick and reliable precise control mode, automatic feeding, automatic glue fold, automatic counting, automatic Stacker output, average sticky box speed 120 pcs/min, highest speed 150 pcs/min, high efficient energy-saving environmental protection is our supreme pursuit.

Model QHAFG-1200M
Max.Cardboard 1200×2400mm
Min.Cardboard 170×420mm
Dimensions L11000×W3000×H1600mm
Total weight 5100kg
Power Required 11.5Kw, 380V, 3 phase, 50Hz.
Paperboard thickness 3 or 5 layer cardboard
Contol PLC & Touch screen

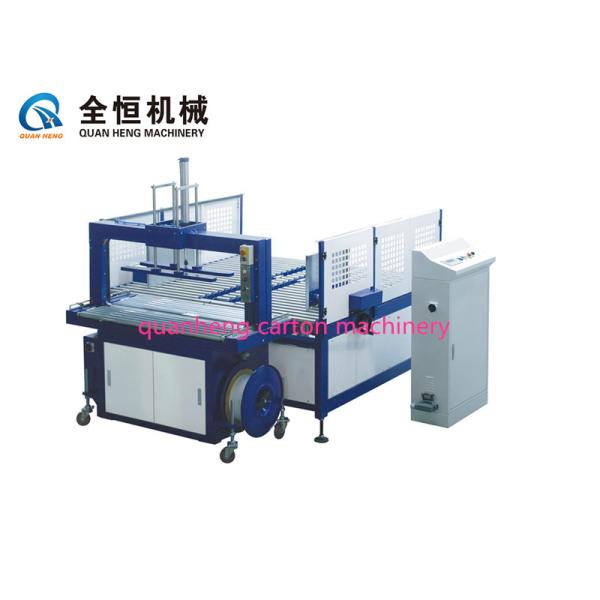

Strapping Machine

Technical parameter:

Model:QHSP-1200S

Total power (including steering machine, box machine, pressurized power packing machine): 3KW;

Power Supply: 380V50Hz;

Max. dimensions of workpieces (mm): 1200 x 1200 x 500;

Min. dimensions of workpieces (mm): 250 x 320 x 0;

Steering machine (L2210 *W2050* H1350);

Close box machine (L1800 *W2050 *H1350);

Packer (L1500 *W665 *H1792)

Working Speed: 8-15 single wire pieces / min;

Strapping wire width 5mm

Bonding method: thermal fusion;

Bonding method: bottom bonding, adhesive surface more than 90%, adhesive position deviation less than equal to 2mm;

Bundle tightness: 0-45Kg;

Pressure: 0.5-0.8MPa;

Roller material: stainless steel;

Cylinder diameter: 50mm, wall thickness: 1.5mm;

Transmission speed: 0-50m/min
