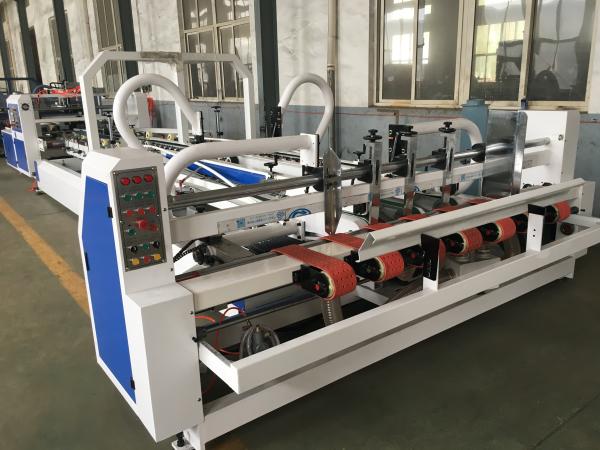

5T Automatic Carton Folder Gluer Machine Touch Screen Control With Vacuum Feeding Section
5T Automatic Carton Folder Gluer Machine Touch Screen Control With Vacuum Feeding Section
5T Automatic Carton Folder Gluer Machine Touch Screen Control With Vacuum Feeding Section
5T Automatic Carton Folder Gluer Machine Touch Screen Control With Vacuum Feeding Section
Specifications
Brand Name :
QH
Model Number :
1600 /2400 /2800
Certification :
CE ISO
Place of Origin :
Hebei
MOQ :
1 sets
Price :
USD+22000-30000+ 1 SET
Payment Terms :
L/C, T/T
Supply Ability :
3 sets per month
Delivery Time :
60 days
Packaging Details :
standard
speed :
220 pcs /min
power :
11.5 KW
weight :
5T
warranty :
1 year
application :
corrugated cardboard
packing :
standard
Description

Corrugated Carton Automatic Folder Gluing Machine High Speed

Description & Feature:

Automatic folder gluer machine consiste of three sections: vacuum feeding section, glue & floding section, counter & stacker section. Frequency conversion motor with quality inverter adjust speed. PLC & Touch Screen control system for easy operation and running stable. Average speed 150sheets/min. Max speed is 220pcs/min. Energy Conservation and High Speed, Saving Labor Cost.

Model HX-1600 HX-2400 HX-2800
Max. Cardboard 900X1500mm 900*2200mm 1450*2600mm
Mini. Cardboard 170x420mm 170*420mm 400*900mm
Dimensions 10000*2200*1600mm 14000*3000*1600mm 16500*3400*1600
Total weight 5000kg 5500KG 6500KG
Power Required 11.5kw 11.5KW 14.5KW
Paperboard thickness 3 or 5 layer paperboard 3 or 5 layer paperboard 3 or 5 layer paperboard
Control PLC &TOUCH SSCREEN

PLC&TOUCH

SCREEN

PLC&TOUCH

SCREEN

5T Automatic Carton Folder Gluer Machine Touch Screen Control With Vacuum Feeding Section5T Automatic Carton Folder Gluer Machine Touch Screen Control With Vacuum Feeding Section
