High Quality PE PVC POM PP Wood Plastic Composite Twin Screw Extruder Plastic Pellet Machine Wpc Extruder Machine
High Quality PE PVC POM PP Wood Plastic Composite Twin Screw Extruder Plastic Pellet Machine Wpc Extruder Machine
High Quality PE PVC POM PP Wood Plastic Composite Twin Screw Extruder Plastic Pellet Machine Wpc Extruder Machine
High Quality PE PVC POM PP Wood Plastic Composite Twin Screw Extruder Plastic Pellet Machine Wpc Extruder Machine
High Quality PE PVC POM PP Wood Plastic Composite Twin Screw Extruder Plastic Pellet Machine Wpc Extruder Machine
High Quality PE PVC POM PP Wood Plastic Composite Twin Screw Extruder Plastic Pellet Machine Wpc Extruder Machine
High Quality PE PVC POM PP Wood Plastic Composite Twin Screw Extruder Plastic Pellet Machine Wpc Extruder Machine
High Quality PE PVC POM PP Wood Plastic Composite Twin Screw Extruder Plastic Pellet Machine Wpc Extruder Machine
High Quality PE PVC POM PP Wood Plastic Composite Twin Screw Extruder Plastic Pellet Machine Wpc Extruder Machine
High Quality PE PVC POM PP Wood Plastic Composite Twin Screw Extruder Plastic Pellet Machine Wpc Extruder Machine
High Quality PE PVC POM PP Wood Plastic Composite Twin Screw Extruder Plastic Pellet Machine Wpc Extruder Machine
High Quality PE PVC POM PP Wood Plastic Composite Twin Screw Extruder Plastic Pellet Machine Wpc Extruder Machine
High Quality PE PVC POM PP Wood Plastic Composite Twin Screw Extruder Plastic Pellet Machine Wpc Extruder Machine
High Quality PE PVC POM PP Wood Plastic Composite Twin Screw Extruder Plastic Pellet Machine Wpc Extruder Machine
Specifications
plastic processed :
PP/PVC/WPC/PE/ABS/XPS/Polystyrene
application :
Granules
Screw Design :
Double-screw
twin screw type :
Co-rotating Parallel Twin-screw
Screw Material :
38CrMoALA
screw diameter (mm) :
71
Screw L/D Ratio :
40:1
Screw Speed (rpm) :
500 rpm
Place of Origin :
Jiangsu, China
Brand Name :
YongJie
voltage :
380V 50HZ
dimension(l*w*h) :
Model
power (kw) :
132
warranty :
1 Year
key selling points :
Automatic
video outgoing-inspection :
Provided
core components :
motor, Gearbox
machinery test report :
Provided
After-sales Service Provided :
Engineers available to service machinery overseas
Name :
YongJie
wood plastic composite machine Color :
any color as your require
RPM ( r/min) :
500/600
Torque(N.m) :
405/415
T/N :
5.1/5.2
Capacity (Kg/h) :
100-250
Certification :
CE ISO9001
Automatic Grade :
High Automation
Condition :
New
Showroom Location :
None
Applicable Industries :
Manufacturing Plant
Warranty of core components :
1 Year
Weight :
1 KG
Description

High quality PE PVC POM PP wood plastic composite twin screw extruder plastic pellet machine wpc extruder machine

The company concentrated on research development and manufacturing “high level, accurate, highly sophisticated series product —Co-rotating parallel “cordwood” twin screw extruder. We have provided customer first-class products with strong torque, high production, energy conservation and environmental protection products.

Model Diameter(mm) L/D RPM ( r/min) Power (Kw) Torque(N.m) T/N Capacity (Kg/h)
SJSL-20 20 32-44 600 5.5 30 4.8 6.5-15
SJSL-36 36 32-48 600 15 115 4.2 30-75
SJSL-51A 51 32-52 500 45 405 5.1 100-200
SJSL-51B 51 32-52 600 55 415 5.2 150-25
SJSL-63A 63 32-62 400 55 620 4.4 160-250
500 75 675 4.8 200-300

SJSL-63B

 63 32-64 600 90 675 4.8 225-375
800 110 620 4.4 300-500
SJSL-75A 72 32-64 400 90 1015 4.7 225-350
500 110 1005 4.6 300-550
SJSL-75B 72 32-64 600 132 990 4.6 400-650
800 160 900 4.2 480-800
SJSL-92A 92 32-64 400 250 2815 5.9 650-1050
500 2250 4.7 750-1250
SJSL-92B 92 32-64 600 280 2365 5.0 900-1500
800 2250 4.7 1200-2000
SJSL-135A 135 32-48 400 315 6190 4.6 1500-2500
SJSL-135B 135 32-48 500 400 6750 5.1 200-3500
High Quality PE PVC POM PP Wood Plastic Composite Twin Screw Extruder Plastic Pellet Machine Wpc Extruder Machine

High Quality PE PVC POM PP Wood Plastic Composite Twin Screw Extruder Plastic Pellet Machine Wpc Extruder MachineHigh Quality PE PVC POM PP Wood Plastic Composite Twin Screw Extruder Plastic Pellet Machine Wpc Extruder Machine

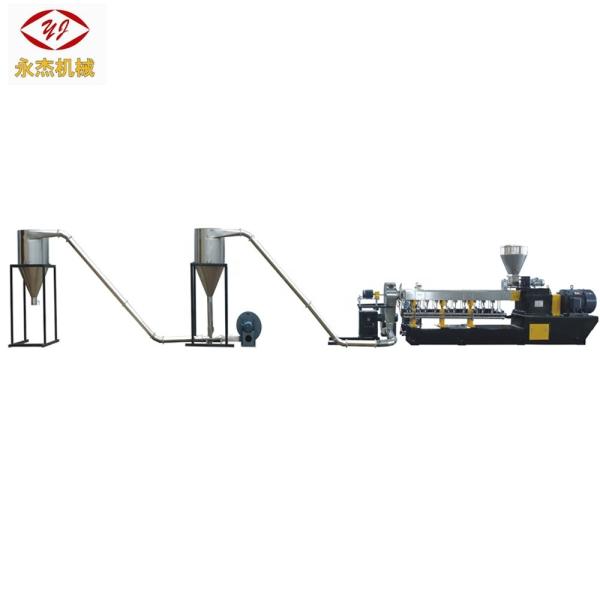

Application for air-cooling hot face production line

1. Masterbatch enforcing modification: PE, EVA + calcium carbonate, talc, titanium

dioxide, PVC, PP, carbon black.

2. Degradable master batch: PE, PS, etc. + starch, additives etc.

3. Anti-flame master batch: PE, EVA, etc. + Mg(OH)2, Al2(OH)3, etc.

Auxiliary

Air-cooling pelletizer cover

High Quality PE PVC POM PP Wood Plastic Composite Twin Screw Extruder Plastic Pellet Machine Wpc Extruder Machine

cyclone

High Quality PE PVC POM PP Wood Plastic Composite Twin Screw Extruder Plastic Pellet Machine Wpc Extruder Machine

Blower

High Quality PE PVC POM PP Wood Plastic Composite Twin Screw Extruder Plastic Pellet Machine Wpc Extruder Machine

Vibrating sieve

High Quality PE PVC POM PP Wood Plastic Composite Twin Screw Extruder Plastic Pellet Machine Wpc Extruder Machine

Product bin

High Quality PE PVC POM PP Wood Plastic Composite Twin Screw Extruder Plastic Pellet Machine Wpc Extruder Machine

Other product

Pelletizing in the water line

High Quality PE PVC POM PP Wood Plastic Composite Twin Screw Extruder Plastic Pellet Machine Wpc Extruder Machine

Air-cooling strand pelletizing line

High Quality PE PVC POM PP Wood Plastic Composite Twin Screw Extruder Plastic Pellet Machine Wpc Extruder Machine

Water-ring Hot-face pelletizing line

High Quality PE PVC POM PP Wood Plastic Composite Twin Screw Extruder Plastic Pellet Machine Wpc Extruder Machine

Water-cooling stand pelletizing line

High Quality PE PVC POM PP Wood Plastic Composite Twin Screw Extruder Plastic Pellet Machine Wpc Extruder Machine

High Quality PE PVC POM PP Wood Plastic Composite Twin Screw Extruder Plastic Pellet Machine Wpc Extruder Machine

High Quality PE PVC POM PP Wood Plastic Composite Twin Screw Extruder Plastic Pellet Machine Wpc Extruder Machine

FAQ

1. Are you a factory or trading company?

Both.

2. Where is your factory located? How can I visit there?

Our factory is located in industrial centralized area of Moling town, Jiangning, Nanjing, China.

(1) You can fly to Nanjing Airport directly. We will pick you up on Nanjing Lukou International airport;

(2) You can fly to Shanghai Pudong International Airport then come to Nanjing by High-speed railway, then we will pick you up in the railway station.

3. What's your advantages?

(1) Excellent quality control

(2) First-class service

(3) Professional Tech. and R&D team

(4) Quick manufacturing time

(5) Quite competitive price

4. How long is the delivery time?

Under normal conditions, products are delivered within 35 days.

5. How can I know the stauts of my order?

We will send you photos and videos of your order at different satge in time and keep you informed of the latest information.

6. How long is the warranty?

We can offer one-year warranty for the whole machine.
