PE Dessicant Caco3 Filler Masterbatch Machine

Specifications

plastic processed :

PE, PP, PVC, wood-plastic, PE/PP

application :

Granules

Screw Design :

Double-screw

twin screw type :

Co-rotating Parallel Twin-screw

Screw Material :

38CrMoALA

screw diameter (mm) :

Screw L/D Ratio :

40:1

Screw Speed (rpm) :

500 rpm

Place of Origin :

Jiangsu, China

Brand Name :

YongJie

voltage :

380V 50HZ

dimension(l*w*h) :

Model

power (kw) :

132

warranty :

1 Year

key selling points :

Automatic

video outgoing-inspection :

Provided

core components :

motor, PLC, Gearbox

machinery test report :

Provided

After-sales Service Provided :

Engineers available to service machinery overseas

Application Field :

Wood plastic pelletizing machine

Name :

YongJie

Barrel material :

38CrMoALA

Color :

any color as your require

Inverter :

ABB Brand

Motor brand :

WN/Siemens Beide

RPM ( r/min) :

400/500/600/800

Torque(N.m) :

1015/1005/990/900

T/N :

4.7/4.6/4.2

Marketing Type :

Hot Product 2019

Condition :

New

Showroom Location :

None

Applicable Industries :

Manufacturing Plant

Warranty of core components :

1 Year

Weight :

1 KG

Description

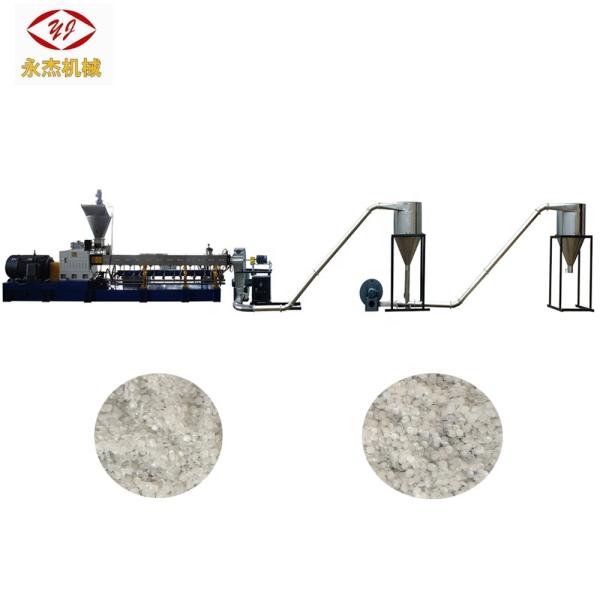

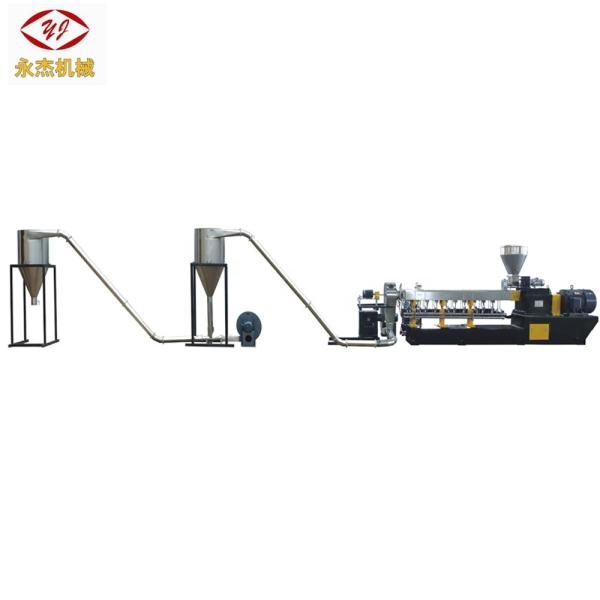

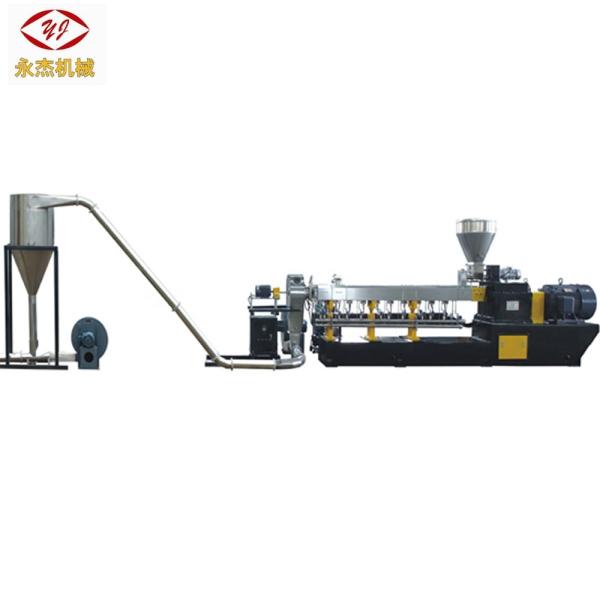

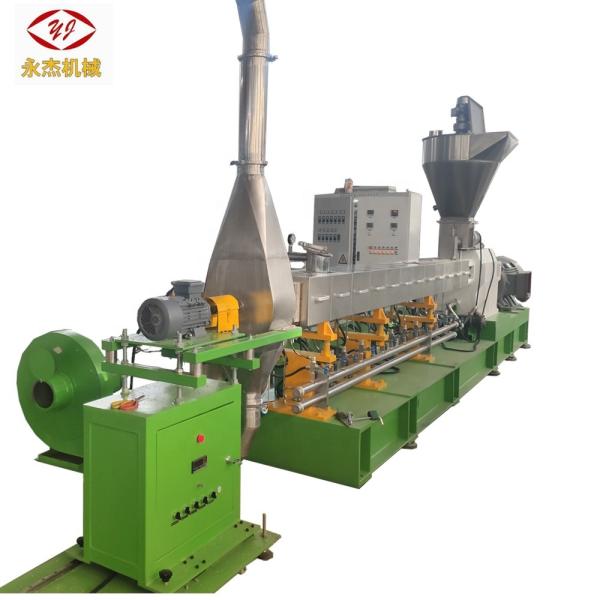

PE dessicant caco3 filler masterbatch machine

The company concentrated on research development and manufacturing “high level, accurate, highly sophisticated series product —Co-rotating parallel “cordwood” twin screw extruder caco3 filler masterbatch and dessicant master batch machine. We have provided customer first-class products with strong torque, high production, energy conservation and environmental protection products.

Model	Diameter(mm)	L/D	RPM ( r/min)	Power (Kw)	Torque(N.m)	T/N	Capacity (Kg/h)
SJSL-20	20	32-44	600	5.5	30	4.8	6.5-15
SJSL-36	36	32-48	600	15	115	4.2	30-75
SJSL-51A	51	32-52	500	45	405	5.1	100-200
SJSL-51B	51	32-52	600	55	415	5.2	150-25
SJSL-63A	63	32-62	400	55	620	4.4	160-250
SJSL-63A	63	32-62	500	75	675	4.8	200-300
SJSL-63B	63	32-64	600	90	675	4.8	225-375
SJSL-63B	63	32-64	800	110	620	4.4	300-500
SJSL-75A	72	32-64	400	90	1015	4.7	225-350
SJSL-75A	72	32-64	500	110	1005	4.6	300-550
SJSL-75B	72	32-64	600	132	990	4.6	400-650
SJSL-75B	72	32-64	800	160	900	4.2	480-800
SJSL-92A	92	32-64	400	250	2815	5.9	650-1050
SJSL-92A	92	32-64	500	250	2250	4.7	750-1250
SJSL-92B	92	32-64	600	280	2365	5.0	900-1500
SJSL-92B	92	32-64	800	280	2250	4.7	1200-2000
SJSL-135A	135	32-48	400	315	6190	4.6	1500-2500
SJSL-135B	135	32-48	500	400	6750	5.1	200-3500

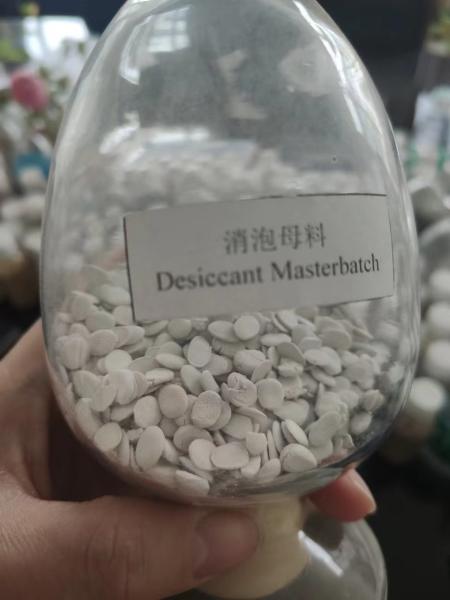

Application caco3 filler masterbatch and dessicant master batch machine

1. Masterbatch enforcing modification: PE, EVA + calcium carbonate, talc, titanium

dioxide, PVC, PP, carbon black.

2. Degradable master batch: PE, PS, etc. + starch, additives etc.

3. Anti-flame master batch: PE, EVA, etc. + Mg(OH)2, Al2(OH)3, etc.

Auxiliary

Air-cooling pelletizer cover
cyclone
Blower
Vibrating sieve
Product bin

Other product

Pelletizing in the water line

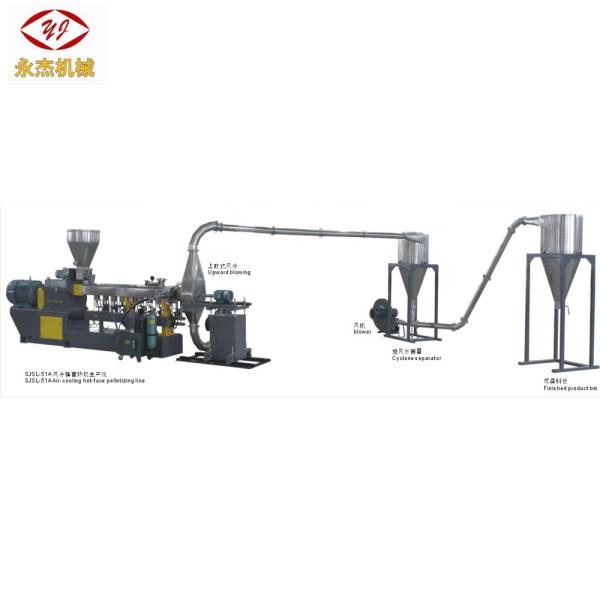

Air-cooling strand pelletizing line

Water-ring Hot-face pelletizing line

Water-cooling stand pelletizing line

FAQ

1. Are you a factory or trading company?

Both.

2. Where is your factory located? How can I visit there?

Our factory is located in industrial centralized area of Moling town, Jiangning, Nanjing, China.

(1) You can fly to Nanjing Airport directly. We will pick you up on Nanjing Lukou International airport;

(2) You can fly to Shanghai Pudong International Airport then come to Nanjing by High-speed railway, then we will pick you up in the railway station.

3. What's your advantages?

(1) Excellent quality control

(2) First-class service

(3) Professional Tech. and R&D team

(4) Quick manufacturing time

(5) Quite competitive price

4. How long is the delivery time?

Under normal conditions, products are delivered within 35 days.

5. How can I know the stauts of my order?

We will send you photos and videos of your order at different satge in time and keep you informed of the latest information.

6. How long is the warranty?

We can offer one-year warranty for the whole machine.
