PE, ABS, EVA Plastic Masterbatch Granules Making Machine
PE, ABS, EVA Plastic Masterbatch Granules Making Machine
PE, ABS, EVA Plastic Masterbatch Granules Making Machine
PE, ABS, EVA Plastic Masterbatch Granules Making Machine
PE, ABS, EVA Plastic Masterbatch Granules Making Machine
PE, ABS, EVA Plastic Masterbatch Granules Making Machine
PE, ABS, EVA Plastic Masterbatch Granules Making Machine
PE, ABS, EVA Plastic Masterbatch Granules Making Machine
PE, ABS, EVA Plastic Masterbatch Granules Making Machine
PE, ABS, EVA Plastic Masterbatch Granules Making Machine
PE, ABS, EVA Plastic Masterbatch Granules Making Machine
PE, ABS, EVA Plastic Masterbatch Granules Making Machine
PE, ABS, EVA Plastic Masterbatch Granules Making Machine
PE, ABS, EVA Plastic Masterbatch Granules Making Machine
Specifications
plastic processed :
PP/PVC/WPC/PE/ABS/XPS/Polystyrene
application :
Granules
Model Number :
SJSL-92A/B
Screw Design :
Double-screw
Place of Origin :
Jiangsu, China
Brand Name :
YongJie
voltage :
380V 50HZ
dimension(l*w*h) :
Model
After-sales Service Provided :
Engineers available to service machinery overseas
Keyword :
plastic masterbatch making machine
Name :
YongJie
Warranty :
1 year
Color :
any color as your require
Diameter(mm) :
92
L/D :
32-64
RPM ( r/min) :
400/500/600/800
T/N :
5.9/4.7/5.0
Capacity (Kg/h) :
650-2000
Torque(N.m) :
2815/2250/2365/2250
Certification :
CE ISO9001
Automatic Grade :
High Automation
Power :
250/280kw
Condition :
New
Weight :
1t-10t
Description

PE, ABS, EVA plastic masterbatch granules making machine

The company concentrated on research development and manufacturing “high level, accurate, highly sophisticated series product —Co-rotating parallel “cordwood” twin screw extruder. We have provided customer first-class products with strong torque, high production, energy conservation and environmental protection products.

Model Diameter(mm) L/D RPM ( r/min) Power (Kw) Torque(N.m) T/N Capacity (Kg/h)
SJSL-202032-446005.5304.86.5-15
SJSL-363632-48600151154.230-75
SJSL-51A5132-52500454055.1100-200
SJSL-51B5132-52600554155.2150-25
SJSL-63A6332-62400 55 620 4.4 160-250
500756754.8200-300

SJSL-63B

6332-64600 90 675 4.8 225-375
8001106204.4300-500
SJSL-75A7232-64400 90 1015 4.7 225-350
50011010054.6300-550
SJSL-75B7232-64600 132 990 4.6 400-650
8001609004.2480-800
SJSL-92A9232-64400 2502815 5.9 650-1050
50022504.7750-1250
SJSL-92B9232-64600 2802365 5.0 900-1500
80022504.71200-2000
SJSL-135A13532-4840031561904.61500-2500
SJSL-135B13532-4850040067505.1200-3500
PE, ABS, EVA Plastic Masterbatch Granules Making Machine

PE, ABS, EVA Plastic Masterbatch Granules Making MachinePE, ABS, EVA Plastic Masterbatch Granules Making Machine

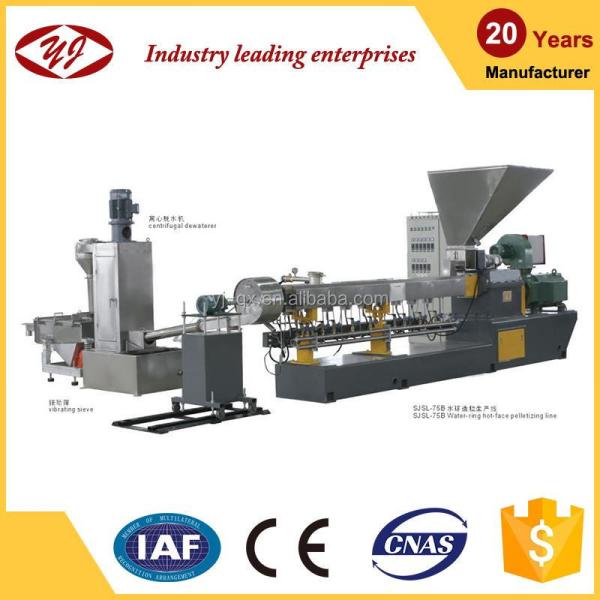

Application for water-ring hot face production line

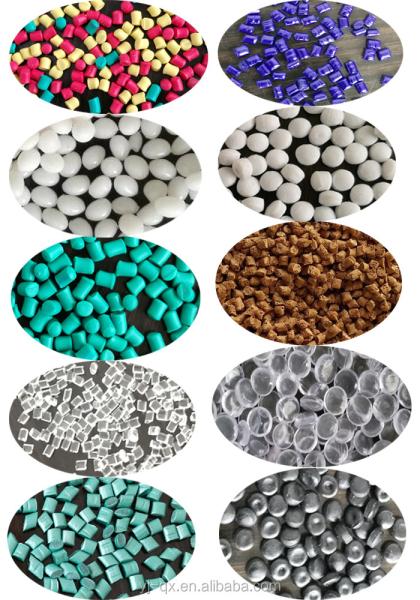

1. Filling master batch: PE, EVA, etc. + caco3, talc, filling modified and carbon black etc.

2. LDPE, HDPE, LLDPE, MDPE, drivepipe, insulation material, crosslinking material,

cable coating material , thermal contraction pipe material.

3. PPR pipe compounds, PE crosslinking tube material, TPR, TPU thermoplastic

elastomer, EVA and hot melt additives.

4. Color mater batch: PE, ABS, PS, EVA master batch, etc.

5. ABS, EVA flaming retarding master batch, etc.

6. PE, PP, PS filling and biodegradable masterbatch, etc.

Auxiliary

Water-ring cover

pelletizer

PE, ABS, EVA Plastic Masterbatch Granules Making Machine

Centrifugal dehydrator

PE, ABS, EVA Plastic Masterbatch Granules Making Machine

Vibrating sieve

PE, ABS, EVA Plastic Masterbatch Granules Making Machine

Bin

PE, ABS, EVA Plastic Masterbatch Granules Making Machine

Other product

Pelletizing in the water line

PE, ABS, EVA Plastic Masterbatch Granules Making Machine

Air-cooling strand pelletizing line

PE, ABS, EVA Plastic Masterbatch Granules Making Machine

Air-cooling hot-face pelletizing line

PE, ABS, EVA Plastic Masterbatch Granules Making Machine

Water-cooling stand pelletizing line

PE, ABS, EVA Plastic Masterbatch Granules Making Machine

PE, ABS, EVA Plastic Masterbatch Granules Making Machine

PE, ABS, EVA Plastic Masterbatch Granules Making Machine

PE, ABS, EVA Plastic Masterbatch Granules Making Machine

PE, ABS, EVA Plastic Masterbatch Granules Making Machine

FAQ

1. Are you a factory or trading company?

Both.

2. Where is your factory located? How can I visit there?

Our factory is located in industrial centralized area of Moling town, Jiangning, Nanjing, China.

(1) You can fly to Nanjing Airport directly. We will pick you up on Nanjing Lukou International airport;

(2) You can fly to Shanghai Pudong International Airport then come to Nanjing by High-speed railway, then we will pick you up in the railway station.

3. What's your advantages?

(1) Excellent quality control

(2) First-class service

(3) Professional Tech. and R&D team

(4) Quick manufacturing time

(5) Quite competitive price

4. How long is the delivery time?

Under normal conditions, products are delivered within 35 days.

5. How can I know the stauts of my order?

We will send you photos and videos of your order at different satge in time and keep you informed of the latest information.

6. How long is the warranty?

We can offer one-year warranty for the whole machine.
