Specifications
Price :
USD 6.8-15.5 / Kilogram
Outer Diameter :
19mm - 89mm
Payment Terms :
T/T
Standard :
ASTM A213 TP310S, EN 10216-5
Application :
Furnace Components, Heat Exchangers, Thermal Processing, Power Plants
Brand Name :
SYLAITH
Place of Origin :
Jiangsu, China
Wall Thickness :
1.5mm - 5mm
Supply Ability :
200 Metric Tons per Month
Model Number :
SS310S-HT-EXCH
Surface Finish :
Pickled, Annealed
Tensile Strength :
≥ 520 MPa at RT
Length :
6m standard, custom available
Nickel Content :
19% - 22%
Certification :
ISO 9001:2015, ASTM A213
Max Service Temperature :
1150°C (intermittent), 1050°C (continuous)
Chromium Content :
24% - 26%
Material Grade :
310S (UNS S31008, 1.4845)
Yield Strength :
≥ 205 MPa at RT
MOQ :
100 Kilograms
Delivery Time :
10-18 working days for stock, 20-35 days for production
Packaging Details :
Anti-rust oil coating, wrapped in VCI paper and PVC, packed in fumigated wooden cases
Manufacturing Process :
Seamless, Cold Drawn
Description
310S Stainless Steel Heat Exchanger Tube OD 19mm-89mm WT 1.5mm-5mm High Temperature 1150°C Resistant
310S Stainless Steel Heat Exchanger Tube - High Temperature Grade
310S Stainless Steel Heat Exchanger Tube with 1150°C High Temperature Resistance and Seamless Cold Drawn Construction 310S Stainless Steel Heat Exchanger Tube with 1150°C High Temperature Resistance and Seamless Cold Drawn Construction

SSM 310S stainless steel heat exchanger tubes are engineered for extreme temperature applications up to 1150°C. The high chromium (24-26%) and nickel (19-22%) content provides outstanding oxidation resistance and creep strength at elevated temperatures.

Key Features
  • 1150°C Capability: Superior high-temperature strength and oxidation resistance far exceeding 304/316 grades, rated for 1050°C continuous and 1150°C intermittent service
  • Seamless Construction: Cold-drawn seamless process ensures uniform microstructure and consistent thermal performance
  • Low Carbon Variant: 310S (max 0.08% C) minimizes carbide precipitation, maintaining ductility after prolonged high-temperature exposure
  • Anti-Scaling Surface: Dense chromium oxide layer forms at high temperatures, protecting against further oxidation
Applications
  • Industrial furnaces
  • Radiant tubes
  • Heat treatment baskets
  • Thermal oxidizers
  • Waste heat recovery boilers
  • Petrochemical cracking furnaces
Quality Assurance

PMI verified chemical composition, hydrostatic testing per ASTM A213, 100% eddy current testing, and elevated temperature tensile test reports available upon request.

310S Stainless Steel Heat Exchanger Tube with 1150°C High Temperature Resistance and Seamless Cold Drawn Construction 310S Stainless Steel Heat Exchanger Tube with 1150°C High Temperature Resistance and Seamless Cold Drawn Construction
Product Specifications
Product Name Stainless Steel Heat Exchange Pipe/Tube

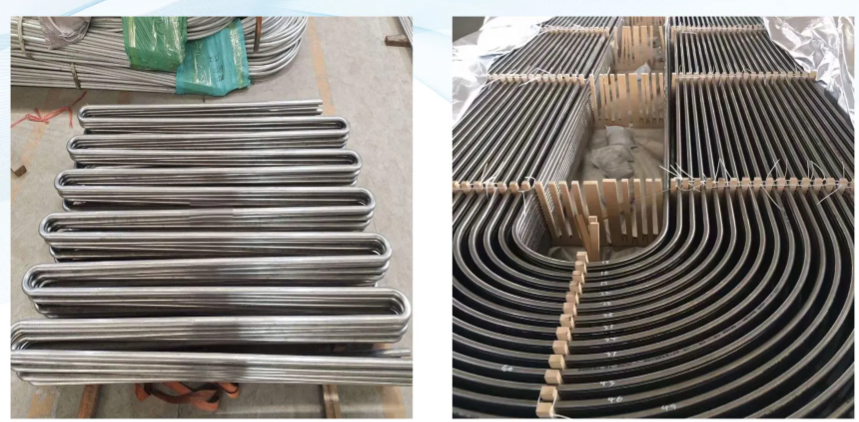

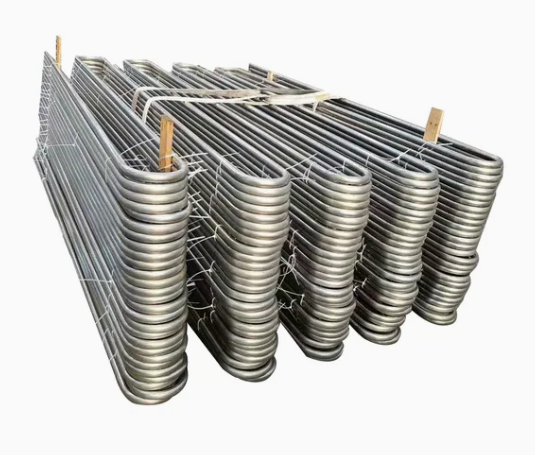

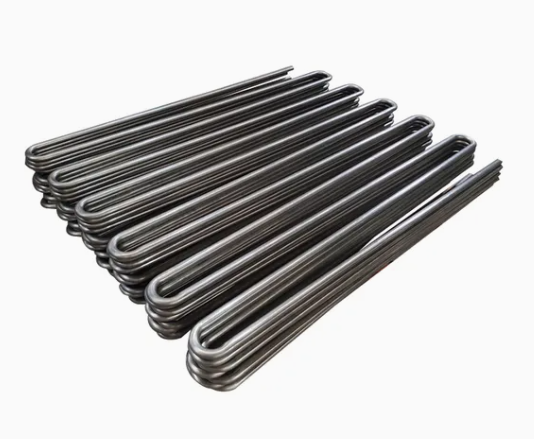

Shape U Shape
Standard AISI, ASTM, DIN, JIS, GB, JIS, SUS, EN, etc
Steel Grade 200 Series: 201, 202
300 Series: 301, 304, 304L, 316, 316L, 316Ti, 317L, 321, 309s, 310s
400 Series: 409L, 410, 410s, 420j1, 420j2, 430, 444, 441, 436
Duplex Steel: 904L, 2205, 2507, 2101, 2520, 2304
Technique Hot rolled / Cold rolled
Length 1000mm-12000mm or according to customer requirement
Size According to customer requirement
Surface Treatment BA/2B/NO.1/NO.3/NO.4/8K/HL/2D/1D
Thickness Tolerance ±0.01mm
Material 201, 202, 301, 302, 303, 304, 304L, 304H, 310S, 316, 316L, 317L, 321, 310S, 309S, 410, 410S, 420, 430, 431, 440A, 904L
Payment L/C, T/T
Processing Service Bending, Welding, Decoiling, Punching, Cutting
Application Widely used in various saltpeter tank, water tank, oil tank, acid and alkali tank, fusible metal melting furnace, air heating furnace, drying furnace, drying oven, hot pressing die and other devices.
