Specifications
Supply Ability :
50000 Kilograms per Month
Length :
Custom up to 6000mm
Tensile Strength :
220-250 MPa
Width Range :
10mm - 200mm
Price :
USD 8.5-12.5 / Kilogram
Surface Treatment :
Tin Plated / Electroplated
Model Number :
CB-TP-2000A
Standard :
ASTM B187, IEC 61439, GB/T 5585
Shape :
Flat / Custom Bent Available
Delivery Time :
5 working days for stock, 15-20 days for production
Material :
T2 Copper (C11000 ETP)
Conductivity :
98% IACS Minimum
Operating Temperature :
-30°C to +105°C
Current Rating :
630A / 1000A / 2000A
Place of Origin :
Jiangsu, China
Certification :
ISO 9001:2015, IEC 61439, RoHS
Brand Name :
SYLAITH
Thickness Range :
2mm - 20mm
MOQ :
100 Kilograms
Payment Terms :
T/T,L/C,PayPal,Western Union
Elongation :
15-25%
Packaging Details :
Export-grade wooden case with moisture-proof VCI paper wrapping, palletized for sea freight
Description
T2 Copper Busbar Tin Plated Surface 630A 1000A 2000A High Current Rating for Switchgear Panel Board Distribution

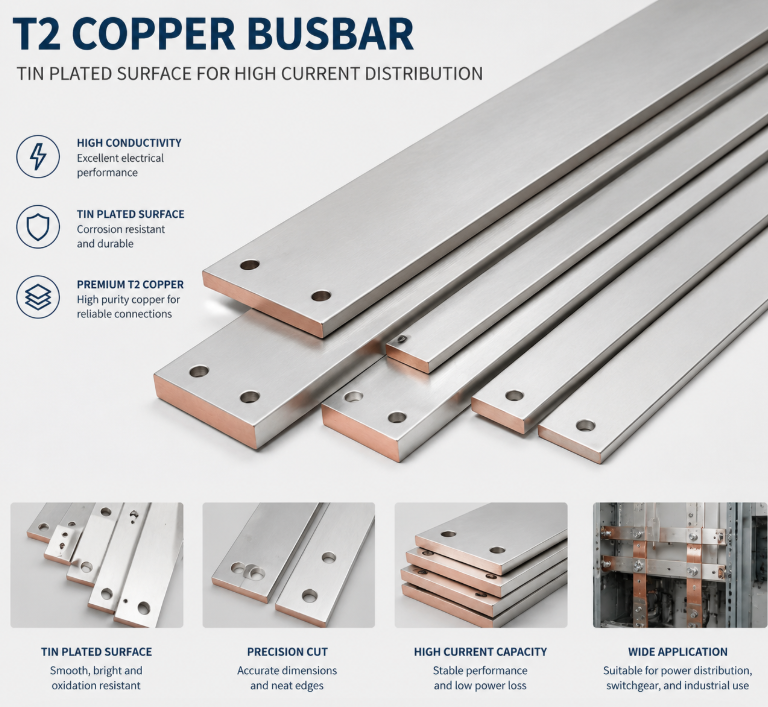

T2 Copper Busbar - Tin Plated Surface for High Current Distribution
T2 Copper Busbar with Tin Plated Surface for High Current Rating 630A 1000A 2000A and 98% IACS Conductivity

The WNRLN T2 Copper Busbar is engineered for high-current power distribution applications, featuring an electroplated tin surface for superior oxidation and corrosion resistance. Manufactured from C11000 ETP (Electrolytic Tough Pitch) copper with 98% IACS minimum conductivity, this busbar ensures minimal power loss and reliable performance in switchgear, panel boards, and industrial distribution systems.

Technical Specifications
Material Grade
T2 Copper (C11000 ETP)
Surface Treatment
Tin Plated (Electroplated)
Current Rating
630A / 1000A / 2000A
Conductivity
98% IACS Minimum
Width Range
10mm to 200mm
Thickness Range
2mm to 20mm
Length Options
Standard 1m/2m/3m/4m/5m/6m, Custom Available
Standards
ASTM B187, IEC 61439, GB/T 5585
Advantages of Tin Plating

Tin plating provides an effective barrier against oxidation and environmental corrosion, maintaining low contact resistance at connection points. Compared to bare copper, tin-plated busbars offer extended service life in humid or industrial environments, reducing maintenance frequency and improving long-term system reliability.

Applications
  • Low Voltage Switchgear and Switchboards
  • Power Distribution Panels and MCC
  • Substation Busbar Systems
  • Industrial Control Cabinets
  • Data Center Power Distribution
  • Solar Inverter DC Busbars
  • UPS System Busbars
Customization Options

We provide bespoke dimensions, bending, punching, drilling, and insulation sleeving. Send your drawings for a custom quotation. Standard lengths from 1m to 6m; special lengths up to 8m available on request. All products undergo 100% dimensional inspection and conductivity testing before shipment.

Packaging & Shipping

Products are wrapped in VCI anti-rust paper, packed in fumigation-free export-grade wooden cases, and secured on pallets for container shipping. Custom labeling and branding available for OEM orders.
