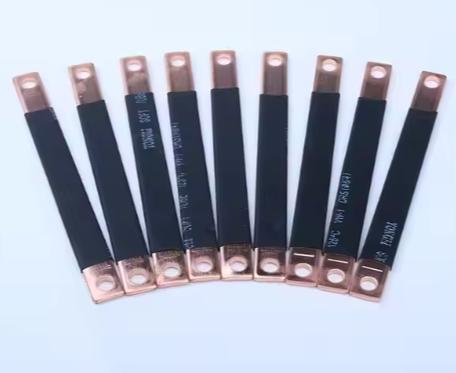

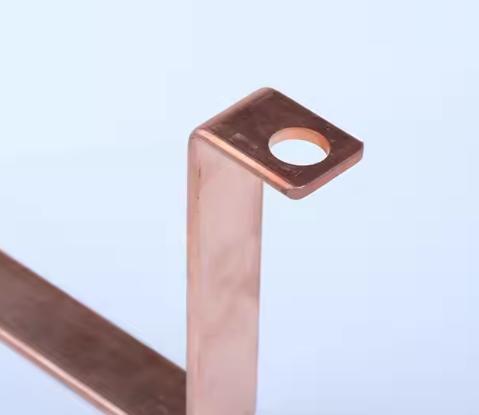

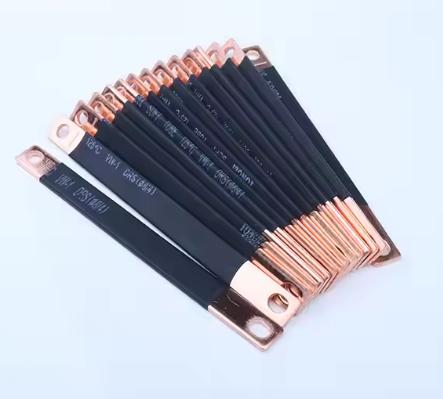

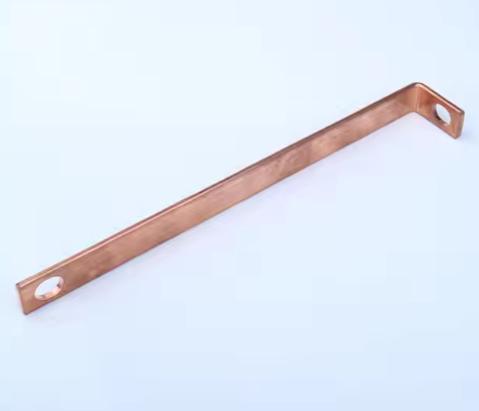

Insulated Custom Flat Battery Flexible Copper Bus Bar 380V
Insulated Custom Flat Battery Flexible Copper Bus Bar 380V
Insulated Custom Flat Battery Flexible Copper Bus Bar 380V
Insulated Custom Flat Battery Flexible Copper Bus Bar 380V
Insulated Custom Flat Battery Flexible Copper Bus Bar 380V
Insulated Custom Flat Battery Flexible Copper Bus Bar 380V
Insulated Custom Flat Battery Flexible Copper Bus Bar 380V
Insulated Custom Flat Battery Flexible Copper Bus Bar 380V
Specifications
Brand Name :
SYLAITH
Model Number :
T2
Certification :
MTC
Place of Origin :
JIANGSU,CHINA
MOQ :
100KG
Payment Terms :
30% TT DEPOSIT IN ADVANCE 70% BALANCE OF TT BEFORE LOADING
Supply Ability :
1000+ton/tons+month
Delivery Time :
7-15 days or as requirements
Packaging Details :
Standard Export Seaworthy Package. Suit for all kinds of transport, or as required
Material :
Brass ;Red Copper
Rated Voltage :
380V
Rated Current :
100-200A
Width :
4mm or others
Length :
120mm or others
Transport Package :
as Per Your Requests
Engine Type :
red
Color :
Electric
Description
Insulated Custom Flat Battery Flexible Copper Bus Bar 380V
Product Specifications
Material Brass; Red Copper
Rated Voltage 380V
Rated Current 100-200A
Width 4mm or others
Length 120mm or others
Transport Package as Per Your Requests
Premium Copper Busbar for Energy Systems
Our high-performance Copper Electric Busbar delivers exceptional conductivity and reliability for power distribution in demanding applications. Manufactured from 99.99% oxygen-free copper (T2 copper), it offers outstanding electrical performance with minimal resistance.
Insulated Custom Flat Battery Flexible Copper Bus Bar 380V Insulated Custom Flat Battery Flexible Copper Bus Bar 380V
Key Advantages
  • Superior Conductivity: 99.99% pure copper (T2) with 57% conductivity rating
  • Wide Current Capacity: 100A to 200A for HV/LV battery systems (12V, 24V, 48V)
  • Robust Insulation: PE heat shrink tubes and PVC dipping options
  • Custom Dimensions: Thickness from 3mm, width 4-300mm, lengths to 120mm+
  • Enhanced Protection: Nickel, tin, or silver plating (3-12μm) available
  • Extreme Temperature Range: -45°C to +150°C operation
  • Safety Certified: UL94-V-0 fire resistance standard
Technical Specifications
Material Copper (T2, 99.99% pure)
Surface Treatment PE Heat Shrink, PVC Dipping, Epoxy Coating
Dimensions Thickness: 3mm+; Width: 4-300mm; Length: 120mm+
Plating Options Nickel, Tin, or Silver (3-12μm)
Electrical Properties Resistance: 0.00001Ω; Conductivity: 57%
Certifications ISO, RoHS, SGS
Lead Time 1-2 Weeks (Sample orders: 3-7 working days)
Industrial Applications
  • Energy Storage Systems (Lithium battery packs, solar storage)
  • Electric Vehicles (Battery cell interconnections)
  • Rail Transit Systems (Power distribution components)
  • Industrial Battery Systems (12V-48V+ configurations)
  • High-performance Electronics (Drones, power banks)
Insulated Custom Flat Battery Flexible Copper Bus Bar 380V
Frequently Asked Questions
What current range does this busbar support?
Designed for 100A to 200A applications, suitable for 12V, 24V, and 48V battery systems.
Are custom sizes available?
Yes, we offer complete customization of thickness (3mm+), width (4-300mm), and length (120mm+).
What insulation options are offered?
Choose between PE heat shrink tubes, PVC dipping, or epoxy powder coating for optimal protection.
What is the operating temperature range?
Rated for -45°C to +150°C, ensuring reliable performance in extreme conditions.
