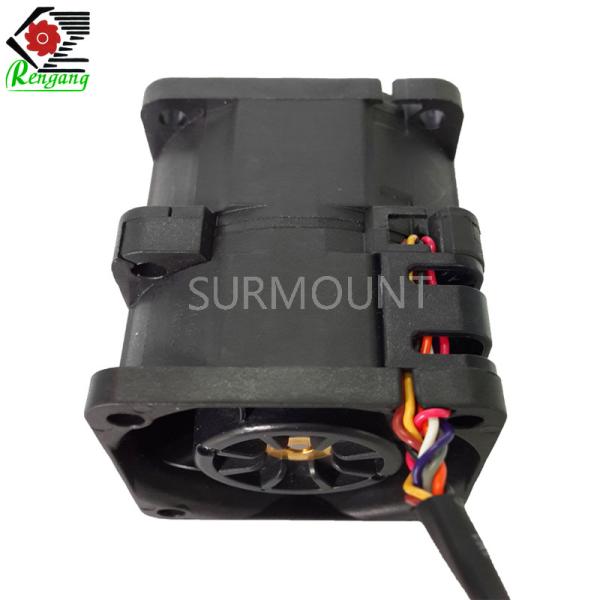

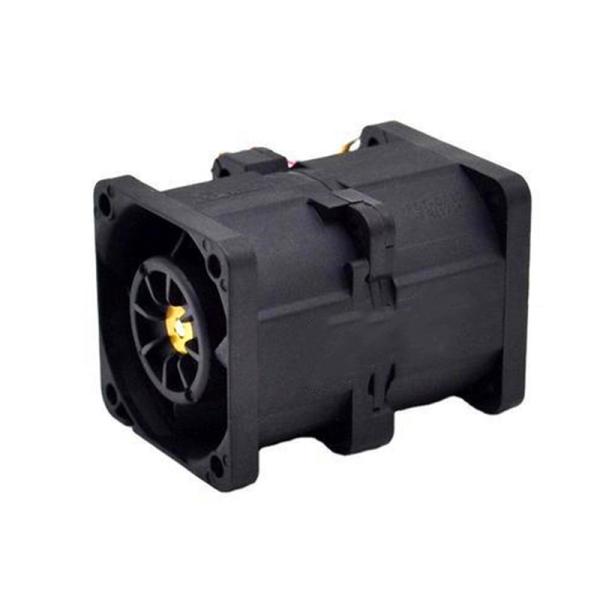

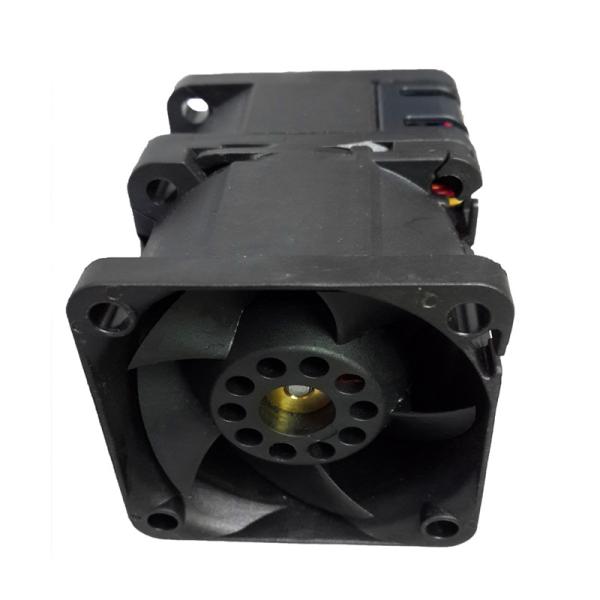

Lightweight Heat Dissipation DC Axial Cooling Fan With PWM Control
Lightweight Heat Dissipation DC Axial Cooling Fan With PWM Control
Lightweight Heat Dissipation DC Axial Cooling Fan With PWM Control
Lightweight Heat Dissipation DC Axial Cooling Fan With PWM Control
Lightweight Heat Dissipation DC Axial Cooling Fan With PWM Control
Lightweight Heat Dissipation DC Axial Cooling Fan With PWM Control
Specifications
Brand Name :
Surmount
Model Number :
RGD4056
Certification :
CE
Place of Origin :
China
MOQ :
50PCS
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
600 pieces per day
Delivery Time :
5~8 working days
Packaging Details :
Carton
Size :
80x80x25mm
Frame Material :
Plastic
Impeller Material :
Plastic
Weight :
90g
Rated Voltage :
12V
Noise :
54~61dBA
Rated Current :
0.52~1.15A
Rated Input Power :
6.24~13.8W
Speed :
14000~19000RPM
Bearing Type :
Ball/Sleeve
Air Flow :
22.5~30.72CFM
Lead Wire :
AWG#24 UL 1007(Optional)
Life Time :
40000 Hours
Mounting :
Free standing
Description

New Arrival 40x40x56mm 12V DC Axial Cooling Fan 4056 With PWM Control

What is a DC cooling fan?
DC fans also known as DC Brushless Fans are basically cooling fans engineered to meet requirements such as higher air flows at high static pressures. RENGANG manufactures Brushless DC fans in varied sizes ranging from 60 mm to 280 mm. These fans are available in the plastic blade as well as the metal blade.


What are axial fans used for?
In general, an axial-flow fan is suitable for a larger flow rate with a relatively small pressure gain and a centrifugal fan for a comparatively smaller flow rate and a large pressure rise. They are used to supply fresh air, suck air from return air trenches, suck air from rotary filters, exhaust air out, etc.

DC Axial Cooling Fan RGD4056

Energy Saving Noise Reduction Soft Wind Long Lasting

Basic Parameter:

Model No. Bearing Voltage Operating Voltage Range Current Rated Input Power Air Flow Air pressure Noise Speed
(V) (V) (A) (W) (CFM) (m3/min) (mm-H2O) (inch-H2O) (dBA) (RPM)
RGD4056L12B(S) Ball/Sleeve 12 10.8~13.2 0.52 6.24 22.95 0.65 36.83 1.45 54 14000
RGD4056M12B(S) 0.6 7.2 24.72 0.70 41.91 1.65 56 15000
RGD4056H12B(S) 0.9 10.8

27.19

 0.77 51.05 2.01 58 16700
RGD4056D12B(S) 1.15 13.8 30.72 0.87 64.23 2.53 61 19000

All designs and specifications are for reference only and are subject to change without prior notice.

The different customer requirements and different raw materials will lead to different data.

The provider data are used for reference only. For future information, please contact us.

Electrical Specification
Item
Specification/Condition
Dielectric Strength
500V/1mA/2s
Insulation Resistance
10MΩ (Ambient temperature 25℃)
Temperature Test of Run
△t=<70℃ Rated Voltage
Locked Rotor Protection
△t=<130℃ Rated Voltage
Pound resistance
It can withstand the shock from all three axes by 60g and two times per 11ms.
Vibration resistance
It can withstand vibrations from 5-30Hz,0.04g to 30-500Hz, and 2g peak to peak amplitude for 5 minutes to all three axes.
Lock Test
Locked for at least 72hrs at rated voltage, the fans run normally after the lock is released.
Reversal Volage Test
Test with reversal working voltage for 2~3minutes, all remain still, but all
fans run normally after corrected voltage.
Environmental Specification
Item
Specification/Condition
Operating Temp. Range
Temperature:-10℃~70℃ Humidity:20%~85%RH
Storage Temperature
Temperature:-40℃~80℃
Humidity:20%~95%RH

Applicable:

Desktop, PC

Telecommunication

Mobile Device

Autotronics

Server Application

Medical Appliance

Commercial Device

Household Device

Lightweight Heat Dissipation DC Axial Cooling Fan With PWM Control

Plug Type:

Lightweight Heat Dissipation DC Axial Cooling Fan With PWM Control

Drawing:

Lightweight Heat Dissipation DC Axial Cooling Fan With PWM Control

Parts:

Lightweight Heat Dissipation DC Axial Cooling Fan With PWM Control

Payment:

1.Trade Assurance: In the first order, we suggest you use Trade Assurance.

2.T/T: If stocks,100% payment before shipping; if customized order, 30% deposit before production and balance 70% should be paid before delivery.

3.Western Union, Money Gram, Paypal, all available.

4.L/C: for large order.
Lightweight Heat Dissipation DC Axial Cooling Fan With PWM Control

Shipping:

1.ln general, we use international express, DHL, UPS,FedEx,EMS,TNT, etc.Large order: by air or sea, you should choose it.

2. if you have your own forwarder, please tell us the detailed information.

Lightweight Heat Dissipation DC Axial Cooling Fan With PWM Control

Why Choose Us?
  • Over 20 Years of thermal experience, provide Thermal Total Solution.
  • The complete product line provides an All a One integration service.
  • Affirmative by customers, your trusty partner.
  • Provide business service of receive order and deliver goods in both of China.
  • Fast delivery time and good quality.
FAQ

Help us to provide the right product fan for you:

  • Fan Type, DC/AC
  • Case Size (Dimensions)
  • Speed
  • Air Flow
  • Noise
  • Rating Voltage, 3V/5V/12V/48V/115V/220-240V
  • Bearing, Sleeve/2Ball/VAPO
  • Wire, 2 lead wires/3 lead wires/4 lead wires
  • Wire Length
  • Connector or not
  • Target Price
