Square Sleeve Bearing DC Axial Cooling Fan , 40mm Case Fan Plastic Blade
Square Sleeve Bearing DC Axial Cooling Fan , 40mm Case Fan Plastic Blade
Square Sleeve Bearing DC Axial Cooling Fan , 40mm Case Fan Plastic Blade
Square Sleeve Bearing DC Axial Cooling Fan , 40mm Case Fan Plastic Blade
Square Sleeve Bearing DC Axial Cooling Fan , 40mm Case Fan Plastic Blade
Square Sleeve Bearing DC Axial Cooling Fan , 40mm Case Fan Plastic Blade
Specifications
Brand Name :
Surmount
Model Number :
RGD4007
Certification :
CE
Place of Origin :
China
MOQ :
50PCS
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
800 pieces per day
Delivery Time :
5~8 working days
Packaging Details :
Carton
Size :
40x40x7mm
Frame Material :
Plastic
Impeller Material :
Plastic
Weight :
10g
Rated Voltage :
5V/12V
Noise :
30.5~35.4dBA
Rated Current :
1.08~1.56A
Rated Input Power :
0.09~0.26W
Speed :
6500~7500RPM
Bearing Type :
Sleeve
Air Flow :
5.99~6.73CFM
Lead Wire :
AWG#26 UL 1007(Optional)
Life Time :
40000 Hours
Mounting :
Free standing
Description

DC Axial Mini Cooling Fan 40x40x7mm 5V 12V DC Brushless Cooling Fan 4007

What is a DC cooling fan?
DC fans also known as DC Brushless Fans are basically cooling fans engineered to meet requirements such as higher air flows at high static pressures. RENGANG manufactures Brushless DC fans in varied sizes ranging from 60 mm to 280 mm. These fans are available in a plastic blade as well as a metal blade.

DC Axial Cooling Fan RGD4007

Energy Saving Noise Reduction Soft Wind Long Lasting

Basic Parameters:

Model No. Bearing Voltage Current Rated input power Airflow Air pressure Noise Speed
(V) (A) (W) (CFM) (mm-H2O) (inch-H2O) (dBA) (RPM)
RGD4007H5S Sleeve 5 1.30 0.26 6.73 14.08 0.13 35 7500
RGD4007M5S 1.10 0.22 5.99 11.89 0.10 30 6500
RGD4007H12S 12 1.56 0.13 6.73 14.08 0.13 35 7500
RGD4007M12S 01.08 0.09 5.99 7.88 0.10 30 6500

If the parameters you need are not in the table,

Please contact us, We can customize it according to your requirements.

Customized Support: OEM, ODM.

After-sales Service Provided: Free Spare Parts

Operating temperature: -10℃~60℃

Storage temperature: -20℃~70℃

Warranty: 1 Year

Applicable: Humidifier, Air Cleaner, Sound, etc

Square Sleeve Bearing DC Axial Cooling Fan , 40mm Case Fan Plastic Blade

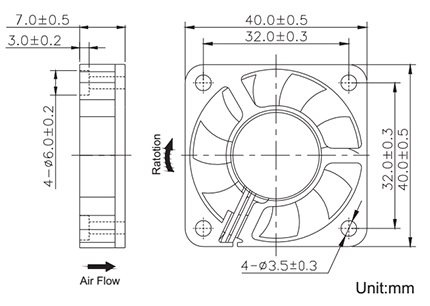

Drawing:

Square Sleeve Bearing DC Axial Cooling Fan , 40mm Case Fan Plastic Blade

Performance Curve:

Square Sleeve Bearing DC Axial Cooling Fan , 40mm Case Fan Plastic Blade

Schematic diagram of the cooling fan assembly:

Square Sleeve Bearing DC Axial Cooling Fan , 40mm Case Fan Plastic Blade

Payment:

1.Trade Assurance: In the first order, we suggest you use Trade Assurance.

2.T/T: If stocks,100% payment before shipping; if customized order, 30% deposit before production and balance 70% should be paid before delivery.

3.Western Union, Money Gram, Paypal, all available.

4.L/C: For large orders.
Square Sleeve Bearing DC Axial Cooling Fan , 40mm Case Fan Plastic Blade

Shipping:

1.ln general, we use international express, DHL, UPS,FedEx,EMS,TNT, etc.Large order: by air or sea, you should choose it.

2. if you have your own forwarder, please tell us the detailed information.

Square Sleeve Bearing DC Axial Cooling Fan , 40mm Case Fan Plastic Blade
