120x120x38mm DC Axial Cooling Fan 12V 24V High Speed With 5 Blades
120x120x38mm DC Axial Cooling Fan 12V 24V High Speed With 5 Blades
120x120x38mm DC Axial Cooling Fan 12V 24V High Speed With 5 Blades
120x120x38mm DC Axial Cooling Fan 12V 24V High Speed With 5 Blades
Specifications
Brand Name :
Surmount
Model Number :
RG12038 (5 Blades)
Certification :
CE
Place of Origin :
China
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
600 pieces per day
Delivery Time :
10~15 working days
Packaging Details :
Carton
Size :
120x120x38mm
Frame Material :
Aluminium Alloy
Impeller Material :
Plastic
Weight :
530g
Rated Voltage :
12V 24V
Noise :
46~72dBA
Rated Current :
0.23~2.40A
Rated Input Power :
8.88~96W
Speed :
3800~11500RPM
Bearing Type :
Ball Bearing
Air Flow :
95~243CFM
Lead Wire :
AWG#22 UL 1007(Optional)
Life Time :
50000 Hours
Mounting :
Screw Fixation
Motor :
Shaded Pole Induction Motor
Frequency :
50/60Hz
Description

120x120x38mm DC Axial Cooling Fan 12V 24V High Speed With 5 Blades

12038 DC Axial Cooling Fan 12v 24v High Speed 120x120x38mmwith 5 Blades

DC Axial Cooling Fan RGD12038

Energy Saving Noise Reduction Soft Wind Long Lasting

Basic Parameter:

Model No.

Rated Voltage

Operating Voltage Range

PWM Duty

Rated Current

Rated Input

Rated Speed

Max. Airflow

Max. Static Pressure

SPL

Operating Temperture

Expected Life

[V]

[V]

cycle* [%]

[A]

[W]

[min¯¹]

[m³/min]

[CFM]

[Pa]

[inch H₂O]

[dB(A)]

[°C]

[h]

RGD12038B12H

24

21.6 to 26.4

100

2.40

57.60

9600

7.00

2.47

950.00

3.82

71

-20 to +70

40000/60°C (70000/40°C)

0

0.37

8.88

3800

2.70

95.00

161.00

0.65

46

RGD12038B48H

48

36 to 60

100

2.00

96.00

11500

8.30

293.00

1300.00

5.22

75

0

0.23

11.00

3800

2.70

95.00

161.00

0.65

46

RGD12038B48M

100

1.40

67.00

10000

7.20

254.00

1050.00

4.22

72

0

0.23

11.00

3800

2.70

95.00

161.00

0.65

46

Drawing:

120x120x38mm DC Axial Cooling Fan 12V 24V High Speed With 5 Blades

Dimensions of Mounting Holes and Vent Opening:

120x120x38mm DC Axial Cooling Fan 12V 24V High Speed With 5 Blades

Characteristic Curve:

RGD12038B12H

120x120x38mm DC Axial Cooling Fan 12V 24V High Speed With 5 Blades

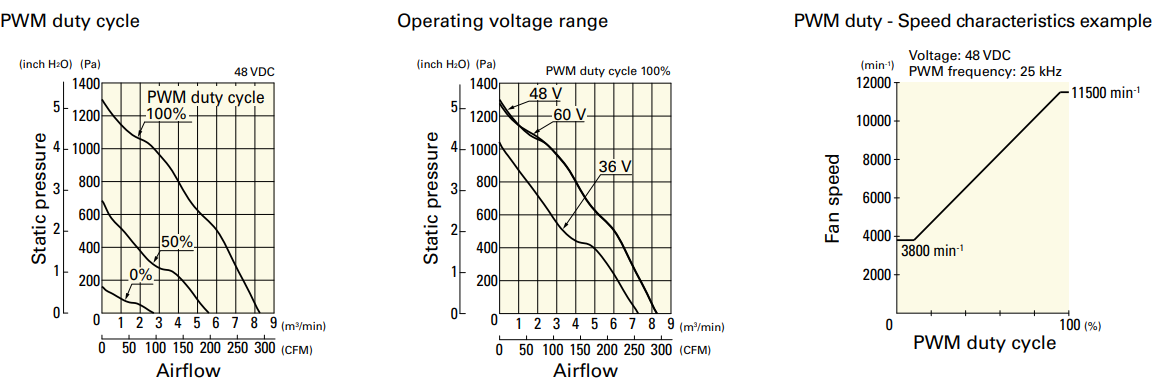

RGD12038B48H 120x120x38mm DC Axial Cooling Fan 12V 24V High Speed With 5 Blades

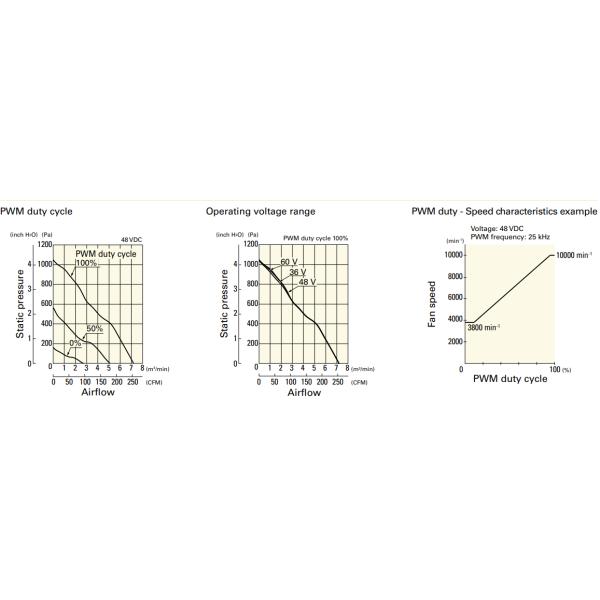

RGD12038B48M

120x120x38mm DC Axial Cooling Fan 12V 24V High Speed With 5 Blades

Parts:

120x120x38mm DC Axial Cooling Fan 12V 24V High Speed With 5 Blades

Payment:

1.Trade Assurance: In the first order, we suggest you use Trade Assurance.

2.T/T: If stocks,100% payment before shipping; if customized order, 30% deposit before production and balance 70% should be paid before delivery.

3.Western Union, Money Gram, Paypal, all available.

4.L/C: for large order.

FAQ

Q1: Are you a trading company or manufacturer?
A1: We are a factory specializing in Thermal and Terminal solutions for 18 years.
Q2: Where is the location for Linkwell Electric?
A2: Our Head company in Shanghai, Factory in Kunshan, closed to shanghai.
Q3: Can you make customized products or packing?
A3: Of course, we have a technical team with rich experience in OEM production. We can also make customized models according to provided samples. A package can be customized as demanded.
Q4: How long is the production time?
A4: Usually it takes about 2-3 weeks upon receipt of order advance payment.
Q5: How about the after-sale service? What are the warranty terms?
A5: Our salespeople and engineers will always ask you to solve problems. Quality warranty is 1 year
