12038 DC Axial Cooling Fan 12V 24V 48V Aluminum Frame 9 Blades 120x120x38mm
12038 DC Axial Cooling Fan 12V 24V 48V Aluminum Frame 9 Blades 120x120x38mm
12038 DC Axial Cooling Fan 12V 24V 48V Aluminum Frame 9 Blades 120x120x38mm
12038 DC Axial Cooling Fan 12V 24V 48V Aluminum Frame 9 Blades 120x120x38mm
12038 DC Axial Cooling Fan 12V 24V 48V Aluminum Frame 9 Blades 120x120x38mm
12038 DC Axial Cooling Fan 12V 24V 48V Aluminum Frame 9 Blades 120x120x38mm
Specifications
Brand Name :
Surmount
Model Number :
RG12038 (9 Blades)
Certification :
CE
Place of Origin :
China
MOQ :
50PCS
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
600 pieces per day
Delivery Time :
5~8 working days
Packaging Details :
Carton
Size :
120x120x38mm
Frame Material :
Aluminium Alloy
Impeller Material :
Plastic
Weight :
530g
Rated Voltage :
5V 12V 24V
Noise :
48~64dBA
Rated Current :
0.46~4.00A
Rated Input Power :
11~48W
Speed :
3400~6000RPM
Bearing Type :
Ball/Sleeve
Air Flow :
29~47CFM
Lead Wire :
AWG#22 UL 1007(Optional)
Life Time :
50000 Hours
Mounting :
Screw Fixation
Motor :
Shaded Pole Induction Motor
Frequency :
50/60Hz
Description

DC Axial Cooling Fan 120x120x38mm 5V 12V 24V Aluminum Frame With 9 Blades

DC Axial Cooling Fan RGD12038

Energy Saving Noise Reduction Soft Wind Long Lasting

Basic Parameter:

The models listed below have pulse sensors.

Model No. Rated Voltage Operating Voltage Range Rated Current Rated Input Rated Speed Max. Airflow Max. Static Pressure SPL Operating Temperture Expected Life
[V] [V] [A] [W] [min¯¹] [m³/min] [CFM] [Pa] [inch H₂O] [dB(A)] [°C] [h]
RGD12038H12BPL 12 10.2 to 13.8 4 48.0 6000 7.35 260 340 1.37 64 -20 to +70 40000/60°C
RGD12038L24BPL 24 20.4 to 27.6 2 48.0 6000 7.35 260 340 1.37 64
RGD12038H24BPL 0.46 11.0 3400 4.02 142 126 0.51 48
RGD12038H48BPL 48 40.8 to 55.2 1 48.0 6000 7.35 260 340 1.37 64

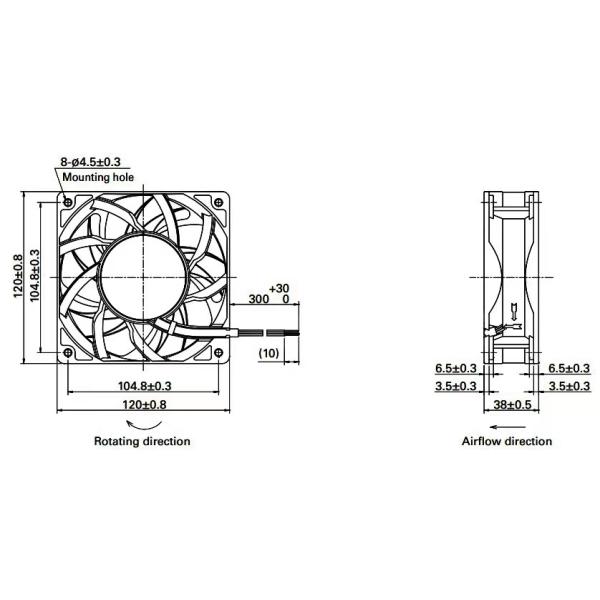

Drawing:

12038 DC Axial Cooling Fan 12V 24V 48V Aluminum Frame 9 Blades 120x120x38mm

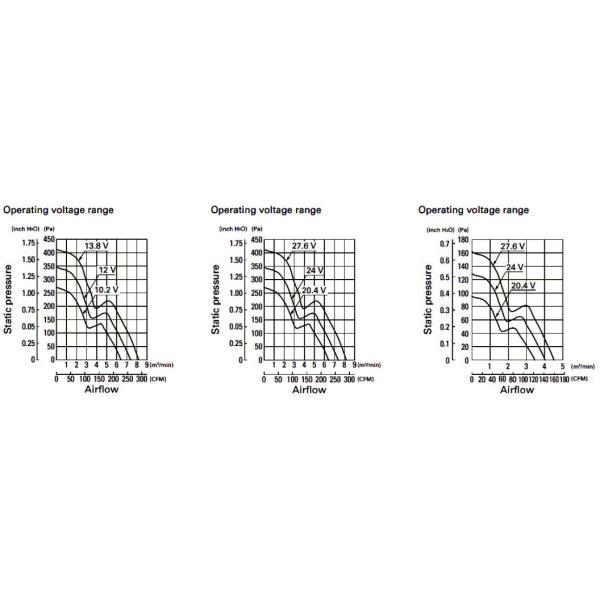

Characteristic Curve:

RGD12038H12BPL RGD12038L24BPL RGD12038H24BPL

12038 DC Axial Cooling Fan 12V 24V 48V Aluminum Frame 9 Blades 120x120x38mm

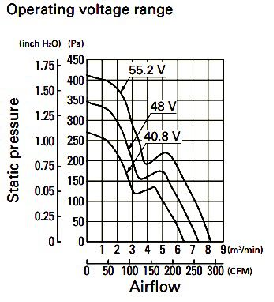

RGD12038H48BPL

12038 DC Axial Cooling Fan 12V 24V 48V Aluminum Frame 9 Blades 120x120x38mm

Parts:

12038 DC Axial Cooling Fan 12V 24V 48V Aluminum Frame 9 Blades 120x120x38mm

Payment:

1.Trade Assurance: In the first order, we suggest you use Trade Assurance.

2.T/T: If stocks,100% payment before shipping; if customized order, 30% deposit before production and balance 70% should be paid before delivery.

3.Western Union, Money Gram, Paypal, all available.

4.L/C: for large order.
12038 DC Axial Cooling Fan 12V 24V 48V Aluminum Frame 9 Blades 120x120x38mm

Shipping:

1.ln general, we use international express, DHL, UPS,FedEx,EMS,TNT, etc.Large order: by air or sea, you should choose it.

2. if you have your own forwarder, please tell us the detailed information.

12038 DC Axial Cooling Fan 12V 24V 48V Aluminum Frame 9 Blades 120x120x38mm

FAQ

Q1: Are you a trading company or manufacturer?
A1: We are a factory specializing in Thermal and Terminal solutions for 18 years.
Q2: Where is the location for Linkwell Electric?
A2: Our Head company in Shanghai, Factory in Kunshan, closed to shanghai.
Q3: Can you make customized products or packing?
A3: Of course, we have a technical team with rich experience in OEM production. We can also make customized models according to provided samples. A package can be customized as demanded.
Q4: How long is the production time?
A4: Usually it takes about 2-3 weeks upon receipt of order advance payment.
Q5: How about the after-sale service? What are the warranty terms?
A5: Our salespeople and engineers will always ask you to solve problems. Quality warranty is 1 year
