5V 12V 24V DC Axial Cooling Fan 60x60x10mm Low Noise Air Ventilation Fan
5V 12V 24V DC Axial Cooling Fan 60x60x10mm Low Noise Air Ventilation Fan
5V 12V 24V DC Axial Cooling Fan 60x60x10mm Low Noise Air Ventilation Fan
5V 12V 24V DC Axial Cooling Fan 60x60x10mm Low Noise Air Ventilation Fan
5V 12V 24V DC Axial Cooling Fan 60x60x10mm Low Noise Air Ventilation Fan
5V 12V 24V DC Axial Cooling Fan 60x60x10mm Low Noise Air Ventilation Fan
5V 12V 24V DC Axial Cooling Fan 60x60x10mm Low Noise Air Ventilation Fan
5V 12V 24V DC Axial Cooling Fan 60x60x10mm Low Noise Air Ventilation Fan
Specifications
Brand Name :
Surmount
Model Number :
RGD6010
Certification :
CE, SGS
Place of Origin :
China
MOQ :
50PCS
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
600 pieces per day
Delivery Time :
5~8 working days
Packaging Details :
Carton
Size :
60x60x10mm
Frame Material :
Plastic
Impeller Material :
Plastic
Weight :
25g
Rated Voltage :
5V/12V/24V
Noise :
26~28dBA
Rated Current :
0.07~0.35A
Rated Input Power :
0.85~2.64W
Speed :
3000~4200RPM
Bearing Type :
Ball/Sleeve
Air Flow :
11.25~20.25CFM
Lead Wire :
AWG#26 UL 1007(Optional)
Life Time :
50000 Hours
Mounting :
Free standing
Description

DC Axial Cooling Fan 60x60x10mm 5V 12V 24V 6010 Low Noise Air Ventilation Fan

What is a DC cooling fan?
DC fans also known as DC Brushless Fans are basically cooling fans engineered to meet requirements such as higher air flows at high static pressures. RENGANG manufactures Brushless DC fans in varied sizes ranging from 60 mm to 280 mm. These fans are available in the plastic blade as well as the metal blade.


What are axial fans used for?
In general, an axial-flow fan is suitable for a larger flow rate with a relatively small pressure gain and a centrifugal fan for a comparatively smaller flow rate and a large pressure rise. They are used to supply fresh air, suck air from return air trenches, suck air from rotary filters, exhaust air out, etc.

DC Axial Cooling Fan RGD6010

Energy Saving Noise Reduction Soft Wind Long Lasting

Basic Parameter:

Model No. Bearing Voltage Current Rated Input Power Airflow Air pressure Noise Speed
(V) (A) (W) (CFM) (m3/min) (inch-H2O) (mm-H2O) (dBA) (RPM)
RGD6010H5B(S) Ball/Sleeve 5
 0.35 1.65 15.02 0.43 0.08 1.92 28 4200
RGD6010M5B(S) 0.20 1.1 13.15 0.37 0.07 1.72 27 3600
RGD6010L5B(S) 0.17 0.85

11.25

 0.32 0.06 1.46 26 3000
RGD6010H12B(S) 12 0.22 2.64 20.25 0.57 0.10 2.55 28 4200
RGD6010M12B(S) 0.17 2.04

16.85

 0.47 0.08 2.15 27 3600
RGD6010L12B(S) 0.14 1.68 13.15 0.37 0.07 1.72 26 3000
RGD6010H24B(S) 24 0.11 2.64 15.02 0.42 0.08 1.92 28 4200
RGD6010M24B(S) 0.09 2.16 13.15 0.37 0.07 1.72 27 3600
RGD6010L24B(S) 0.07 1.68 11.25 0.32 0.06 1.46 26 3000

Appearance and data are subject to change without notice!

The different customer requirements and different raw materials will lead to different data.

The provider data are used for reference only. For future information, please contact us.

Customized Support: OEM, ODM.

Operating temperature: -10℃~60℃

Storage temperature: -20℃~70℃

After-sales Service Provided: Free Spare Parts

Warranty: 1 Year

Motor: DC Brushless Motor

Insulation Class: Class B

Color: Black

Applicable: Household Appliance, Electrical Cabinet, UPS Power, etc

5V 12V 24V DC Axial Cooling Fan 60x60x10mm Low Noise Air Ventilation Fan

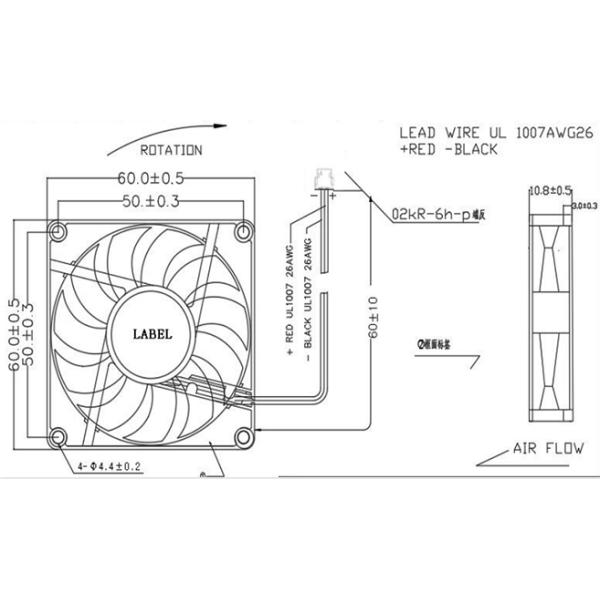

Drawing:

5V 12V 24V DC Axial Cooling Fan 60x60x10mm Low Noise Air Ventilation Fan

Characteristic Curve:

5V 12V 24V DC Axial Cooling Fan 60x60x10mm Low Noise Air Ventilation Fan

Plug Type:

5V 12V 24V DC Axial Cooling Fan 60x60x10mm Low Noise Air Ventilation Fan

Parts:

5V 12V 24V DC Axial Cooling Fan 60x60x10mm Low Noise Air Ventilation Fan

DC Axial fan's care instruction:

Clean the dust off the cooling fan regularly: first, find the dust collection place on the fan blade, and clean it with a soft brush. After cleaning, restore the cooling fan.
