SMA Quick Connect Plug Adapter Bel Fuse 142-1901-821 Featuring Solid Metal to Metal Coupling Hardware
SMA Quick Connect Plug Adapter Bel Fuse 142-1901-821 Featuring Solid Metal to Metal Coupling Hardware
SMA Quick Connect Plug Adapter Bel Fuse 142-1901-821 Featuring Solid Metal to Metal Coupling Hardware
SMA Quick Connect Plug Adapter Bel Fuse 142-1901-821 Featuring Solid Metal to Metal Coupling Hardware
SMA Quick Connect Plug Adapter Bel Fuse 142-1901-821 Featuring Solid Metal to Metal Coupling Hardware
SMA Quick Connect Plug Adapter Bel Fuse 142-1901-821 Featuring Solid Metal to Metal Coupling Hardware
Specifications
Connector Type :
接头
Frequency :
18GHz
Impedance :
50Ω
Description :
Connector 18GHz 50Ω Coaxial Connector (RF) Adapters RoHS
Mfr. Part # :
142-1901-821
Model Number :
142-1901-821
Description

Product Overview

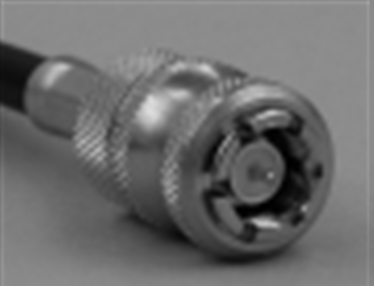

The Johnson SMA Quick-Connect Plug is designed for rapid test connections to devices with standard, threaded SMA Jack receptacles. It maintains full SMA electrical performance by utilizing a solid metal-to-metal coupling, ensuring a reliable connection with minimal signal leakage and lower VSWR compared to many push-on connectors. The plug achieves full Mil-C-39012 electrical compatibility through a simple push and twist motion, with the knurled thumbnut requiring only one half to one full turn for a secure electromechanical connection. Disconnection is equally swift with a twist and pull motion. The SMA Quick-Connect Plug Adapter transforms a standard SMA Plug test cable into a Quick-Connect cable, significantly increasing testing efficiency by reducing connection and disconnection time and effort.

Product Attributes

  • Brand: Cinch Connectivity Solutions
  • Origin: USA
  • Coupling Hardware: Nickel plated
  • Body: Gold plated

Technical Specifications

Part Number Cable Type VSWR & Frequency Range (Gold Plated*)
142-1403-001 RG-161/U, 174, 188, 316 1.15 + .02 f (GHz) 0-12.4 GHz
142-1404-001 RG-188 DS, RG-316 DS 1.15 + .02 f (GHz) 0-12.4 GHz
142-1407-001 RG-58/U, 141, 303 1.15 + .01 f (GHz) 0-12.4 GHz
142-1408-001 RG-55/U, 142, 223, 400 1.15 + .01 f (GHz) 0-12.4 GHz
142-1901-821 (Not Specified) 1.05 + .005 f (GHz) 0-18 GHz

*Nickel plated coupling hardware, gold plated body


2411192350_Bel-Fuse-142-1901-821_C6041521.pdf
