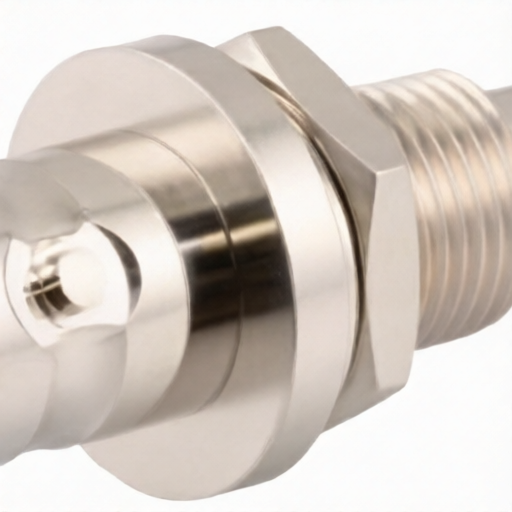

SMA female to BNC female straight bulkhead adapter L-com LCAD30027 designed for dependable RF connections up to 4 GHz
SMA female to BNC female straight bulkhead adapter L-com LCAD30027 designed for dependable RF connections up to 4 GHz
Specifications
Description :
Coaxial Connector (RF) Adapters RoHS
Mfr. Part # :
LCAD30027
Model Number :
LCAD30027
Description

Product Overview

This L-com RF Coaxial Adapter, model LCAD30027, is designed to interface between SMA and BNC coaxial connections. It features a straight bulkhead adapter with a female to female configuration, providing in-series BNC to BNC connections. The adapter operates up to 4 GHz and boasts gold-plated center contacts for enhanced performance. Its SMA interface is defined by Mil-STD-348A, offering a threaded coupling method and a robust center contact. The BNC interface is also defined by Mil-STD-348A, featuring a tool-free bayonet mount coupling mechanism. Both SMA and BNC connectors ensure a highly dependable RF coaxial connection.

Product Attributes

  • Brand: L-com
  • Model: LCAD30027
  • Material: Brass with Nickel finish
  • Plating: Gold Plated Center Contacts
  • Certifications: Mil-STD-348A (for SMA and BNC interface definitions)

Technical Specifications

SpecificationDescriptionValue
Connector 1 TypeSMA FemaleStandard Polarity
Connector 2 TypeBNC FemaleStandard Polarity
Impedance50 Ohm
Body GeometryStraight
Mount MethodBulkhead
Frequency RangeDC to 4 GHz
Operating Voltage (AC)335 VrmsMinimum
Dielectric Withstanding Voltage (AC)1,000 Vrms
Operating Temperature Range-65C to +165C
Connector 1 Contact Material/PlatingPhosphor Bronze / Gold
Connector 2 Contact Material/PlatingPhosphor Bronze / Gold
Outer Conductor Material/PlatingBrass / Nickel
Body Material/PlatingBrass / Nickel
Gasket MaterialSilicone
Dimensions (Length)1.32in [33.53mm]
Dimensions (Width)0.6in [15.24mm]

2310201433_L-com-LCAD30027_C6443482.pdf
