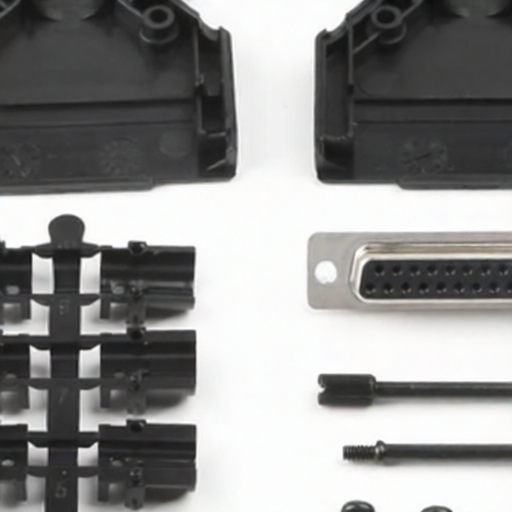

RoHS compliant MH CONNECTORS MHDTPPK25-DB25S-K connector featuring SPCC shell and PBT plastic material
RoHS compliant MH CONNECTORS MHDTPPK25-DB25S-K connector featuring SPCC shell and PBT plastic material
Specifications
Description :
D-Sub, D-Shaped Connector Backshells, Hoods RoHS
Mfr. Part # :
MHDTPPK25-DB25S-K
Model Number :
MHDTPPK25-DB25S-K
Description

Product Overview

This series of connectors fully conforms to European Union Directives for RoHS compliancy. The product line includes various configurations for different pin counts, indicated by part numbers such as MHDTPPK9-DB9S-K, MHDTPPK15-DB15S-K, MHDTPPK25-DB25S-K, and MHDTPPK37-DB37S-K. These connectors are designed for reliable electrical connections with specific performance characteristics.

Product Attributes

  • Brand: MH CONNECTORS, DIVISION OF EDAC
  • Certifications: RoHS Compliant (EU Directives 2011/65/EC, 2015/863/EU, 2011/65/EU)
  • Material - Plastic: PBT+30% G.F (UL94V-0)
  • Material - Terminal: Brass, tin-gold plated
  • Material - Shell: SPCC (front shell nickel plated, back shell nickel plated)
  • Color: BLACK (Plastic)

Technical Specifications

Model SeriesRated VoltageRated CurrentContact Resistance (Max)Insulation Resistance (Min)Withstand VoltageTemperature Range
MHDTPPK9-DB9S-K250V3AMP20M1000M MIN. at 500V DC500V Per minute-55 -105 C
MHDTPPK15-DB15S-K250V3AMP20M1000M MIN. at 500V DC500V Per minute-55 -105 C
MHDTPPK25-DB25S-K250V3AMP20M1000M MIN. at 500V DC500V Per minute-55 -105 C
MHDTPPK37-DB37S-K250V3AMP20M1000M MIN. at 500V DC500V Per minute-55 -105 C

2410121951_MH-CONNECTORS-MHDTPPK25-DB25S-K_C5768672.pdf
