Durable backshell connector MH CONNECTORS MHTRI-P-37-K with ABS UL 94-HB rated material and steel components
Durable backshell connector MH CONNECTORS MHTRI-P-37-K with ABS UL 94-HB rated material and steel components
Specifications
Description :
D-Sub, D-Shaped Connector Backshells, Hoods RoHS
Mfr. Part # :
MHTRI-P-37-K
Model Number :
MHTRI-P-37-K
Description

Product Overview

This product series offers backshells for connectors, designed for RoHS compliance. They are constructed from durable materials and are available in various sizes to accommodate different connector configurations.

Product Attributes

  • Brand: MH CONNECTORS, DIVISION OF EDAC
  • Certifications: European Union Directives 2002/95/EC and 2002/96/EC for RoHS Compliancy
  • Backshell Material: ABS UL 94-HB RATED
  • Blanking Plate Material: ABS UL 94-HB RATED
  • Jack Screw Material: STEEL - BLACK OXIDE FINISH
  • Shell Screw Material: STEEL - BLACK OXIDE FINISH
  • Metal Clamp Material: STEEL - ZINC PLATED
  • Clamp Screw Material: STEEL - ZINC PLATED
  • Operating Temperature: -72F (approx. -58C)

Technical Specifications

Size A (mm/in) B (mm/in) C (mm/in) D (mm/in) Ordering Information (P/N-KITTED) Product Code
9-WAY 31.00 / 1.221 41.40 / 1.630 15.00 / 0.591 24.99 / 1.587 6550-0101-01 MHTRI-P-9-K
15-WAY 40.30 / 1.587 45.20 / 1.780 15.00 / 0.984 33.32 / 2.106 6550-0101-02 MHTRI-P-15-K
25-WAY 53.50 / 2.106 45.20 / 1.780 15.00 / 1.312 47.04 / 2.500 6550-0101-03 MHTRI-P-25-K
37-WAY 70.00 / 2.756 45.20 / 1.780 15.00 / 1.852 63.50 / 2.756 6550-0101-04 MHTRI-P-37-K

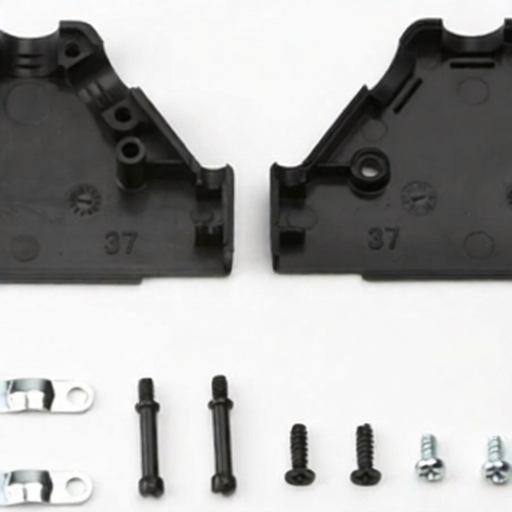

Backshell Kit Includes: (2) Backshell Halves, (2) Jackscrew 4-40, (2) Shell Screw, (2) Metal Clamp, (4) Clamp Screw, (2) Blanking Plate


2412061750_MH-CONNECTORS-MHTRI-P-37-K_C6591364.pdf
