2.0mm pitch plug in straight pin connector bent pin design JUSHUO JS20T S09PHW 00 suitable PCB mounting
2.0mm pitch plug in straight pin connector bent pin design JUSHUO JS20T S09PHW 00 suitable PCB mounting
Specifications
Y-Width of Bottom Edge on Board :
4.7mm
Reference Series :
PH
Pins Structure :
1x9P
Contact Plating :
锡
Contact Material :
黄铜;LCP
Operating Temperature :
-25℃~+85℃
Flame Retardant Rating :
UL94V-0
Pitch :
2mm
Voltage Rating (Max) :
250V
Number of PINs Per Row :
9
Number of Rows :
1
X-Length of Bottom Edge on Board (Spacing Line) :
20mm
Z-Height of the Board :
6mm
Mounting Type :
弯插
Description :
Connector Header 9 position 2mm Pitch Right Angle
Mfr. Part # :
JS20T-S09PHW-00
Package :
Through Hole,Right Angle,P=2mm
Model Number :
JS20T-S09PHW-00
Description

Product Overview

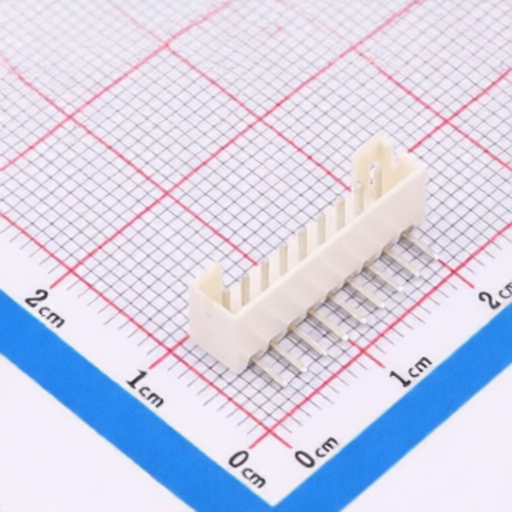

This product is a 2.0mm pitch plug-in straight pin connector with a bent pin design, suitable for PCB mounting. It is manufactured by SHENZHEN JUSHUO ELECTRONIC CO.,LTD.

Product Attributes

  • Brand: JUSHUO (JS)
  • Origin: SHENZHEN JUSHUO ELECTRONIC CO.,LTD
  • Model Number: JS20T-S**PHW-00
  • Series: PH 2.0mm
  • Type: Plug-in Straight Pin Connector ()
  • Date: 2018.6.16

Technical Specifications

ItemSpecification
Plastic MaterialPA66 (UL-94V-0)
Contact MaterialTin-plated Brass
Contact Resistance≤10mΩ
Insulation Resistance≥1000MΩ
Rated Voltage250V AC/DC
Rated Current2.0A AC/DC
Withstand Voltage1000V AC/Minute
Operating Temperature-25°C to +85°C
Solderability TestTin immersion area ≥95%, Temperature 235°C ±5°C, Time 2.5s ±0.5s
Environmental ComplianceMeets environmental requirements for lead, cadmium, and other six hazardous substances.

2401200255_JUSHUO-JS20T-S09PHW-00_C7499309.pdf
