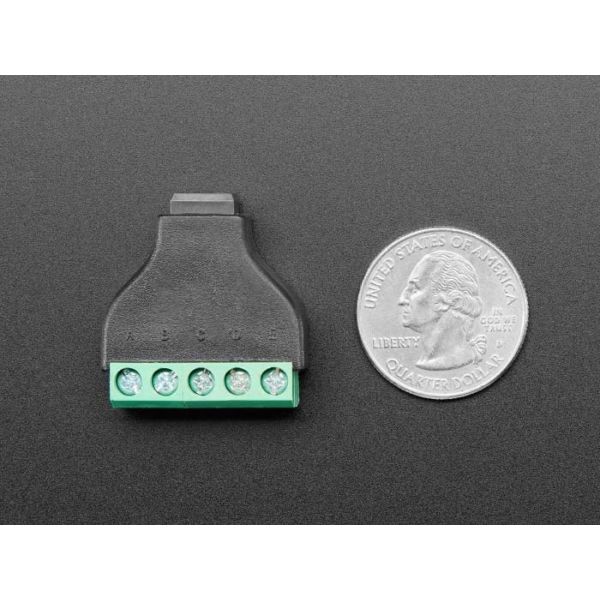

Custom USB OTG Cable Adapter USB Mini B Female Socket to 5 pin Terminal Block Adafruit Industries 3969
Custom USB OTG Cable Adapter USB Mini B Female Socket to 5 pin Terminal Block Adafruit Industries 3969
Specifications
Description :
Between Series Adapters RoHS
Mfr. Part # :
3969
Model Number :
3969
Description

Product Overview

This USB Mini B Female Socket to 5-pin Terminal Block adapter simplifies custom USB cable creation, allowing connection to devices with a mini USB plug or for building custom USB OTG devices and cables. It eliminates the need for soldering, utilizing screw terminal blocks for secure wire connections. All pins are clearly labeled for ease of use.

Product Attributes

  • Product ID: 3969

Technical Specifications

Specification Details
Connector Type USB Mini B Female Socket to 5-pin Terminal Block
Terminal Block Pitch 5mm
Product Dimensions 30.0mm x 28.0mm x 10.5mm / 1.2" x 1.1" x 0.4"
Product Weight 10.4g / 0.4oz
Pinout
  • A Pin 1 (V+)
  • B Pin 2 (D-)
  • C Pin 3 (D+)
  • D Pin 4 (ID)
  • E Pin 5 (GND)

2410311051_Adafruit-Industries-3969_C21510853.pdf
