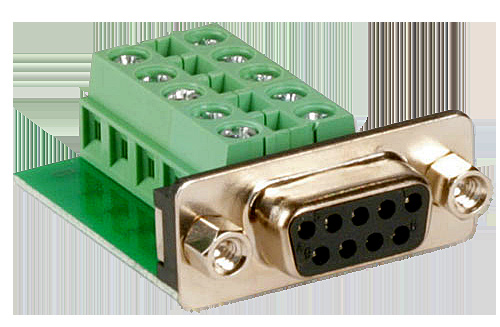

DB9 Female to Terminal Block Connector ADVANTECH BB-DGB9FT with Clear Labeling and 9 Separate Connection Points
DB9 Female to Terminal Block Connector ADVANTECH BB-DGB9FT with Clear Labeling and 9 Separate Connection Points
Specifications
Description :
Between Series Adapters RoHS
Mfr. Part # :
BB-DGB9FT
Model Number :
BB-DGB9FT
Description

Product Overview

The Advantech B+B SmartWorx BB-DGB9FT is a DB9 Female to Terminal Block Connector designed for easy and reliable field termination of DB9 cables. It offers 9 separate connection points corresponding to the DB9 connector positions, plus ground. The clearly labeled terminal block with set screws ensures reliable electrical connections and simplifies proper termination.

Product Attributes

  • Brand: Advantech B+B SmartWorx
  • Connector 1: DB9 female
  • Connector 2: Socket - Terminal Block
  • Contact Material: Brass
  • Contact Plating: Gold
  • Housing Material: PBT
  • Angle: Straight
  • Compliances: RoHS

Technical Specifications

Specification Details
Model Number BB-DGB9FT
Description DB9 Female to Terminal Block Connector
Connection Points 9 separate connection points (DB9 connector) + Shell
Terminal Block Labeling Labeled terminal block with set screws
Voltage Rating 1000 Vac, 500 Vdc
Current Rating 3 Amps
Number of Contacts 9
Dimensions 31.0 x 38.1 x 12.5 mm
Wiring Table (DB9 Pin # to Terminal Block #) 1:1, 2:2, 3:3, 4:4, 5:5, 6:6, 7:7, 8:8, 9:9, Shell:Shell

2412202226_ADVANTECH-BB-DGB9FT_C20866100.pdf
