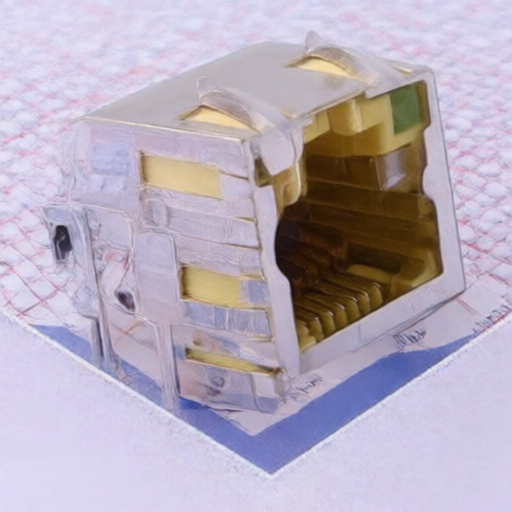

Internal RJ45 connector with spring loaded mechanism and LED indicators yellow housing RCH RC02515
Internal RJ45 connector with spring loaded mechanism and LED indicators yellow housing RCH RC02515
Specifications
Connector Type :
RJ45插座
PoE :
不带PoE
Shielding :
无屏蔽
Number of Ports :
1
Mounting Type :
弯插
LED :
不带LED
Description :
Jack Modular Connector RJ45 Through Hole, Right Angle Unshielded
Mfr. Part # :
RC02515
Package :
Through Hole,Right Angle
Model Number :
RC02515
Description

Product Overview

This product is an RJ45 connector designed for internal use by Wenzhou Ruichuan Electronics Co., Ltd. It features integrated LED indicators and a spring-loaded mechanism, making it suitable for applications requiring visual status feedback. The connector is manufactured with high-quality materials and offers precise specifications for reliable performance.

Product Attributes

  • Brand: RCH
  • Model Series: 5631
  • Type: RJ45 Connector with LED and Ejector Tab
  • LED Color: Yellow/Green
  • Housing Color: Yellow
  • Origin: Wenzhou Ruichuan Electronics Co., Ltd.
  • Intended Use: Internal use only. Unauthorized copying is prohibited.

Technical Specifications

Part Number Material Name Plating/Color Quantity Remarks
5631-8YG02410PY30 (RC02515) (Plastic Seat) YELLOW 1
PHOSPHOR BRONZE NI/AG 8 (Pins)
LED (LED Lamp) (Yellow/Green) 2
/FE PBT (Resin/FE PBT) YELLOW 1
(Housing) NI (NI Yellow Green) 1
General Tolerance Angle Unit Paper
0.20
0.15 1030
0.25 30
2
Drawing Number Page Approval Date
RJ45 A/0 1 (Approved)
(Reviewed)
(Drawn)
(Issued)

2411220644_RCH-RC02515_C708667.pdf
